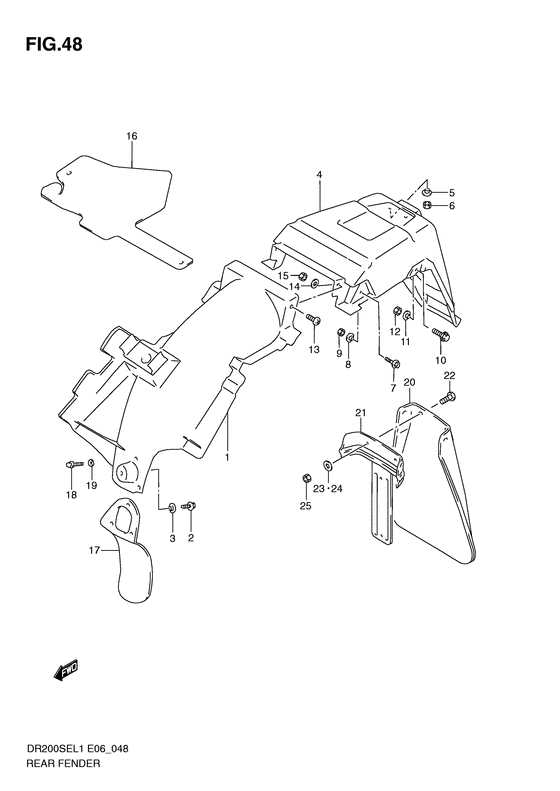

Rear fender Diagram Suzuki DR200 DR200SE
- Year
- 2011
- Model code
- DR200SEL1(E6) L1
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63110-44AB0-000 BODY,RR FENDER FRBody, rear fender front; |
63110-44AB0-000 |
from US $58.14 |
||
|
2
|
2
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
3
|
3
09169-06010-000 WASHERWasher, inner Washer; |
09169-06010-000 |
from US $1.98 |
||
|
4
|
4
63113-44AJ0-30H
BODY,RR FENDER RR
Body, rear fender rear (white); |
63113-44AJ0-30H |
— | ||
|
5
|
5
09169-06045-000 WASHER |
09169-06045-000 |
from US $0.96 |
||
| replacement | |||||
|
5
|
5
09169-06055-000 WASHER |
09169-06055-000 |
from US $0.91 |
||
|
6
|
6
08319-3106A-000 NUT |
08319-3106A-000 |
from US $1.44 |
||
|
7
|
7
09106-08099-000 BOLT(8X50)Bolt (8x50); |
09106-08099-000 |
US $22.80 |
||
|
8
|
8
09169-08037-000 WASHERWasher, inner Washer; |
09169-08037-000 |
from US $3.33 |
||
|
9
|
9
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
10
|
10
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
11
|
11
09169-06045-000 WASHER |
09169-06045-000 |
from US $0.96 |
||
| replacement | |||||
|
11
|
11
09169-06055-000 WASHER |
09169-06055-000 |
from US $0.91 |
||
|
12
|
12
08319-3106A-000 NUT |
08319-3106A-000 |
from US $1.44 |
||
|
13
|
13
02142-0616B-000 SCREWScrew, hinge Screw; |
02142-0616B-000 |
from US $2.82 |
||
|
14
|
14
09160-06084-000 WASHER(6.5X18X1.6)Washer (6.5x18x1.6); |
09160-06084-000 |
from US $0.76 |
||
|
15
|
15
08319-3106A-000 NUT |
08319-3106A-000 |
from US $1.44 |
||
|
16
|
16
63411-44AA0-000 MUDFLAP,RR FENDER FRMud flap, rear fender front Mud flap, rear fender front; |
63411-44AA0-000 |
from US $29.07 |
||
|
17
|
17
63412-44AA0-000 GUARD,RR FENDER MUD FR |
63412-44AA0-000 |
US $11.04 |
||
|
18
|
18
09229-04020-000 RIVET |
09229-04020-000 |
from US $0.91 |
||
|
19
|
19
08322-0104B-000 WASHERWasher, headlamp |
08322-0104B-000 |
from US $0.37 |
||
|
20
|
20
63311-29511-000 MUDFLAP,RR FENDER RR |
63311-29511-000 |
US $29.44 |
||
|
21
|
21
63330-44AA0-000 PLATE,RR FENDER,MUDFLAP |
63330-44AA0-000 |
US $17.96 |
||
|
22
|
22
02142-0620B-000 SCREWScrew, seat hook |
02142-0620B-000 |
from US $2.84 |
||
|
23
|
23
09169-06063-000 WASHERWasher (6.3x17x6) Washer, upper; |
09169-06063-000 |
from US $1.38 |
||
|
24
|
24
09169-06071-000 WASHERWasher, rr side Washer, lower; |
09169-06071-000 |
from US $0.96 |
||
|
25
|
25
09159-06078-000 NUTNut |
09159-06078-000 |
from US $4.13 |
||
