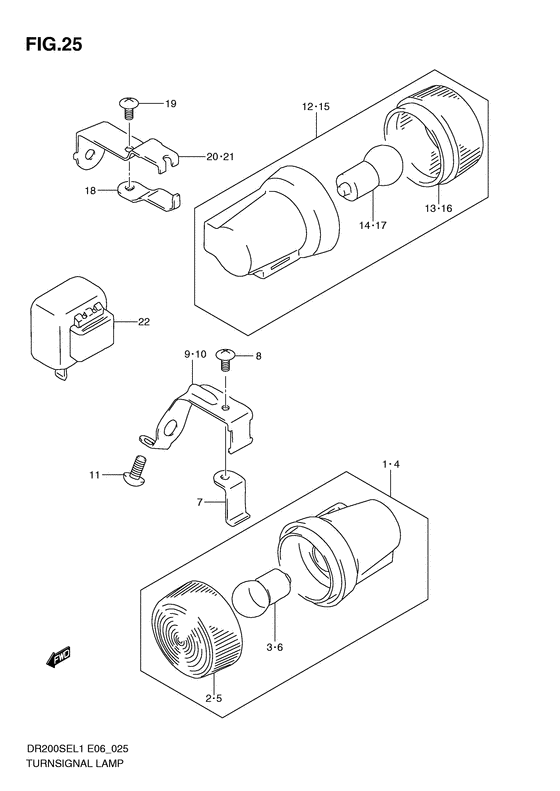

Turn signal lamp (Dr200sel1 e6) Diagram Suzuki DR200 DR200SE
- Year
- 2011
- Model code
- DR200SEL1(E6) L1
- Engine Capacity
- 200
- Model
- DR200SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35601-15D31-000
Lamp assy, front turn rh
Lamp assy, front turn rh; |
35601-15D31-000 |
— | ||
| replacement | |||||
|
1
|
1
35601-15D32-000 LAMP ASSY,FR TURNSIGNAL,RLamp assy, front turn rh; |
35601-15D32-000 |
US $41.60 |
||
|
2
|
2
35612-10D00-000 LENS,TURNSIGNALLens, turn signal; |
35612-10D00-000 |
US $7.68 |
||
|
3
|
3
09471-12162-000 BULB (12V15W)Bulb (12v,15w); |
09471-12162-000 |
US $5.67 |
||
|
4
|
4
35602-15D31-000
Lamp assy, front turn lh
Lamp assy, front turn lh; |
35602-15D31-000 |
— | ||
| replacement | |||||
|
4
|
4
35602-15D32-000 LAMP ASSY,FR TURNSIGNAL,LLamp assy, front turn lh; |
35602-15D32-000 |
US $41.60 |
||
|
5
|
5
35612-10D00-000 LENS,TURNSIGNALLens, turn signal; |
35612-10D00-000 |
US $7.68 |
||
|
6
|
6
09471-12162-000 BULB (12V15W)Bulb (12v,15w); |
09471-12162-000 |
US $5.67 |
||
|
7
|
7
35672-03D00-000 PLATE,FR TURNSIGNAL BRACKETPlate, front bracket Plate, front turn bracket; |
35672-03D00-000 |
US $3.28 |
||
|
8
|
8
02142-0406B-000 SCREWScrew, front turn Screw, front turn; |
02142-0406B-000 |
US $9.60 |
||
|
9
|
9
35671-03D10-000 BRACKET,FR TURN SIGNAL,RBracket, front rh Bracket, front turn rh; |
35671-03D10-000 |
US $5.89 |
||
|
10
|
10
35681-03D10-000 BRACKET,FR TURN SIGNAL,LBracket, front lh Bracket, front turn lh; |
35681-03D10-000 |
US $4.56 |
||
|
11
|
11
02142-0508B-000 SCREW |
02142-0508B-000 |
from US $3.04 |
||
|
12
|
12
35603-15D91-000
Lamp assy, rear turn rh
Lamp assy, rear turn rh; |
35603-15D91-000 |
— | ||
| replacement | |||||
|
12
|
12
35603-15D92-000 LAMP ASSY,RR TURNSIGNAL,RLamp assy, rear turn rh; |
35603-15D92-000 |
US $41.60 |
||
|
13
|
13
35612-10D00-000 LENS,TURNSIGNALLens, turn signal; |
35612-10D00-000 |
US $7.68 |
||
|
14
|
14
09471-12162-000 BULB (12V15W)Bulb (12v,15w); |
09471-12162-000 |
US $5.67 |
||
|
15
|
15
35604-15D61-000
Lamp assy, rear turn lh
Lamp assy, rear turn lh; |
35604-15D61-000 |
— | ||
| replacement | |||||
|
15
|
15
35604-15D62-000 LAMP ASSY,RR TURNSIGNAL,LLamp assy, rear turn lh; |
35604-15D62-000 |
US $41.60 |
||
|
16
|
16
35612-10D00-000 LENS,TURNSIGNALLens, turn signal; |
35612-10D00-000 |
US $7.68 |
||
|
17
|
17
09471-12162-000 BULB (12V15W)Bulb (12v,15w); |
09471-12162-000 |
US $5.67 |
||
|
18
|
18
35644-03D01-000 PLATE,RR TURN SIGNALPlate, rear bracket Plate, rear turn bracket; |
35644-03D01-000 |
US $3.28 |
||
|
19
|
19
02142-0406B-000 SCREWScrew, front turn |
02142-0406B-000 |
US $9.60 |
||
|
20
|
20
35621-44A00-000 BRACKET,RR TURNSIGNAL,RBracket, rear rh Bracket, rear turn rh; |
35621-44A00-000 |
US $5.19 |
||
|
21
|
21
35641-44A00-000 BRACKET,RR TURNSIGNAL,LBracket, rear lh Bracket, rear turn lh; |
35641-44A00-000 |
US $5.19 |
||
|
22
|
22
38610-10D00-000 RELAY ASSY,TURNSIGNAL |
38610-10D00-000 |
US $38.64 |
||
