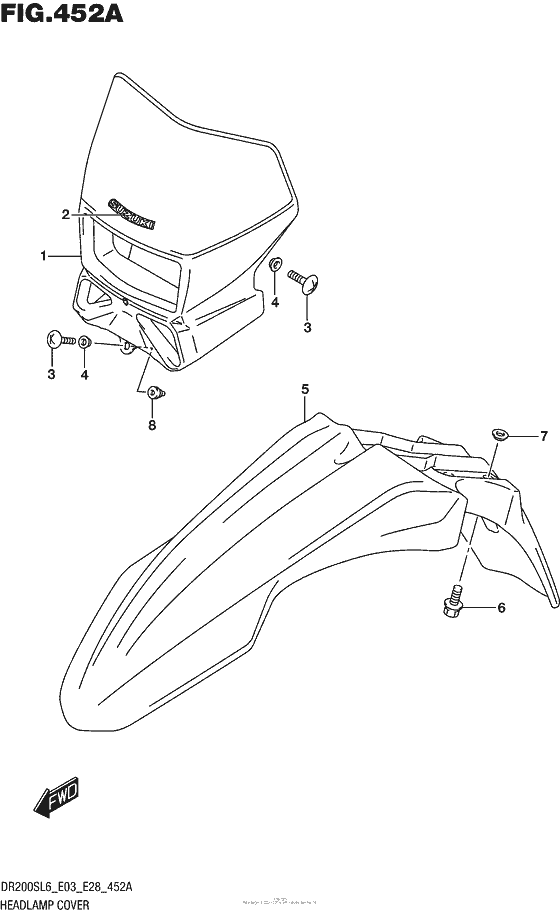

Headlamp Cover Diagram Suzuki DR200 DR200S
- Year
- 2016
- Model code
- DR200SL6
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1-1
|
1-1
51811-29F50-30H Cover,headlamp |
51811-29F50-30H |
from US $59.98 |
||
|
1-2
|
1-2
51811-29F50-019 Cover,headlamp (Black) |
51811-29F50-019 |
from US $37.84 |
||
|
2
|
2
68131-49J00-YHG EMBLEM,SUZUKI(GRAY) |
68131-49J00-YHG |
US $15.79 |
||
|
3
|
3
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
4
|
4
09169-06071-000 WASHERWasher, rr side |
09169-06071-000 |
from US $0.96 |
||
|
5-1
|
5-1
53111-49J00-YU1 FENDER,FR(YELLOW) |
53111-49J00-YU1 |
from US $72.86 |
||
|
5-2
|
5-2
53111-49J00-YUD FENDER,FRONT |
53111-49J00-YUD |
US $136.02 |
||
|
6
|
6
09116-06170-000 BOLT(6X16) |
09116-06170-000 |
from US $0.80 |
||
|
7
|
7
09169-06073-000 WASHER |
09169-06073-000 |
from US $1.67 |
||
|
8
|
8
51812-49J00-000 BOLT,HEADLAMP COVER |
51812-49J00-000 |
from US $5.67 |
