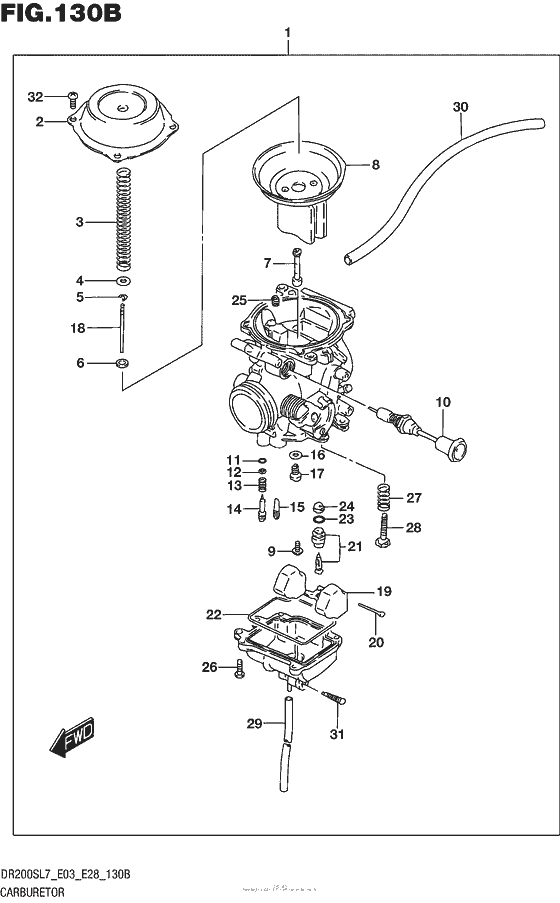

Carburetor (Dr200Sl7 E28) Diagram Suzuki DR200 DR200S
- Year
- 2017
- Model code
- DR200SL7
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13200-42AC2-000 CARBURETOR ASSY |
13200-42AC2-000 |
US $619.65 |
||
|
2
|
2
13502-42A00-000 COVER,DIAPHRAGM |
13502-42A00-000 |
from US $18.58 |
||
|
3
|
3
13417-42A00-000 SPRING |
13417-42A00-000 |
from US $5.60 |
||
|
4
|
4
13382-42A00-000 RING |
13382-42A00-000 |
from US $1.76 |
||
|
5
|
5
13394-10010-000 CLIPClip, needle |
13394-10010-000 |
from US $1.98 |
||
|
6
|
6
13387-47010-000 RINGRing |
13387-47010-000 |
from US $3.04 |
||
|
7
|
7
09494-00881-000 JET,NEEDLE(P-5M) |
09494-00881-000 |
from US $20.30 |
||
|
8
|
8
13500-42A00-000 DIAPHRAGM ASSY |
13500-42A00-000 |
from US $133.60 |
||
|
9
|
9
13602-43410-000 SCREW |
13602-43410-000 |
from US $1.62 |
||
|
10
|
10
13411-42A20-000 PLUNGER ASSY |
13411-42A20-000 |
from US $34.40 |
||
|
11
|
11
13295-29900-000
O RING,PILOT AIR SCREW
|
13295-29900-000 |
— | ||
| replacement | |||||
|
11
|
11
13295-29901-000 O-Ring, Pilot Air Screw |
13295-29901-000 |
from US $1.98 |
||
|
12
|
12
13291-29900-000 WASHERGasket |
13291-29900-000 |
from US $1.51 |
||
|
13
|
13
13268-47070-000 SPRING |
13268-47070-000 |
from US $2.82 |
||
|
14
|
14
13279-47070-000 SCREW,PILOTScrew, pilot (2 7/8) |
13279-47070-000 |
from US $9.15 |
||
|
15
|
15
09492-35008-000 JET,PILOT(35)Jet, pilot (35) |
09492-35008-000 |
from US $5.59 |
||
|
16
|
16
13382-03110-000 WASHER |
13382-03110-000 |
from US $1.67 |
||
|
17
|
17
09491-25010-000 JET,MAIN(125) |
09491-25010-000 |
from US $5.59 |
||
|
18
|
18
13383-42AC0-000 NEEDLE,JET(5D77-1) |
13383-42AC0-000 |
from US $14.70 |
||
|
19
|
19
13250-42A00-000 FLOAT |
13250-42A00-000 |
from US $20.61 |
||
|
20
|
20
13254-92311-000 PIN,FLOATPin |
13254-92311-000 |
from US $1.52 |
||
|
21
|
21
13370-44500-000 VALVE ASSY,NEEDLEValve assy, needle |
13370-44500-000 |
from US $37.84 |
||
|
22
|
22
13251-42A00-000 O RING,FLOAT CHAMBERO ring, float chamber |
13251-42A00-000 |
from US $6.51 |
||
|
23
|
23
13374-35C00-000 O RING,NEEDLE VALVE SEATO ring |
13374-35C00-000 |
from US $2.58 |
||
|
24
|
24
13376-19F00-000 FILTER |
13376-19F00-000 |
from US $5.47 |
||
|
25
|
25
09493-27001-000 JET,AIR(135)Jet, air (135) |
09493-27001-000 |
from US $7.95 |
||
|
26
|
26
02112-0412A-000 SCREW |
02112-0412A-000 |
from US $0.80 |
||
|
27
|
27
13268-37420-000 SPRING,THROTTLE SCREWSpring |
13268-37420-000 |
from US $2.72 |
||
|
28
|
28
13267-25D00-000 ADJUSTER |
13267-25D00-000 |
from US $6.66 |
||
|
29
|
29
09355-30705-600
HOSE(3X7X600)
|
09355-30705-600 |
— | ||
| replacement | |||||
|
29
|
29
09355-30001-600 Hose (7.4X3.2X135) |
09355-30001-600 |
from US $5.17 |
||
|
30
|
30
44420-44AR0-000 HOSE SET,FUEL |
44420-44AR0-000 |
US $11.95 |
||
|
31
|
31
13247-02340-000 PLUG,DRAIN |
13247-02340-000 |
from US $2.43 |
||
|
32
|
32
02112-0408A-000 SCREW |
02112-0408A-000 |
from US $0.80 |
||
