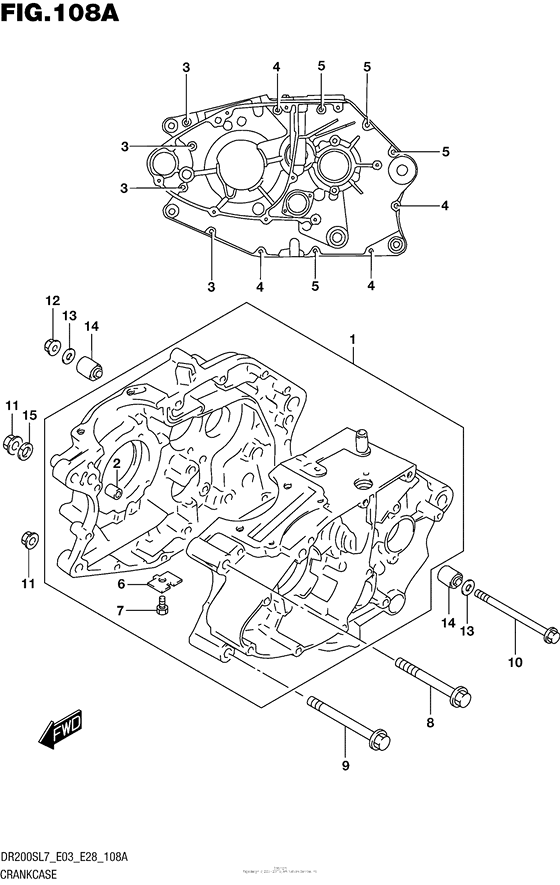

Crankcase Diagram Suzuki DR200 DR200S
- Year
- 2017
- Model code
- DR200SL7
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11300-42A80-000 Crankcase Assy |
11300-42A80-000 |
from US $601.92 |
||
|
2
|
2
04211-13189-000 PIN |
04211-13189-000 |
from US $1.19 |
||
|
3
|
3
01547-0655A-000 BOLT |
01547-0655A-000 |
from US $0.82 |
||
|
4
|
4
01547-0660A-000 Bolt |
01547-0660A-000 |
from US $0.91 |
||
|
5
|
5
01547-06757-000 BOLT |
01547-06757-000 |
from US $3.66 |
||
| replacement | |||||
|
5
|
5
09103-06522-000 BOLT(6X75) |
09103-06522-000 |
from US $4.01 |
||
|
6
|
6
11319-05200-000 PLATE,OIL GALLERY PLUGPlate, oil gallery plug |
11319-05200-000 |
from US $1.62 |
||
|
7
|
7
01500-0610A-000 BOLT |
01500-0610A-000 |
from US $3.04 |
||
|
8
|
8
09103-10370-000 BOLT(10X80) |
09103-10370-000 |
from US $9.67 |
||
|
9
|
9
09103-10374-000 BOLT(10X90) |
09103-10374-000 |
from US $8.45 |
||
|
10
|
10
09103-08138-000 BOLT(8X115)Bolt (8x115) |
09103-08138-000 |
from US $6.69 |
||
|
11
|
11
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
12
|
12
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
13
|
13
08212-08182-000 WASHER |
08212-08182-000 |
from US $0.80 |
||
|
14
|
14
09319-08032-000 BUSH(8.4X18X16) |
09319-08032-000 |
from US $13.42 |
||
|
15
|
15
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
