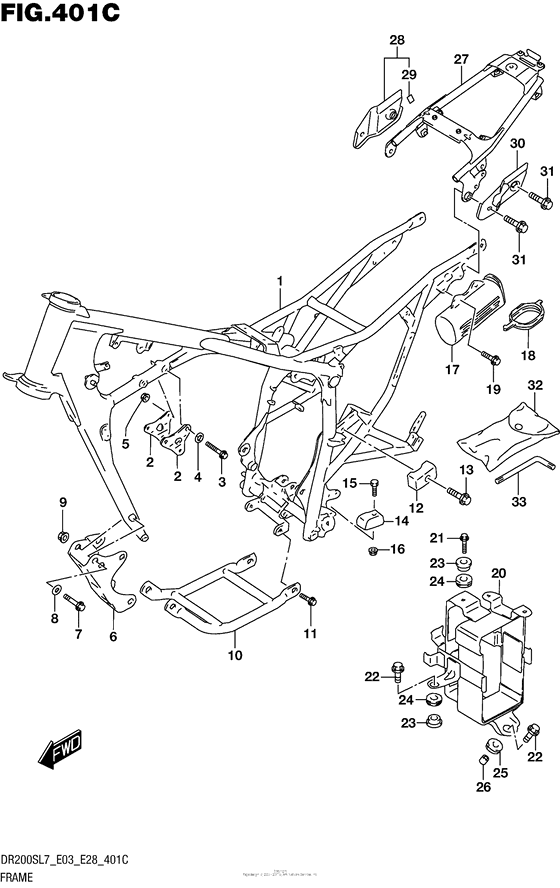

Frame (Dr200Sl7 E33) Diagram Suzuki DR200 DR200S
- Year
- 2017
- Model code
- DR200SL7
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-44AP0-YPT FRAME(GRAY) |
41100-44AP0-YPT |
from US $1,341.60 |
||
|
2
|
2
41991-42A00-291 PLATE,ENGINE MOUNT UPRPlate, mount upper (black) |
41991-42A00-291 |
from US $7.29 |
||
|
3
|
3
09103-08332-000 BOLT(8X53)Bolt, rear |
09103-08332-000 |
from US $6.26 |
||
|
4
|
4
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
5
|
5
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
6
|
6
41992-44AA1-YPT PLATE,ENG MTG LWR |
41992-44AA1-YPT |
US $32.20 |
||
|
7
|
7
09103-08293-000 BOLT(8X70) |
09103-08293-000 |
from US $5.08 |
||
|
8
|
8
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
9
|
9
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
10
|
10
42510-44AA0-YPT
PROTECTOR,ENGINE(GRAY)
|
42510-44AA0-YPT |
— | ||
|
11
|
11
01550-1016A-000 BoltPlug, oil gallery |
01550-1016A-000 |
from US $4.96 |
||
|
12
|
12
43911-44A00-000 GUIDE,CH CONTROL UPRGuide, chain control upper |
43911-44A00-000 |
from US $10.82 |
||
|
13
|
13
01580-0635B-000 BOLT |
01580-0635B-000 |
from US $5.46 |
||
|
14
|
14
43912-42AA0-000 GUIDE,CHAIN CONTROL LWRGuide, chain control lower |
43912-42AA0-000 |
from US $13.76 |
||
|
15
|
15
09128-06057-000 BOLT(6X20)Bolt (6x20) |
09128-06057-000 |
from US $1.12 |
||
|
16
|
16
08319-3106B-000 NUT |
08319-3106B-000 |
from US $1.37 |
||
|
17
|
17
41551-38201-000 HOLDER,TOOL |
41551-38201-000 |
from US $19.87 |
||
|
18
|
18
41552-37210-000 CAP,HOLDER |
41552-37210-000 |
from US $9.12 |
||
|
19
|
19
09116-06165-000 BOLT(6X16)Bolt, joint |
09116-06165-000 |
from US $4.13 |
||
|
20
|
20
41540-44AA0-000 HOLDER,BATTERYHolder, battery |
41540-44AA0-000 |
from US $66.98 |
||
|
21
|
21
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
22
|
22
09116-06047-000 BOLT(6X25)Bolt, lower |
09116-06047-000 |
US $1.38 |
||
|
23
|
23
09169-06065-000 WASHERSpacer |
09169-06065-000 |
from US $1.76 |
||
|
24
|
24
09320-08021-000
CUSHION
|
09320-08021-000 |
— | ||
| replacement | |||||
|
24
|
24
09320-08510-000 Cushion(8.5X20X8) |
09320-08510-000 |
from US $1.82 |
||
|
25
|
25
09320-10501-000 CUSHION |
09320-10501-000 |
from US $1.76 |
||
|
26
|
26
09180-06285-000 SPACER(6.5X10X9)Spacer |
09180-06285-000 |
from US $1.60 |
||
|
27
|
27
41200-49J00-000 RAIL,SEAT |
41200-49J00-000 |
from US $111.50 |
||
|
28
|
28
42650-49J00-000 PLATE,REAR FRAME,R |
42650-49J00-000 |
from US $15.46 |
||
|
29
|
29
94417-48B14-000 CUSHION |
94417-48B14-000 |
from US $1.29 |
||
|
30
|
30
42661-49J00-000 PLATE,REAR FRAME,L |
42661-49J00-000 |
from US $13.91 |
||
|
31
|
31
09106-08106-000 BOLT(8X20) |
09106-08106-000 |
from US $4.13 |
||
|
32
|
32
09800-21022-000 TOOL ASSY |
09800-21022-000 |
US $40.29 |
||
| replacement | |||||
|
32
|
32
09800-21104-000 Tool Assy |
09800-21104-000 |
from US $39.13 |
||
|
33
|
33
09816-00059-000 HEXAGON SPANNER,5Hexagon, 5 |
09816-00059-000 |
from US $3.68 |
||
