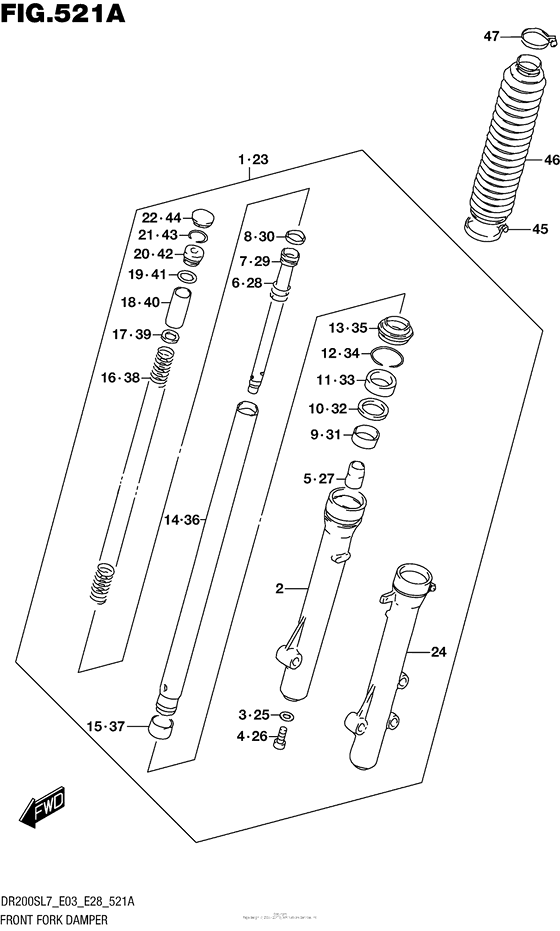

Front Fork Damper Diagram Suzuki DR200 DR200S
- Year
- 2017
- Model code
- DR200SL7
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51103-42AA0-000 DAMPER ASSY,FR FORK,RDamper assy, front fork rh |
51103-42AA0-000 |
US $558.40 |
||
|
2
|
2
51131-01A01-000 TUBE,OUTER,R |
51131-01A01-000 |
from US $193.20 |
||
|
3
|
3
51148-36011-000 GASKETGasket |
51148-36011-000 |
from US $1.98 |
||
|
4
|
4
51147-06F10-000 BoltBolt, center |
51147-06F10-000 |
from US $2.80 |
||
|
5
|
5
51195-43530-000 PIECE,OIL LOCK |
51195-43530-000 |
from US $11.04 |
||
|
6
|
6
51177-01A00-000 SPRING,REBOUNDSpring, rebound |
51177-01A00-000 |
US $3.09 |
||
|
7
|
7
51146-42AA0-000 CYLINDER |
51146-42AA0-000 |
US $47.47 |
||
|
8
|
8
51196-45200-000 RING,PISTONRing, piston |
51196-45200-000 |
from US $4.80 |
||
|
9
|
9
51152-33300-000 Bush,guideBush, guide |
51152-33300-000 |
from US $7.14 |
||
|
10
|
10
51168-30B00-000 SPACER,SEALSpacer, seal |
51168-30B00-000 |
from US $2.24 |
||
|
11
|
11
51153-19D10-000 SEAL,OILSeal, oil |
51153-19D10-000 |
from US $12.32 |
||
|
12
|
12
51156-01A00-000 RING,OIL SEAL STOPPERRing, oil seal stopper |
51156-01A00-000 |
from US $2.58 |
||
|
13
|
13
51173-01A00-000 SEAL,DUST |
51173-01A00-000 |
from US $7.14 |
||
|
14
|
14
51110-01A30-000 TUBE,INNER |
51110-01A30-000 |
from US $193.20 |
||
|
15
|
15
51121-33300-000 PISTON |
51121-33300-000 |
from US $8.27 |
||
|
16
|
16
51171-42AA0-000 SPRING,MAIN |
51171-42AA0-000 |
from US $30.18 |
||
|
17
|
17
51192-20510-000 SPRING,JOINTSeat, spring |
51192-20510-000 |
from US $2.13 |
||
|
18
|
18
51176-42AA0-000 SPACER,SPRING |
51176-42AA0-000 |
US $4.20 |
||
|
19
|
19
51181-31030-000 O RINGO ring |
51181-31030-000 |
from US $2.43 |
||
|
20
|
20
51175-47400-000 SPRING SEAT BBolt, spring |
51175-47400-000 |
from US $5.37 |
||
|
21
|
21
51169-47400-000 RING,STOPPER |
51169-47400-000 |
from US $1.35 |
||
|
22
|
22
51189-31230-000 CAP |
51189-31230-000 |
from US $5.92 |
||
|
23
|
23
51104-42AA0-000 DAMPER ASSY,FR FORK,LDamper assy, front fork lh |
51104-42AA0-000 |
US $508.14 |
||
|
24
|
24
51141-01A01-000 TUBE,OUTER,L |
51141-01A01-000 |
from US $193.20 |
||
|
25
|
25
51148-36011-000 GASKETGasket |
51148-36011-000 |
from US $1.98 |
||
|
26
|
26
51147-06F10-000 BoltBolt, center |
51147-06F10-000 |
from US $2.80 |
||
|
27
|
27
51195-43530-000 PIECE,OIL LOCK |
51195-43530-000 |
from US $11.04 |
||
|
28
|
28
51177-01A00-000 SPRING,REBOUNDSpring, rebound |
51177-01A00-000 |
US $3.09 |
||
|
29
|
29
51146-42AA0-000 CYLINDER |
51146-42AA0-000 |
US $47.47 |
||
|
30
|
30
51196-45200-000 RING,PISTONRing, piston |
51196-45200-000 |
from US $4.80 |
||
|
31
|
31
51152-33300-000 Bush,guideBush, guide |
51152-33300-000 |
from US $7.14 |
||
|
32
|
32
51168-30B00-000 SPACER,SEALSpacer, seal |
51168-30B00-000 |
from US $2.24 |
||
|
33
|
33
51153-19D10-000 SEAL,OILSeal, oil |
51153-19D10-000 |
from US $12.32 |
||
|
34
|
34
51156-01A00-000 RING,OIL SEAL STOPPERRing, oil seal stopper |
51156-01A00-000 |
from US $2.58 |
||
|
35
|
35
51173-01A00-000 SEAL,DUST |
51173-01A00-000 |
from US $7.14 |
||
|
36
|
36
51110-01A30-000 TUBE,INNER |
51110-01A30-000 |
from US $193.20 |
||
|
37
|
37
51121-33300-000 PISTON |
51121-33300-000 |
from US $8.27 |
||
|
38
|
38
51171-42AA0-000 SPRING,MAIN |
51171-42AA0-000 |
from US $30.18 |
||
|
39
|
39
51192-20510-000 SPRING,JOINTSeat, spring |
51192-20510-000 |
from US $2.13 |
||
|
40
|
40
51176-42AA0-000 SPACER,SPRING |
51176-42AA0-000 |
US $4.20 |
||
|
41
|
41
51181-31030-000 O RINGO ring |
51181-31030-000 |
from US $2.43 |
||
|
42
|
42
51175-47400-000 SPRING SEAT BBolt, spring |
51175-47400-000 |
from US $5.37 |
||
|
43
|
43
51169-47400-000 RING,STOPPER |
51169-47400-000 |
from US $1.35 |
||
|
44
|
44
51189-31230-000 CAP |
51189-31230-000 |
from US $5.92 |
||
|
45
|
45
51576-42AA0-000 BAND,BOOT LWRBand, boot lower |
51576-42AA0-000 |
from US $6.29 |
||
|
46
|
46
51571-01A00-019
BOOT
|
51571-01A00-019 |
— | ||
| replacement | |||||
|
46
|
46
51571-01A01-019 Boot |
51571-01A01-019 |
US $52.14 |
||
|
47
|
47
51575-01A00-000 BANDBand, boot upper |
51575-01A00-000 |
from US $5.19 |
||
