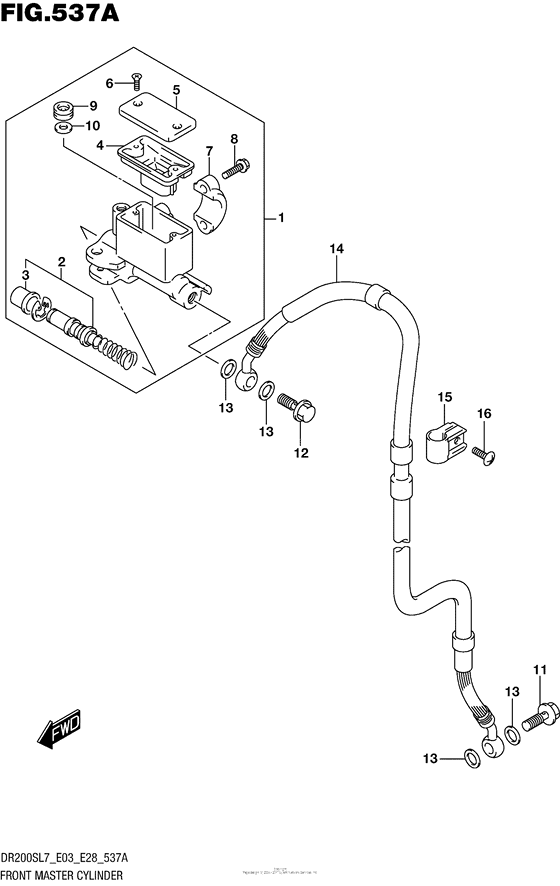

Front Master Cylinder Diagram Suzuki DR200 DR200S
- Year
- 2017
- Model code
- DR200SL7
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59600-44E30-000 CYLINDER ASSY,FR MASTERCylinder assy, front master (silver) |
59600-44E30-000 |
from US $214.40 |
||
|
2
|
2
69600-38810-000 PISTON/CUP SETPiston/cup set |
69600-38810-000 |
from US $32.68 |
||
|
3
|
3
59666-44300-000 BOOT |
59666-44300-000 |
from US $1.82 |
||
|
4
|
4
59667-44B00-000 DIAPHRAGMDiaphragm |
59667-44B00-000 |
from US $8.27 |
||
|
5
|
5
59669-03D00-000 CAP |
59669-03D00-000 |
from US $15.46 |
||
|
6
|
6
02122-04127-000 SCREW |
02122-04127-000 |
from US $0.80 |
||
|
7
|
7
59671-03D00-000 HOLDER |
59671-03D00-000 |
from US $12.59 |
||
|
8
|
8
59675-27C00-000 Bolt |
59675-27C00-000 |
from US $2.02 |
||
|
9
|
9
59748-36E00-000 SEPARATOR |
59748-36E00-000 |
from US $5.60 |
||
|
10
|
10
69744-36E00-000 RING |
69744-36E00-000 |
from US $1.60 |
||
|
11
|
11
09360-10061-000 Union bolt (10x22)Union bolt (10x22) |
09360-10061-000 |
from US $6.24 |
||
|
12
|
12
09360-10062-000 UNIONBolt, upper |
09360-10062-000 |
from US $4.64 |
||
|
13
|
13
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
14
|
14
59480-49J00-000 HOSE,FR BRAKE |
59480-49J00-000 |
from US $79.86 |
||
|
15
|
15
59245-49J00-000 CLAMP,FR BRAKE HOSE |
59245-49J00-000 |
from US $5.26 |
||
|
16
|
16
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
