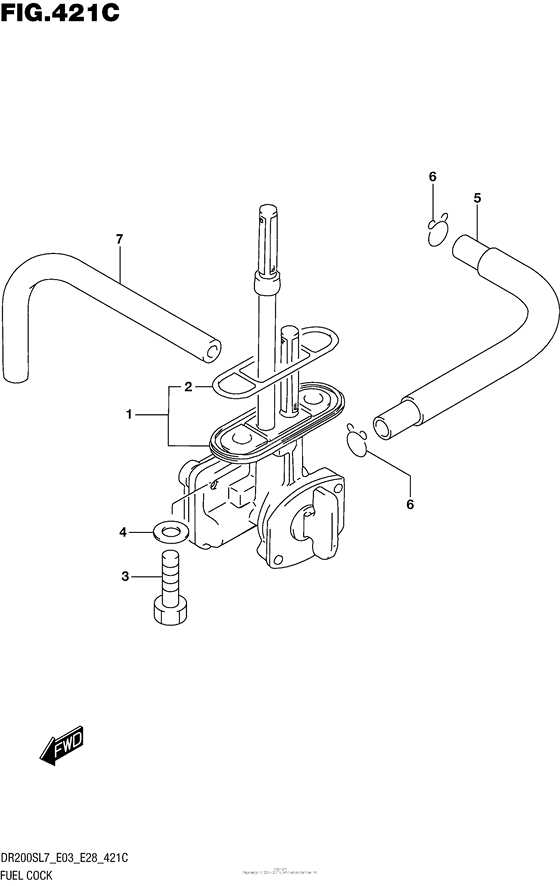

Fuel Cock (Dr200Sl7 E33) Diagram Suzuki DR200 DR200S
- Year
- 2017
- Model code
- DR200SL7
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44300-44AB0-000 COCK ASSY,FUELCock assy, fuel |
44300-44AB0-000 |
US $140.26 |
||
|
2
|
2
44348-87420-000
GASKET,JOINT
|
44348-87420-000 |
— | ||
| replacement | |||||
|
2
|
2
44348-87421-000 Gasket,joint |
44348-87421-000 |
from US $2.13 |
||
|
3
|
3
09128-06057-000 BOLT(6X20)Bolt (6x20) |
09128-06057-000 |
from US $1.12 |
||
|
4
|
4
09168-06026-000 GASKET(6.4X11.5X0.8) |
09168-06026-000 |
from US $0.91 |
||
|
5
|
5
44421-44A00-000 HOSE,FUEL |
44421-44A00-000 |
from US $12.48 |
||
|
6
|
6
09401-09403-000 CLIP |
09401-09403-000 |
from US $1.12 |
||
|
7
|
7
44425-49J00-000 HOSE,VACUUM |
44425-49J00-000 |
from US $6.62 |
||
