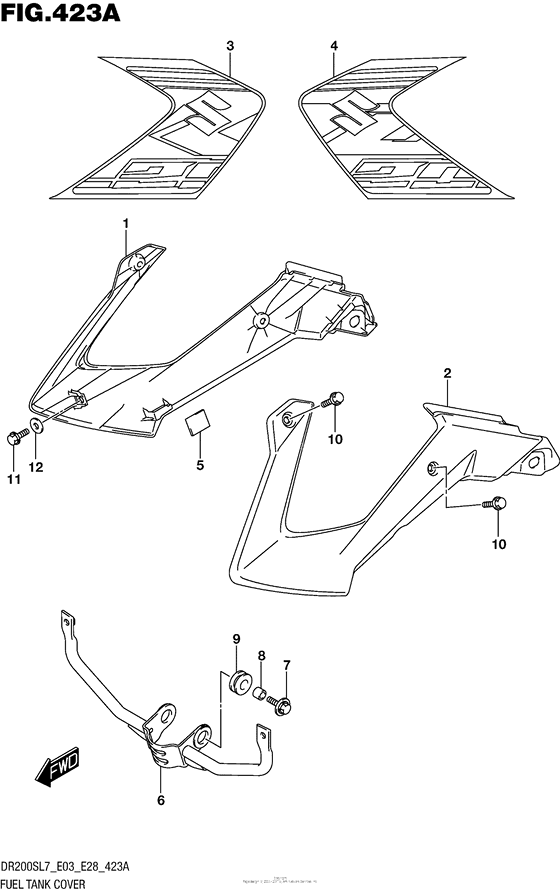

Fuel Tank Cover (019) Diagram Suzuki DR200 DR200S
- Year
- 2017
- Model code
- DR200SL7
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44271-49J00-019 COVER,FUEL TANK R |
44271-49J00-019 |
from US $23.55 |
||
|
2
|
2
44281-49J00-019 COVER,FUEL TANK L |
44281-49J00-019 |
from US $23.55 |
||
|
3
|
3
68665-49J00-BCM TAPE,FUEL TANK COVER,R |
68665-49J00-BCM |
from US $37.54 |
||
|
4
|
4
68675-49J00-BCM TAPE,FUEL TANK COVER,L |
68675-49J00-BCM |
from US $37.54 |
||
|
5
|
5
44555-33H00-000 CUSHION,TANK COVER LWR NO.1 |
44555-33H00-000 |
from US $5.37 |
||
|
6
|
6
44160-49J00-000 BRACE COMP,FUEL TANK COVER |
44160-49J00-000 |
from US $83.90 |
||
|
7
|
7
09116-06186-000 BOLT(6X25) |
09116-06186-000 |
from US $3.96 |
||
|
8
|
8
09180-06268-000 SPACER(6.5X9X13.5) |
09180-06268-000 |
from US $1.68 |
||
|
9
|
9
44512-04F00-000
CUSHION,FUEL TANK SIDE
|
44512-04F00-000 |
— | ||
| replacement | |||||
|
9
|
9
44512-04F01-000 Cushion,fuel Tank Side |
44512-04F01-000 |
from US $2.69 |
||
|
10
|
10
09139-06172-000 SCREW(6X10)Screw, bracket |
09139-06172-000 |
from US $1.60 |
||
|
11
|
11
09139-06139-000 SCREW(6X16)Screw |
09139-06139-000 |
from US $1.60 |
||
|
12
|
12
09169-06053-000 WASHER |
09169-06053-000 |
from US $0.91 |
||
