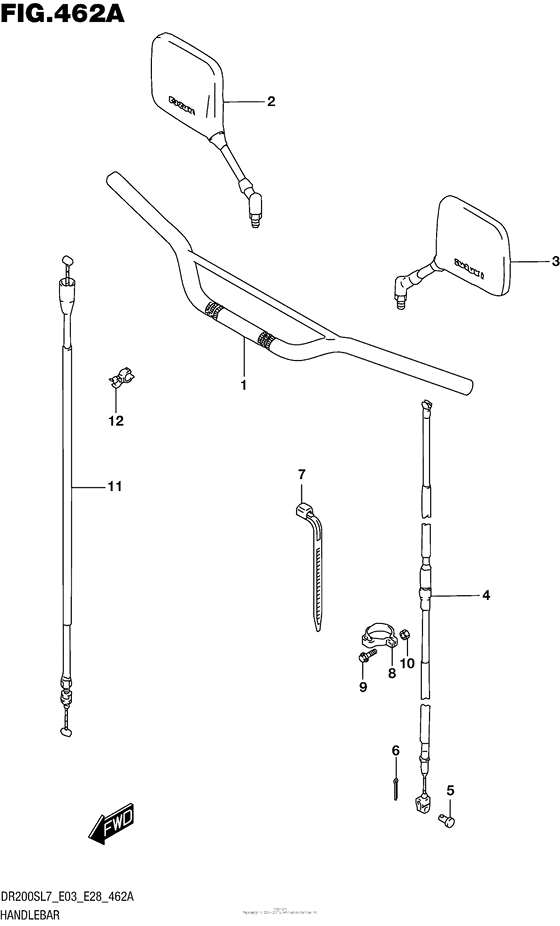

Handlebar Diagram Suzuki DR200 DR200S
- Year
- 2017
- Model code
- DR200SL7
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-49J00-20H HANDLEBAR(SILVER) |
56110-49J00-20H |
from US $87.22 |
||
|
2
|
2
56500-10042-000
MIRROR ASSY,RR VIEW,R
|
56500-10042-000 |
— | ||
| replacement | |||||
|
2
|
2
56500-10043-000 Mirror Assy,rear View,r |
56500-10043-000 |
from US $81.33 |
||
|
3
|
3
56600-10042-000
MIRROR ASSY,RR VIEW,L
|
56600-10042-000 |
— | ||
| replacement | |||||
|
3
|
3
56600-10043-000 Mirror Assy,rear View,l |
56600-10043-000 |
from US $81.33 |
||
|
4
|
4
58200-49J00-000 CABLE ASSY,CLUTCH |
58200-49J00-000 |
US $64.41 |
||
|
5
|
5
09200-06004-000 PIN(L:13)Pin |
09200-06004-000 |
from US $1.06 |
||
|
6
|
6
04111-2015A-000 PIN |
04111-2015A-000 |
from US $0.76 |
||
|
7
|
7
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
8
|
8
58285-05351-000 CLAMP,CLUTCH CABLEClamp, clutch cable no.2 |
58285-05351-000 |
from US $2.69 |
||
|
9
|
9
01500-0516B-000 Bolt |
01500-0516B-000 |
from US $0.80 |
||
|
10
|
10
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.80 |
||
|
11
|
11
58300-49J00-000 Cable assy,throttle |
58300-49J00-000 |
US $35.22 |
||
|
12
|
12
09408-00078-000 CLAMPClamp, evaporation hose |
09408-00078-000 |
from US $3.43 |
||
