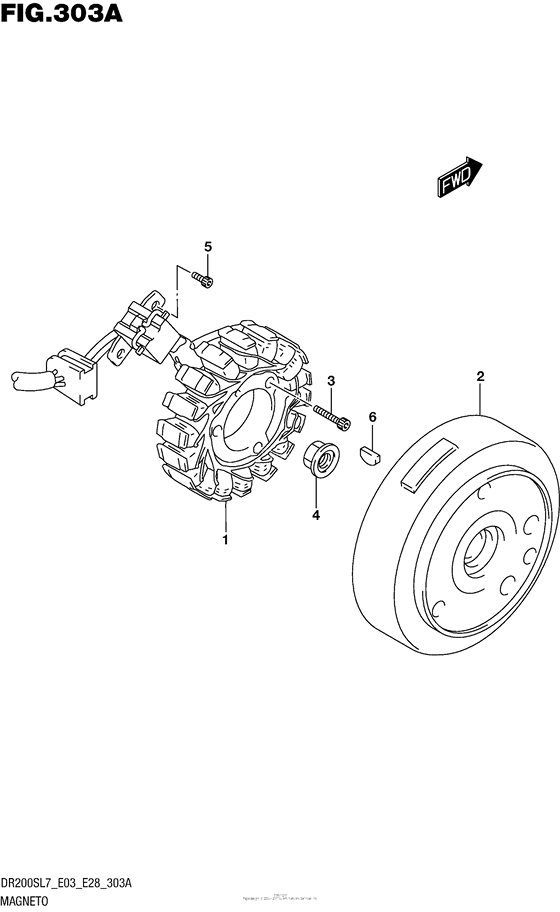

Magneto Diagram Suzuki DR200 DR200S
- Year
- 2017
- Model code
- DR200SL7
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32101-49J00-000 STATOR ASSY |
32101-49J00-000 |
from US $344.08 |
||
|
2
|
2
32102-49J00-000 ROTOR ASSY |
32102-49J00-000 |
from US $327.52 |
||
|
3
|
3
07130-0525A-000 BOLT |
07130-0525A-000 |
from US $3.59 |
||
|
4
|
4
31792-26F10-000 NUT,MAGNETO ROTORNut (m12x1.25) |
31792-26F10-000 |
from US $1.77 |
||
|
5
|
5
07130-0512A-000 BOLTBolt, pulser/clamp |
07130-0512A-000 |
from US $0.91 |
||
|
6
|
6
09420-03008-000 KEY |
09420-03008-000 |
from US $5.07 |
