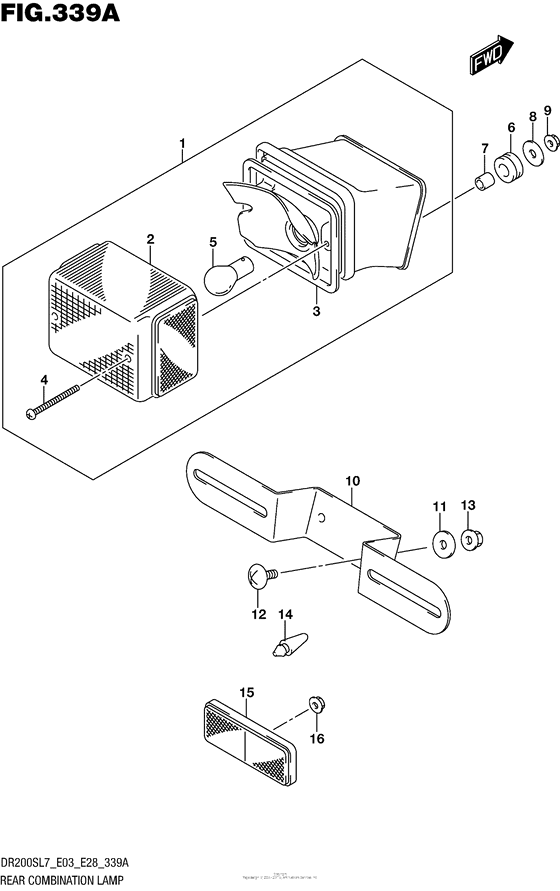

Rear Combination Lamp (Dr200Sl7 E03) Diagram Suzuki DR200 DR200S
- Year
- 2017
- Model code
- DR200SL7
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35710-29F30-000 LAMP ASSY,RR COMBINATION |
35710-29F30-000 |
from US $109.66 |
||
|
2
|
2
35712-42A30-000 LENS |
35712-42A30-000 |
US $69.16 |
||
|
3
|
3
35713-14D30-000 GASKET,LENS |
35713-14D30-000 |
from US $3.83 |
||
|
4
|
4
09125-04501-000 SCREW(4X45) |
09125-04501-000 |
from US $5.07 |
||
|
5
|
5
09471-12128-000 BULB(12V21/5W,BF141-49642A) |
09471-12128-000 |
from US $7.20 |
||
| replacement | |||||
|
5
|
5
ZK690-A4875-B00 Bulb (12V 21/5W) A4875B, STANLEY |
ZK690-A4875-B00 |
US $2.74 |
||
|
6
|
6
09320-10501-000 CUSHION |
09320-10501-000 |
from US $1.76 |
||
|
7
|
7
09180-06310-000 SPACER(6.5X10X10)Spacer (6.8x10x10) |
09180-06310-000 |
from US $1.67 |
||
|
8
|
8
09160-06109-000 WASHER(6.5X18X1.6) |
09160-06109-000 |
from US $0.80 |
||
|
9
|
9
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
10
|
10
35927-49J00-000 BRACKET,LICENSE PLATE |
35927-49J00-000 |
from US $6.92 |
||
|
11
|
11
09160-06129-000 WASHER(6.5X16X1) |
09160-06129-000 |
from US $0.96 |
||
|
12
|
12
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
13
|
13
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
14
|
14
09321-06030-000 CUSHION |
09321-06030-000 |
from US $1.77 |
||
|
15
|
15
35970-07F01-000 REFLECTOR ASSY,RR |
35970-07F01-000 |
from US $10.42 |
||
|
16
|
16
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.77 |
||
