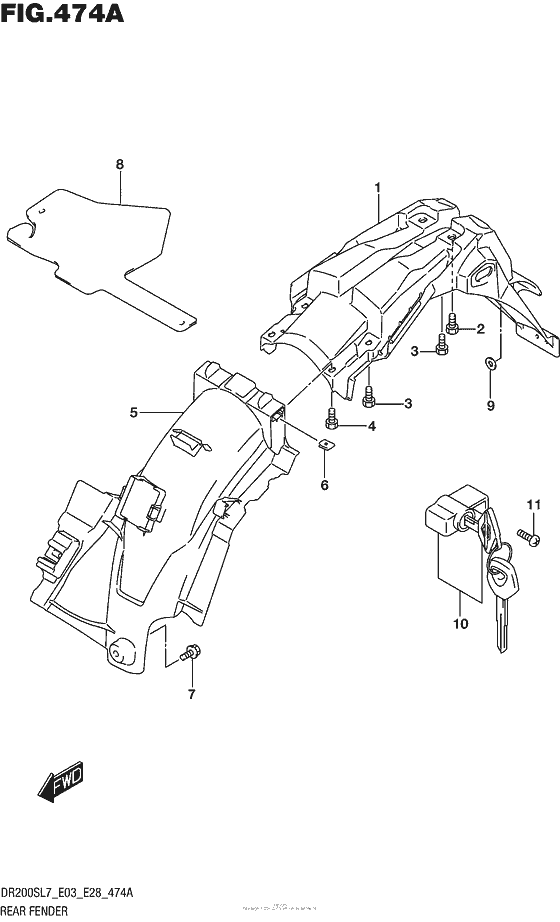

Rear Fender Diagram Suzuki DR200 DR200S
- Year
- 2017
- Model code
- DR200SL7
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63113-49J00-000 FENDER,REAR REAR |
63113-49J00-000 |
from US $68.08 |
||
|
2
|
2
09111-06089-000 BOLT(6X16) |
09111-06089-000 |
from US $0.91 |
||
|
3
|
3
09111-06107-000 BOLT(6X12) |
09111-06107-000 |
from US $0.76 |
||
|
4
|
4
09139-05074-000 BOLT(5X13)Screw |
09139-05074-000 |
from US $1.22 |
||
|
5
|
5
63111-49J00-000 FENDER,RR FR |
63111-49J00-000 |
from US $30.73 |
||
|
6
|
6
09148-05052-000 NUT |
09148-05052-000 |
from US $1.22 |
||
|
7
|
7
09111-06107-000 BOLT(6X12) |
09111-06107-000 |
from US $0.76 |
||
|
8
|
8
63411-44AA0-000 MUDFLAP,RR FENDER FRMud flap, rear fender front |
63411-44AA0-000 |
from US $29.07 |
||
|
9
|
9
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
10
|
10
95700-41821-000 LOCK SET,HELMET |
95700-41821-000 |
from US $76.91 |
||
|
11
|
11
09139-06048-000 SCREW(6X20)Bolt |
09139-06048-000 |
from US $2.94 |
