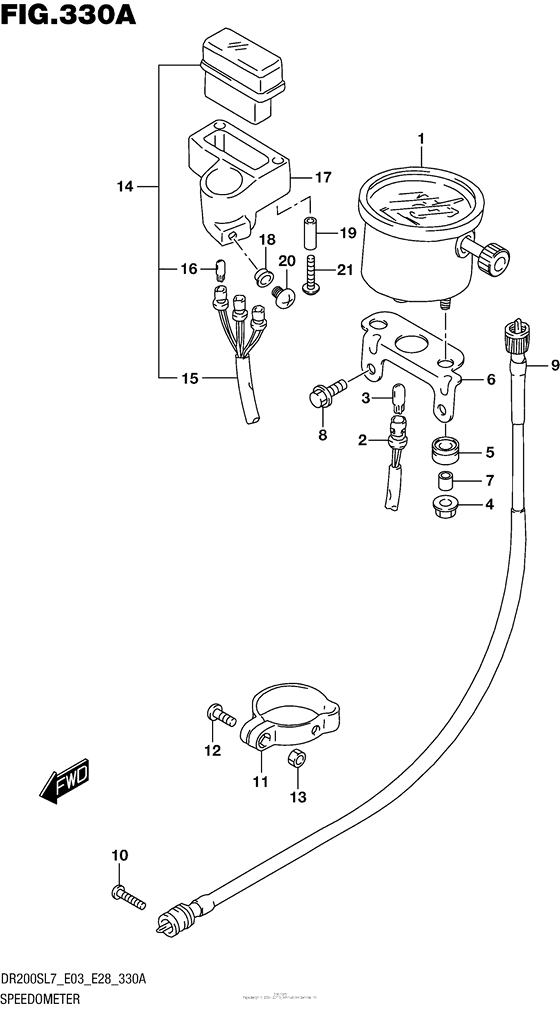

Speedometer (Dr200Sl7 E03) Diagram Suzuki DR200 DR200S
- Year
- 2017
- Model code
- DR200SL7
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34110-49J10-000 Speedometer |
34110-49J10-000 |
from US $263.12 |
||
|
2
|
2
34170-49J00-000 CORD ASSY |
34170-49J00-000 |
from US $17.52 |
||
|
3
|
3
09471-12108-000 BULB(12V1.7W,T6.5)Bulb (t6.5,1.7w) |
09471-12108-000 |
from US $2.13 |
||
|
4
|
4
09159-05049-000 NUT |
09159-05049-000 |
from US $0.80 |
||
|
5
|
5
34955-48G00-000 CUSHION |
34955-48G00-000 |
from US $5.81 |
||
|
6
|
6
34950-49J00-000 BRACKET,SPEEDOMETER |
34950-49J00-000 |
from US $6.29 |
||
|
7
|
7
09180-05065-000 SPACER(5.4X7X8.5) |
09180-05065-000 |
from US $2.89 |
||
|
8
|
8
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
9
|
9
34910-44A30-000 CABLE ASSY,SPEEDOMETER |
34910-44A30-000 |
from US $22.88 |
||
|
10
|
10
02112-0516A-000 SCREW |
02112-0516A-000 |
from US $0.80 |
||
|
11
|
11
34938-01A00-000 CLAMP,SPEEDOMETER CABLE |
34938-01A00-000 |
from US $6.15 |
||
|
12
|
12
02112-0516A-000 SCREW |
02112-0516A-000 |
from US $0.80 |
||
|
13
|
13
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.80 |
||
|
14
|
14
36380-42A00-000 BOX ASSY,PILOT LAMP |
36380-42A00-000 |
from US $85.74 |
||
|
15
|
15
36394-32E00-000 SOCKET & CORD |
36394-32E00-000 |
from US $24 |
||
|
16
|
16
09471-12118-000 BULB(13.5V,2W,A7427)Bulb (13.5v,2w) |
09471-12118-000 |
from US $2.13 |
||
|
17
|
17
36382-08D01-000 HOLDER,PILOT BOX |
36382-08D01-000 |
from US $10.30 |
||
|
18
|
18
09169-05024-000 WASHER |
09169-05024-000 |
from US $3.25 |
||
|
19
|
19
09180-04024-000 SPACER(4.5X6.5X25) |
09180-04024-000 |
from US $1.82 |
||
|
20
|
20
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.76 |
||
|
21
|
21
03511-1435B-000 SCREW |
03511-1435B-000 |
from US $0.77 |
