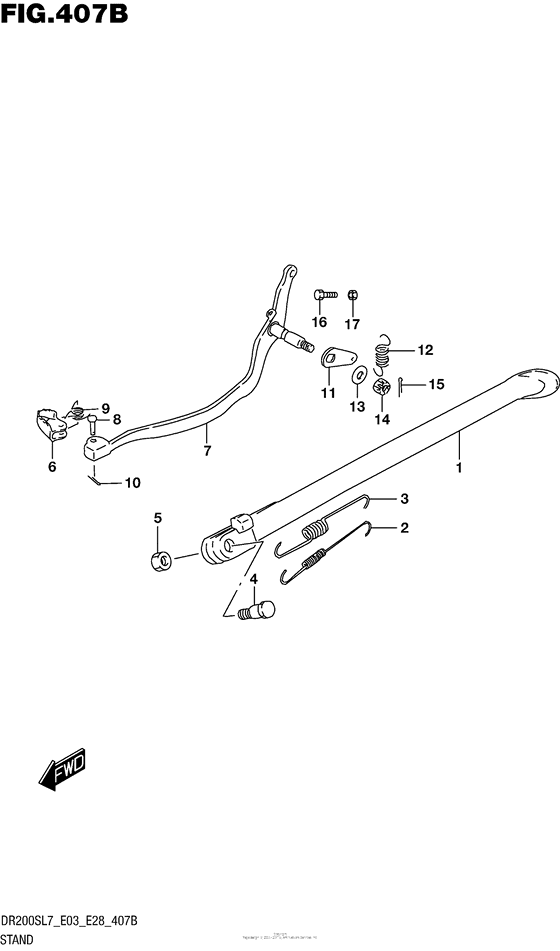

Stand (Dr200Sl7 E28) Diagram Suzuki DR200 DR200S
- Year
- 2017
- Model code
- DR200SL7
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42310-44A60-019 STAND,PROP(BLACK) |
42310-44A60-019 |
from US $48.58 |
||
|
2
|
2
42421-49J00-000 SPRING,PROP STAND INNER |
42421-49J00-000 |
from US $4.86 |
||
|
3
|
3
42422-49J00-000 SPRING,PROP STAND OUTER |
42422-49J00-000 |
from US $8.32 |
||
|
4
|
4
09111-10047-000 BOLT(10X30) |
09111-10047-000 |
from US $1.76 |
||
|
5
|
5
09159-10097-000 NUT |
09159-10097-000 |
from US $2.56 |
||
|
6
|
6
43110-14130-000 PEDAL,BRAKE |
43110-14130-000 |
from US $7.95 |
||
|
7
|
7
43120-44A12-000 ARM,BRAKE PEDALArm, brake pedal |
43120-44A12-000 |
from US $35.70 |
||
|
8
|
8
09200-06038-000 PIN |
09200-06038-000 |
from US $3.25 |
||
|
9
|
9
09444-11005-000 SPRING |
09444-11005-000 |
from US $4.34 |
||
|
10
|
10
04111-2015A-000 PIN |
04111-2015A-000 |
from US $0.76 |
||
|
11
|
11
43128-38200-000 ARM,BRAKE RETURN SPRINGArm, brake return spring |
43128-38200-000 |
from US $1.62 |
||
|
12
|
12
09443-14002-000 SPRINGSpring |
09443-14002-000 |
from US $3.25 |
||
|
13
|
13
08211-08202-000 WASHER |
08211-08202-000 |
from US $3.47 |
||
|
14
|
14
08314-4008B-000 NUT |
08314-4008B-000 |
from US $1.06 |
||
|
15
|
15
04111-2020A-000 PINCotter pin, rod end |
04111-2020A-000 |
from US $0.76 |
||
|
16
|
16
09100-06009-000 BOLT(6X23)Bolt |
09100-06009-000 |
from US $1.22 |
||
|
17
|
17
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
