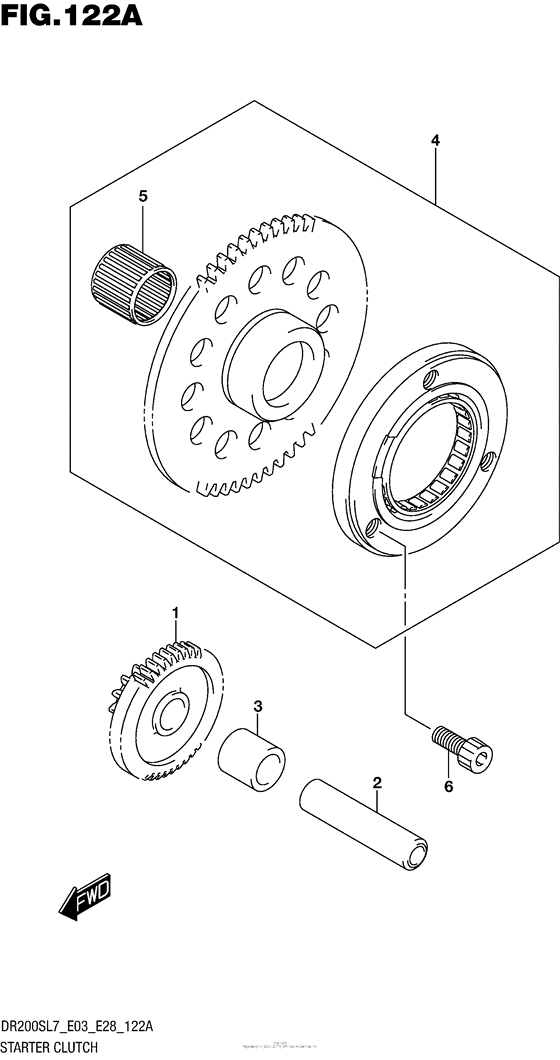

Starter Clutch Diagram Suzuki DR200 DR200S
- Year
- 2017
- Model code
- DR200SL7
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12611-42A03-000 GEAR,STARTER IDLE |
12611-42A03-000 |
from US $54.40 |
||
|
2
|
2
09206-13003-000 PIN(7.4X13X56)Pin |
09206-13003-000 |
from US $18.02 |
||
|
3
|
3
09180-13006-000 SPACER(13X19X19) |
09180-13006-000 |
from US $6.70 |
||
|
4
|
4
12600-35870-000
CLUCH SET,STARTER
|
12600-35870-000 |
— | ||
| replacement | |||||
|
4
|
4
12600-35880-000 Clutch Set, Starter |
12600-35880-000 |
from US $144.40 |
||
|
5
|
5
09263-22031-000 BEARING(22X28X16)Bearing |
09263-22031-000 |
US $17.66 |
||
|
6
|
6
09106-08190-000 BOLT(8X16) |
09106-08190-000 |
from US $3.62 |
||
