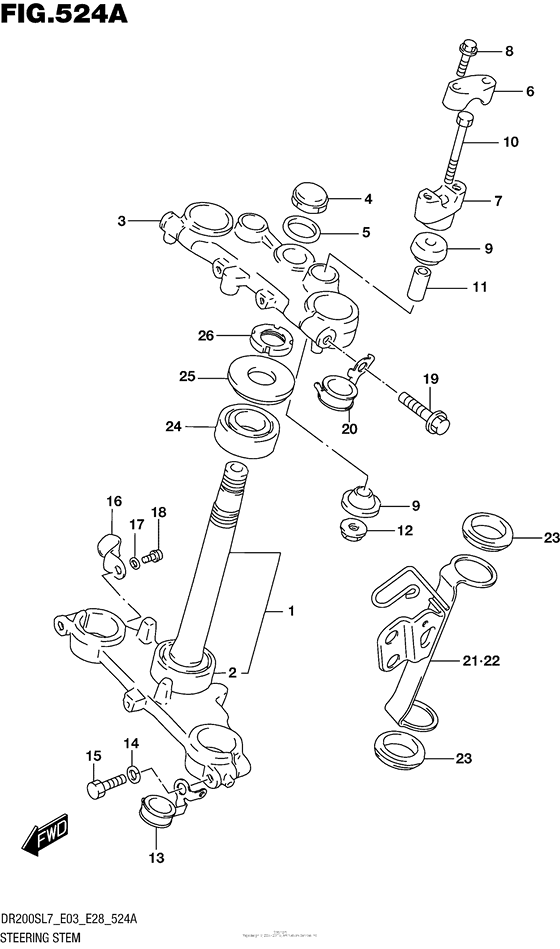

Steering Stem Diagram Suzuki DR200 DR200S
- Year
- 2017
- Model code
- DR200SL7
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-42AA0-000 STEM,STEERING |
51410-42AA0-000 |
from US $294.40 |
||
|
2
|
2
09265-30009-000
BEARING(30X55X17)
|
09265-30009-000 |
— | ||
| replacement | |||||
|
2
|
2
09265-30034-000 Bearing |
09265-30034-000 |
from US $31.92 |
||
|
3
|
3
51311-42AA0-291 HEAD,STEERING STEM(BLACK) |
51311-42AA0-291 |
from US $152.72 |
||
|
4
|
4
51353-24B00-000 NUT,CAPNut, cap |
51353-24B00-000 |
from US $16.80 |
||
|
5
|
5
51354-14D00-000 WASHER |
51354-14D00-000 |
from US $6.66 |
||
|
6
|
6
56211-27200-291 HOLDER,HANDLE UPRClamp, handlebar (black) |
56211-27200-291 |
from US $7.60 |
||
|
7
|
7
56221-42A00-000 HOLDER,HANDLE UNDER |
56221-42A00-000 |
from US $21.53 |
||
|
8
|
8
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
9
|
9
56240-42A00-000 RUBBER,HANDLE HOLDERRubber, handle holder |
56240-42A00-000 |
US $22.40 |
||
|
10
|
10
56321-27E00-000 BOLT,HANDLE HOLDER(10X70)Bolt, lower holder |
56321-27E00-000 |
from US $6.59 |
||
|
11
|
11
56243-42A00-000 SPACER |
56243-42A00-000 |
from US $2.72 |
||
|
12
|
12
51353-42AA0-000 NUT,HANDLE HOLDER |
51353-42AA0-000 |
from US $2.13 |
||
|
13
|
13
59270-49J00-000 CLAMP |
59270-49J00-000 |
from US $11.70 |
||
|
14
|
14
08321-21115-000 WASHER |
08321-21115-000 |
US $14.40 |
||
|
15
|
15
51451-42A00-000 BOLT,INNER TUBE FITTING |
51451-42A00-000 |
from US $2.58 |
||
|
16
|
16
51452-05130-000 CLIPClamp |
51452-05130-000 |
from US $2.58 |
||
|
17
|
17
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
18
|
18
02112-06087-000 SCREW |
02112-06087-000 |
from US $0.77 |
||
|
19
|
19
01550-1045B-000 Bolt |
01550-1045B-000 |
from US $1.28 |
||
|
20
|
20
59260-49J00-000 CLAMP |
59260-49J00-000 |
from US $10.05 |
||
|
21
|
21
51530-49J00-000 BRACKET,HEAD LAMP HSG,R |
51530-49J00-000 |
from US $34.04 |
||
|
22
|
22
51540-49J00-000 BRACKET,HEAD LAMP HSG,L |
51540-49J00-000 |
from US $34.04 |
||
|
23
|
23
51553-34280-000 CUSHION,HEADLAMP HSG BRACKET |
51553-34280-000 |
from US $2.58 |
||
|
24
|
24
09265-25019-000 BEARING(25X47X15)Bearing (25x47x15) |
09265-25019-000 |
from US $25.84 |
||
|
25
|
25
51643-01B10-000 SEAL,STEERING UPR DUSTSeal, steering upper dust |
51643-01B10-000 |
from US $5.19 |
||
|
26
|
26
51631-08D30-000 NUT,STEERINGNut, steering |
51631-08D30-000 |
from US $8.76 |
||
