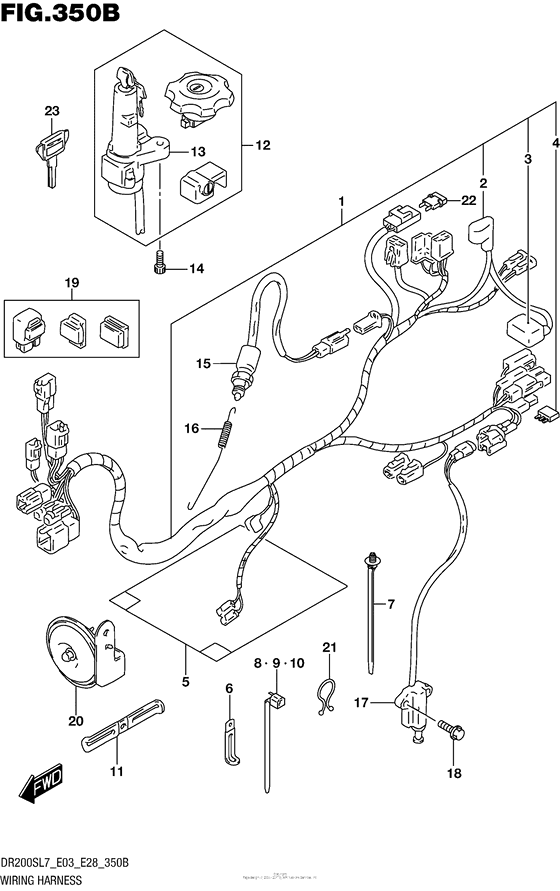

Wiring Harness (Dr200Sl7 E28) Diagram Suzuki DR200 DR200S
- Year
- 2017
- Model code
- DR200SL7
- Sales region
- USA/ Canada
- Engine Capacity
- 200
- Model
- DR200S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-49J00-000 HARNESS,WIRING |
36610-49J00-000 |
from US $237.36 |
||
|
2
|
2
31861-10D00-000 CAP,STARTER RELAYCap, starter relay |
31861-10D00-000 |
from US $4.20 |
||
|
3
|
3
33624-10D00-000 CAP,BATTERY PLUSCap, battery plus term |
33624-10D00-000 |
from US $2.40 |
||
|
4
|
4
36611-38A10-000 DIODE |
36611-38A10-000 |
from US $7.14 |
||
|
5
|
5
36618-15D20-000
COVER,WIRING HARNESS
|
36618-15D20-000 |
— | ||
| replacement | |||||
|
5
|
5
36618-15D21-000 Cover,wiring Harness |
36618-15D21-000 |
from US $9.12 |
||
|
6
|
6
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
| replacement | |||||
|
6
|
6
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
7
|
7
09407-17403-000 CLAMP(L:154)Clamp (l:170) |
09407-17403-000 |
from US $2.88 |
||
|
8
|
8
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
9
|
9
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
10
|
10
09407-19401-000 CLAMP(L:190) |
09407-19401-000 |
from US $4.17 |
||
|
11
|
11
36651-05301-000 CLAMP,STARTER MOTOR LEADClamp, starter motor reed |
36651-05301-000 |
US $2.39 |
||
|
12
|
12
37100-42840-000
LOCK SET
|
37100-42840-000 |
— | ||
| replacement | |||||
|
12
|
12
37100-42841-000 Lock Set |
37100-42841-000 |
US $284.55 |
||
|
13
|
13
37100-42A01-000 LOCK ASSY,STEERINGLock assy, ignition |
37100-42A01-000 |
from US $82.84 |
||
|
14
|
14
07130-0616B-000 BOLT |
07130-0616B-000 |
from US $0.91 |
||
|
15
|
15
37740-31D00-000 SWITCH ASSY,STOP LAMPSwitch assy, stop lamp |
37740-31D00-000 |
from US $20.80 |
||
|
16
|
16
09443-06064-000 SPRING |
09443-06064-000 |
from US $7.09 |
||
|
17
|
17
37840-06G00-000
Switch Assy,Side Stand
|
37840-06G00-000 |
— | ||
| replacement | |||||
|
17
|
17
37840-06G01-000 Switch Assy,Side Stand |
37840-06G01-000 |
from US $55.57 |
||
|
18
|
18
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
19
|
19
38740-24X50-000 RELAY ASSYRelay, neutral start |
38740-24X50-000 |
from US $25.08 |
||
|
20
|
20
38500-44B00-000 HORN ASSY |
38500-44B00-000 |
from US $57.76 |
||
|
21
|
21
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) |
09408-00012-000 |
from US $3.37 |
||
|
22
|
22
09481-20101-000 FUSE(20A) |
09481-20101-000 |
from US $3.35 |
||
|
23-1
|
23-1
37146-03A00-000 KEY,BLANK(TYPE:C) |
37146-03A00-000 |
from US $9.68 |
||
|
23-2
|
23-2
37146-03A10-000 KEY,BLANK(TYPE:D) |
37146-03A10-000 |
from US $8.36 |
||
|
23-3
|
23-3
37146-03A20-000 KEY,BLANK(TYPE:E) |
37146-03A20-000 |
from US $9.68 |
||
|
23-4
|
23-4
37146-03A30-000 KEY,BLANK(TYPE:F) |
37146-03A30-000 |
from US $9.68 |
||
