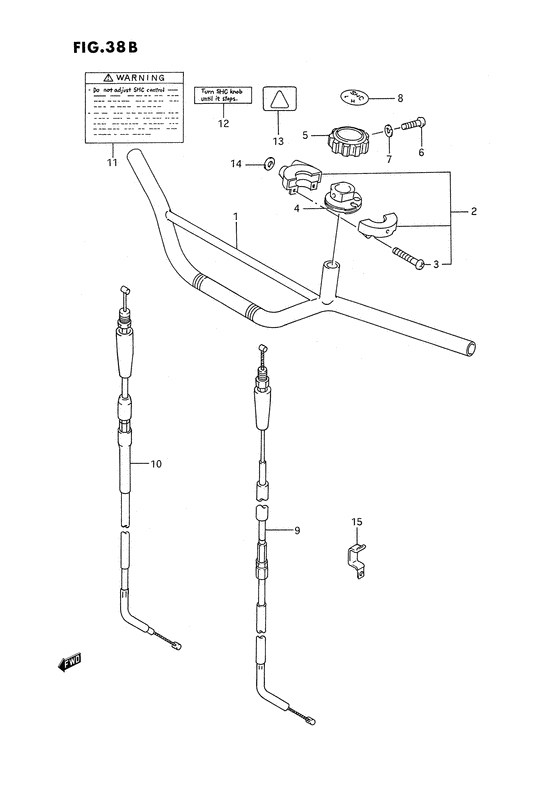

Handlebar (Dr350shn/shp/shr) Diagram Suzuki DR350
- Year
- 1993
- Model code
- DR350SP(E2) P
- Engine Capacity
- 350
- Model
- DR350S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-14D41-291
HANDLEBAR
Handlebar (black); |
56110-14D41-291 |
— | ||
|
2
|
2
57100-15D00-000
Case assy,high control
|
57100-15D00-000 |
— | ||
|
3
|
3
02112-05205-000
Screw 5x20
|
02112-05205-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-0520B-000 SCREW |
02112-0520B-000 |
from US $0.77 |
||
|
4
|
4
57841-15D00-000
Rotor,high control
|
57841-15D00-000 |
— | ||
|
5
|
5
57851-15D00-000
Knob,high control
|
57851-15D00-000 |
— | ||
|
6
|
6
02112-05105-000
Screw 5x10
Dr350shn/shp |
02112-05105-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0510A-000 SCREWDr350shn/shp |
02112-0510A-000 |
from US $0.76 |
||
|
6
|
6
02112-05103-000
Bolt
Screw; Dr350shr |
02112-05103-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0510A-000 SCREWScrew; Dr350shr |
02112-0510A-000 |
from US $0.76 |
||
|
7
|
7
08321-21055-000
Washer
Dr350shn/shp |
08321-21055-000 |
— | ||
| replacements | |||||
|
7
|
7
08321-0105B-000 WASHER,LOCKDr350shn/shp |
08321-0105B-000 |
from US $0.77 |
||
|
7
|
7
08321-0105A-000 WASHER,LOCKDr350shn/shp |
08321-0105A-000 |
from US $0.76 |
||
|
7
|
7
08321-01053-000
Lock washer
Washer; Dr350shr |
08321-01053-000 |
— | ||
| replacements | |||||
|
7
|
7
08321-0105B-000 WASHER,LOCKWasher; Dr350shr |
08321-0105B-000 |
from US $0.77 |
||
|
7
|
7
08321-0105A-000 WASHER,LOCKWasher; Dr350shr |
08321-0105A-000 |
from US $0.76 |
||
|
8
|
8
68861-15D00-000
Emblem,high control
|
68861-15D00-000 |
— | ||
|
9
|
9
58960-15D00-000
Cable assy,high control no.1
|
58960-15D00-000 |
— | ||
|
10
|
10
58970-15D00-000
Cable assy,high control no.2
|
58970-15D00-000 |
— | ||
|
11
|
11
68394-15D41-000
Label,warning high control
Dr350shn e18 |
68394-15D41-000 |
— | ||
|
11
|
11
68394-15D31-000
Label,warning high control
E4,e21 |
68394-15D31-000 |
— | ||
|
11
|
11
68394-15D21-000
Label,warning high control
E22, dr350shp e18 |
68394-15D21-000 |
— | ||
|
12
|
12
68395-15D10-000
Label,warning,knob shc
Dr350shn e18 |
68395-15D10-000 |
— | ||
|
12
|
12
68395-15D30-000
Label,warning,knob shc
E4,e21 |
68395-15D30-000 |
— | ||
|
12
|
12
68395-15D20-000
Label,warning,knob shc
E22, dr350shp e18 |
68395-15D20-000 |
— | ||
|
13
|
13
68862-15D00-000
Label,high control
|
68862-15D00-000 |
— | ||
|
14
|
14
09160-10082-000 WASHER(10.5X19X2)Washer Washer (10.5x19x1.0); |
09160-10082-000 |
from US $0.96 |
||
|
15
|
15
09403-10307-000
CLAMP
|
09403-10307-000 |
— | ||
| replacement | |||||
|
15
|
15
09403-10328-000 Clamp |
09403-10328-000 |
US $13.20 |
||
