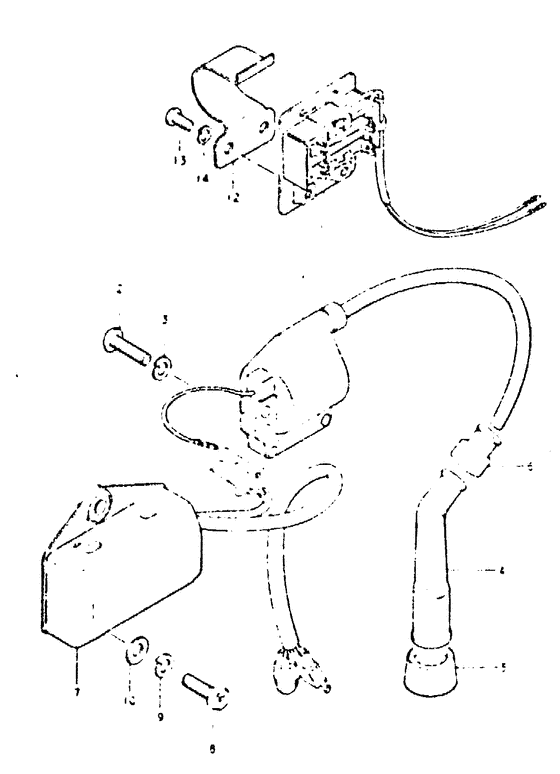

Electrical Diagram Suzuki DR400
- Year
- 1996
- Model code
- DR400ST(T/X) T
- Engine Capacity
- 400
- Model
- DR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33410-43010-000
Coil assy, ignition
|
33410-43010-000 |
— | ||
| replacement | |||||
|
1
|
1
33410-43011-000
COIL ASSY,IGNITION
|
33410-43011-000 |
— | ||
|
2
|
2
02112-06208-000
Screw
|
02112-06208-000 |
— | ||
| replacement | |||||
|
2
|
2
02112-06207-000 SCREW |
02112-06207-000 |
from US $0.80 |
||
|
3
|
3
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
3
|
3
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
4
|
4
33510-45010-000 CAP ASSY,SPARK PLUGCap, spark plug Cap, spark plug; |
33510-45010-000 |
from US $28.12 |
||
|
5
|
5
33541-32410-000
Seal, plug
|
33541-32410-000 |
— | ||
| replacement | |||||
|
5
|
5
33541-38210-000 SEAL,SPARK PLUG |
33541-38210-000 |
US $7.48 |
||
|
6
|
6
33542-98000-000
Seal, hightension coad
|
33542-98000-000 |
— | ||
| replacement | |||||
|
6
|
6
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord |
33542-38B00-000 |
from US $1.52 |
||
|
7
|
7
32900-32450-000
CDI UNIT
|
32900-32450-000 |
— | ||
|
8
|
8
02112-06208-000
Screw
|
02112-06208-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-06207-000 SCREW |
02112-06207-000 |
from US $0.80 |
||
|
9
|
9
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
10
|
10
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
10
|
10
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
