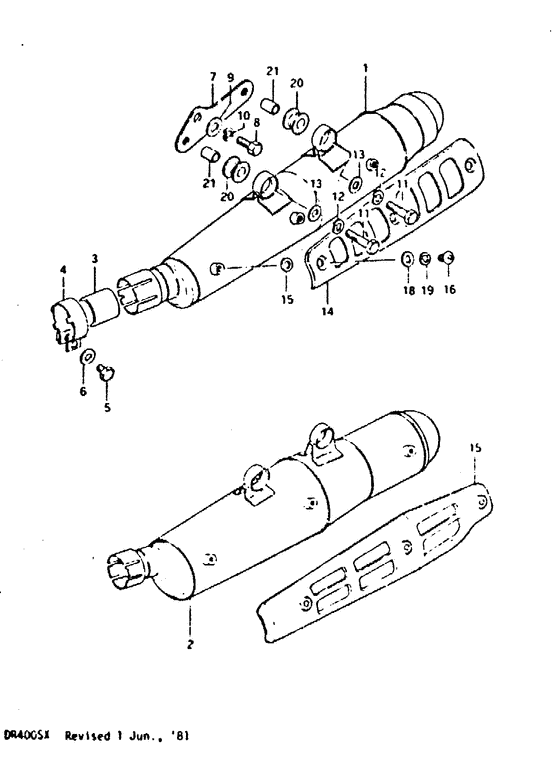

Second muffler Diagram Suzuki DR400
- Year
- 1996
- Model code
- DR400ST(T/X) T
- Engine Capacity
- 400
- Model
- DR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14330-37210-000
Muffler, 2nd
To 14330-37220 |
14330-37210-000 |
— | ||
| replacement | |||||
|
1
|
1
14330-37221-000
MUFFLER ASSY,2ND
To 14330-37220 |
14330-37221-000 |
— | ||
|
3
|
3
14771-32400-000
Connector, 2nd muffer
|
14771-32400-000 |
— | ||
| replacement | |||||
|
3
|
3
14771-38200-H17
CONNECTOR,MUFFLER
|
14771-38200-H17 |
— | ||
|
4
|
4
14469-32400-000
Muff connect cl
|
14469-32400-000 |
— | ||
|
5
|
5
09100-08148-000
Bolt
|
09100-08148-000 |
— | ||
| replacement | |||||
|
5
|
5
01500-0835B-000 BoltBolt, muffler support |
01500-0835B-000 |
from US $0.96 |
||
|
6
|
6
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
6
|
6
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
7
|
7
14470-37210-000
Bracket, muffler hanger
|
14470-37210-000 |
— | ||
|
8
|
8
01107-10208-000
Bolt
|
01107-10208-000 |
— | ||
| replacement | |||||
|
8
|
8
01500-1020B-000 BoltBolt, axle bearing housing |
01500-1020B-000 |
from US $0.76 |
||
|
9
|
9
08322-11108-000
Washer
|
08322-11108-000 |
— | ||
| replacement | |||||
|
9
|
9
08322-01107-000 WASHERWasher, throttle drum |
08322-01107-000 |
from US $0.76 |
||
|
10
|
10
08321-21108-000
Lock washer
|
08321-21108-000 |
— | ||
| replacement | |||||
|
10
|
10
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
11
|
11
01107-08358-000
Bolt 8 x 35
|
01107-08358-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-0835B-000 BoltBolt, muffler support |
01500-0835B-000 |
from US $0.96 |
||
|
12
|
12
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
12
|
12
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
13
|
13
916008002
Washer
|
916008002 |
— | ||
|
14
|
14
14781-37200-000
Cover, 2nd muffler
|
14781-37200-000 |
— | ||
|
16
|
16
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
16
|
16
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
17
|
17
09168-06005-000
Muffler cover gasket
|
09168-06005-000 |
— | ||
| replacement | |||||
|
17
|
17
09168-06105-000 GASKET(6.2X12X1.5)Gasket (6.2x12x1.5) |
09168-06105-000 |
from US $3.35 |
||
|
18
|
18
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
18
|
18
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
|
19
|
19
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
19
|
19
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
20
|
20
09320-12026-000
Cushion
|
09320-12026-000 |
— | ||
| replacement | |||||
|
20
|
20
09320-12043-000 CUSHIONCushion, exhaust support |
09320-12043-000 |
from US $7.45 |
||
|
21
|
21
09180-08032-000
Spacer (8.2*12*y7)
|
09180-08032-000 |
— | ||
| replacement | |||||
|
21
|
21
09180-08143-000 SPACER(8.2X12X17) |
09180-08143-000 |
from US $1.82 |
||
