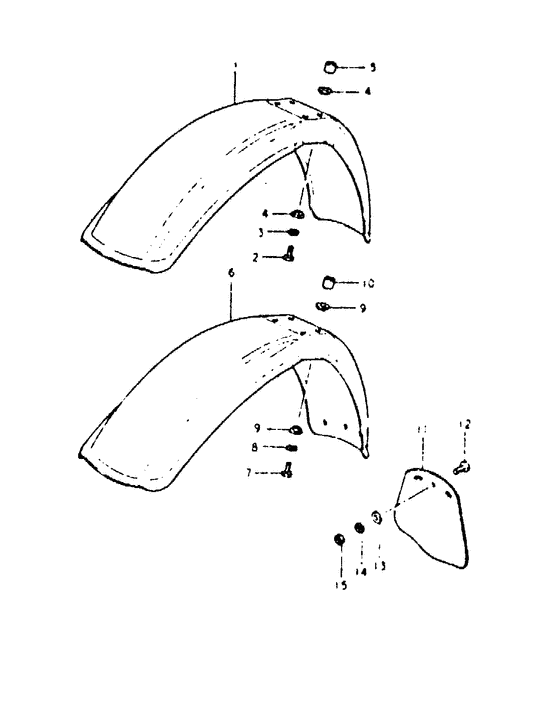

Front fender Diagram Suzuki DR400
- Year
- 1999
- Model code
- DR400SX(T/X) X
- Engine Capacity
- 400
- Model
- DR400
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-37210-08Y
Fender, front (blue)
Fender, front (blue); |
53111-37210-08Y |
— | ||
|
1
|
1
53111-37210-10V
Fender, front (white)
Fender, front (white); |
53111-37210-10V |
— | ||
|
1
|
1
53111-37210-163
Fender, front (yellow)
Fender, front (yellow); |
53111-37210-163 |
— | ||
|
1
|
1
53111-37210-07P
Fender, front (red)
Fender, front (red); Model x |
53111-37210-07P |
— | ||
|
2
|
2
01107-06458-000
Bolt
|
01107-06458-000 |
— | ||
| replacement | |||||
|
2
|
2
01500-0645B-000 Bolt |
01500-0645B-000 |
from US $4.06 |
||
|
3
|
3
08321-21068-000
Lock washer
|
08321-21068-000 |
— | ||
| replacement | |||||
|
3
|
3
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.65 |
||
|
4
|
4
09169-06016-000 WASHERWasher Washer; |
09169-06016-000 |
from US $1.52 |
||
|
5
|
5
09180-06024-000
Spacer (6.8*10*27.5)
|
09180-06024-000 |
— | ||
| replacement | |||||
|
5
|
5
09180-06298-000 SPACER(6.5X10X27.5) |
09180-06298-000 |
from US $4.28 |
||
