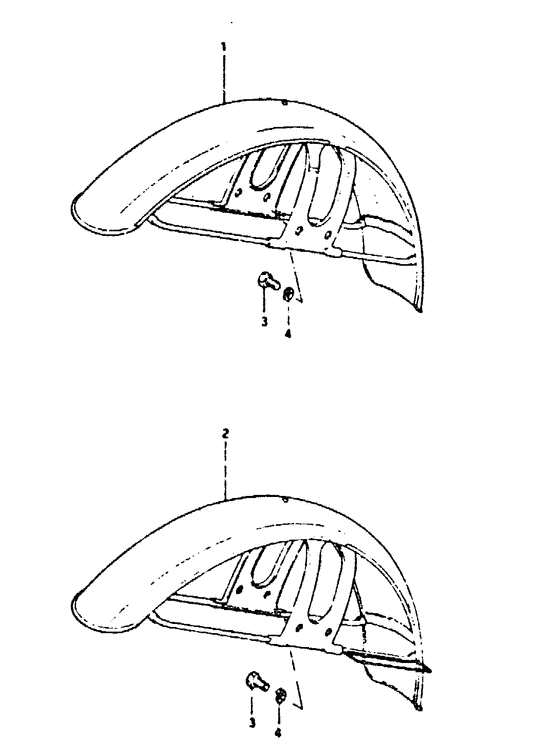

Front fender (E15, e17, e26) Diagram Suzuki DR400
- Year
- 1999
- Model code
- DR400SX(T/X) X
- Engine Capacity
- 400
- Model
- DR400
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-37200-000
Fender, front
Model t (e15, e17, e26) |
53110-37200-000 |
— | ||
|
2
|
2
53110-32401-000
Fender, front
Model x(e17, e26) |
53110-32401-000 |
— | ||
|
3
|
3
01107-08168-000
Bolt
|
01107-08168-000 |
— | ||
| replacement | |||||
|
3
|
3
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.96 |
||
|
4
|
4
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
