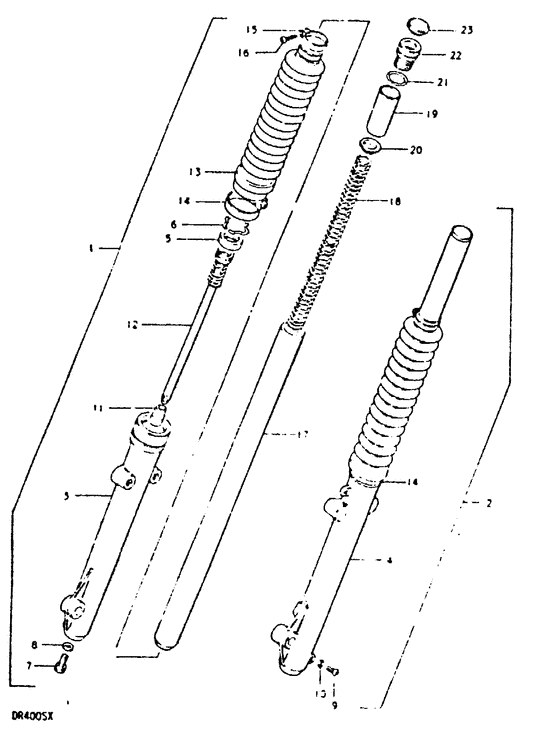

Front fork (Dr400sx) Diagram Suzuki DR400
- Year
- 1999
- Model code
- DR400SX(T/X) X
- Engine Capacity
- 400
- Model
- DR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51103-37210-000
Damper assy, rh
|
51103-37210-000 |
— | ||
|
2
|
2
51104-37240-000
Damper assy, lh
|
51104-37240-000 |
— | ||
|
3
|
3
51130-30901-000
Outer tube, rh
|
51130-30901-000 |
— | ||
|
4
|
4
51140-37210-000
Outer tube, lh
|
51140-37210-000 |
— | ||
|
5
|
5
51153-41211-000
Oil seal
|
51153-41211-000 |
— | ||
| replacement | |||||
|
5
|
5
51153-16730-000 SEAL,OIL |
51153-16730-000 |
US $26.09 |
||
|
6
|
6
51156-30400-000
RING,STOPPER
|
51156-30400-000 |
— | ||
|
7
|
7
51147-16510-000 BOLT,FORK CYLINDER(10X25)Bolt,cylinder |
51147-16510-000 |
from US $2.46 |
||
|
8
|
8
51148-41310-000 GASKETGasket Gasket; |
51148-41310-000 |
from US $3.09 |
||
|
9
|
9
02112-04088-000
Screw
|
02112-04088-000 |
— | ||
| replacement | |||||
|
9
|
9
02112-04087-000 SCREW |
02112-04087-000 |
from US $0.41 |
||
|
10
|
10
51183-03010-000 GASKET,DRAIN,PLUGGasket Gasket; |
51183-03010-000 |
from US $1.40 |
||
|
11
|
11
51195-41210-000
Piece,oil leak
|
51195-41210-000 |
— | ||
| replacement | |||||
|
11
|
11
51195-49071-000 PIECE,OIL LOCKPiece, oil lock |
51195-49071-000 |
from US $11.08 |
||
|
12
|
12
51146-30400-000
Cylinder
|
51146-30400-000 |
— | ||
|
13
|
13
51571-32500-000
Boot
|
51571-32500-000 |
— | ||
| replacement | |||||
|
13
|
13
51571-37448-019
Fork boot
|
51571-37448-019 |
— | ||
|
14
|
14
51573-41410-000
Boot band,f for
|
51573-41410-000 |
— | ||
|
15
|
15
51575-41410-000
BAND,BOOT
|
51575-41410-000 |
— | ||
|
16
|
16
02112-04168-000
Screw
|
02112-04168-000 |
— | ||
| replacement | |||||
|
16
|
16
02112-0416A-000 SCREW |
02112-0416A-000 |
from US $0.68 |
||
|
17
|
17
51110-37210-000
Inner tube
|
51110-37210-000 |
— | ||
|
18
|
18
51171-37210-000
Spring
|
51171-37210-000 |
— | ||
|
29
|
29
51176-41010-000
Spacer
|
51176-41010-000 |
— | ||
|
20
|
20
51172-38010-000
Fork spring gui
Washer; |
51172-38010-000 |
— | ||
|
21
|
21
51117-16310-000
O RING
O ring; |
51117-16310-000 |
— | ||
|
22
|
22
51351-30520-000
Fork cap
|
51351-30520-000 |
— | ||
|
23
|
23
51189-32400-000
Cap
|
51189-32400-000 |
— | ||
| replacement | |||||
|
23
|
23
51189-30520-000 CAP,FR FORKCap, fork bolt |
51189-30520-000 |
from US $7.69 |
||
