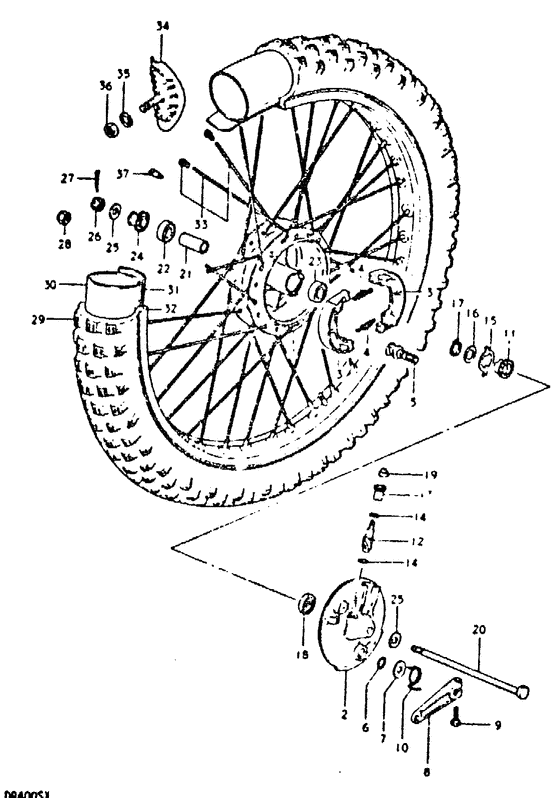

Front wheel (Dr400st) Diagram Suzuki DR400
- Year
- 1999
- Model code
- DR400SX(T/X) X
- Engine Capacity
- 400
- Model
- DR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54110-40302-000
Hub, front
|
54110-40302-000 |
— | ||
|
2
|
2
54210-37200-000
Panel, front hub
|
54210-37200-000 |
— | ||
|
3
|
3
54410-32400-000
Shoe,brake
|
54410-32400-000 |
— | ||
| replacement | |||||
|
3
|
3
64400-02830-000 SHOE SET,BRAKEShoe set, rear brake |
64400-02830-000 |
from US $47.52 |
||
|
4
|
4
55420-41100-000
SPRING
Spring; |
55420-41100-000 |
— | ||
|
5
|
5
54440-40301-000
Cam, brake
To 54440-40302 |
54440-40301-000 |
— | ||
|
6
|
6
09280-15001-000
Cam shaft dust seal
|
09280-15001-000 |
— | ||
| replacement | |||||
|
6
|
6
09280-15003-000 O RING(D:2.4,ID:14.8)O ring (id:14.8,dd:2.4) |
09280-15003-000 |
from US $2.08 |
||
|
7
|
7
09180-15001-000
Front axle spac
Washer (15*24*1.6); |
09180-15001-000 |
— | ||
|
8
|
8
54451-32400-000
Lever, brake cam
|
54451-32400-000 |
— | ||
| replacement | |||||
|
8
|
8
54451-32401-000 LEVER,FR BRAKE CAMLever, brack cam |
54451-32401-000 |
US $23.37 |
||
|
9
|
9
01107-06258-000
Bolt
|
01107-06258-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-06257-000 Bolt |
01500-06257-000 |
from US $0.96 |
||
|
10
|
10
09448-32007-000
Srping brake ca
|
09448-32007-000 |
— | ||
|
11
|
11
54611-40600-000
Gear, speedometer (nt:24)
|
54611-40600-000 |
— | ||
|
12
|
12
54621-40600-000
Pinion speedome
Pinion, speedometer (nt:8); |
54621-40600-000 |
— | ||
|
13
|
13
54632-11020-000
Bush
|
54632-11020-000 |
— | ||
|
14
|
14
09160-05001-000
Speedo thrust w
Thrust washer (5.1*9*0.4); |
09160-05001-000 |
— | ||
| replacement | |||||
|
14
|
14
09160-05001-A05 WASHER(5.1X9X0.4)Thrust washer (5.1*9*0.4); |
09160-05001-A05 |
from US $1.12 |
||
|
15
|
15
54660-11031-000 DRIVER,SPEEDOMETER GEARDriver |
54660-11031-000 |
from US $14.54 |
||
|
16
|
16
09160-22001-000 WASHER(22.5X27X1)Thrust washer (22.5*27*1) Thrust washer (22.5*27*1); |
09160-22001-000 |
from US $1.28 |
||
|
17
|
17
08331-11229-000
Circlip
|
08331-11229-000 |
— | ||
| replacement | |||||
|
17
|
17
08331-31229-000 CIRCLIP |
08331-31229-000 |
from US $1.44 |
||
|
18
|
18
09285-26003-000
SEAL,OIL(26X38X4)
|
09285-26003-000 |
— | ||
| replacement | |||||
|
18
|
18
09285-26005-000
Seal,oil(26X38X4)
|
09285-26005-000 |
— | ||
|
19
|
19
09289-06001-000 SEAL,OIL(6X10X3)Speedo pinion seal |
09289-06001-000 |
US $7.33 |
||
|
20
|
20
64711-43000-000
Axle, front
|
64711-43000-000 |
— | ||
| replacement | |||||
|
20
|
20
64711-43001-000 AXLE,RRAxle, rear |
64711-43001-000 |
from US $21.90 |
||
|
21
|
21
09180-12041-000
Spacer (12.6*19*52)
|
09180-12041-000 |
— | ||
| replacement | |||||
|
21
|
21
09180-12144-000 SPACER(12.5X19X52)Spacer (12.5x19x52) |
09180-12144-000 |
from US $11.82 |
||
|
22
|
22
08123-02017-000
Bearing, rh
|
08123-02017-000 |
— | ||
|
23
|
23
08143-62017-000
BEARING
Bearing, lh; |
08143-62017-000 |
— | ||
| replacement | |||||
|
23
|
23
08143-6201B-000 BearingBearing, lh; |
08143-6201B-000 |
from US $7.68 |
||
|
24
|
24
54740-41100-000
Spacer, rh
|
54740-41100-000 |
— | ||
|
25
|
25
08322-11128-000
Washer
|
08322-11128-000 |
— | ||
| replacement | |||||
|
25
|
25
08322-01127-000 WASHERWasher, neutral sw |
08322-01127-000 |
from US $0.96 |
||
|
26
|
26
08314-41128-000
Nut
|
08314-41128-000 |
— | ||
| replacement | |||||
|
26
|
26
08314-4012A-000 NUT |
08314-4012A-000 |
from US $0.99 |
||
|
27
|
27
04111-30308-000
30 x 30 cotter
Cotter pin; |
04111-30308-000 |
— | ||
| replacement | |||||
|
27
|
27
04111-3030A-000 PINCotter pin; |
04111-3030A-000 |
from US $0.76 |
||
|
29
|
29
55100-30900-000
Tire, front (3.00-21)
|
55100-30900-000 |
— | ||
| replacement | |||||
|
29
|
29
55100-37410-000
Tire comp front
|
55100-37410-000 |
— | ||
|
30
|
30
55200-16510-000 TUBETube assy, wheel inner Tube, inner (3.00-21); |
55200-16510-000 |
US $51.75 |
||
|
31
|
31
55261-16510-000 Protector, inner tube |
55261-16510-000 |
from US $3.20 |
||
| replacement | |||||
|
31
|
31
55261-14540-000 PROTECTOR,WHEEL INNERProtector, inner tube |
55261-14540-000 |
US $6.14 |
||
|
32
|
32
55311-37210-000
Rim, wheel (1.60*21)
|
55311-37210-000 |
— | ||
| replacement | |||||
|
32
|
32
55311-372V0-000
New Genuine Part
|
55311-372V0-000 |
— | ||
|
33
|
33
55320-40410-000
Spoke set front
|
55320-40410-000 |
— | ||
|
34
|
34
65270-28600-000 STOPPER,BEADStopper, beed Stopper, beed; |
65270-28600-000 |
from US $25.94 |
||
|
35
|
35
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
35
|
35
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
36
|
36
08310-12088-000
Nut
|
08310-12088-000 |
— | ||
| replacement | |||||
|
36
|
36
08310-00087-000 NUT |
08310-00087-000 |
from US $0.76 |
||
|
37
|
37
55411-30000-000
Wheel balancer
|
55411-30000-000 |
— | ||
