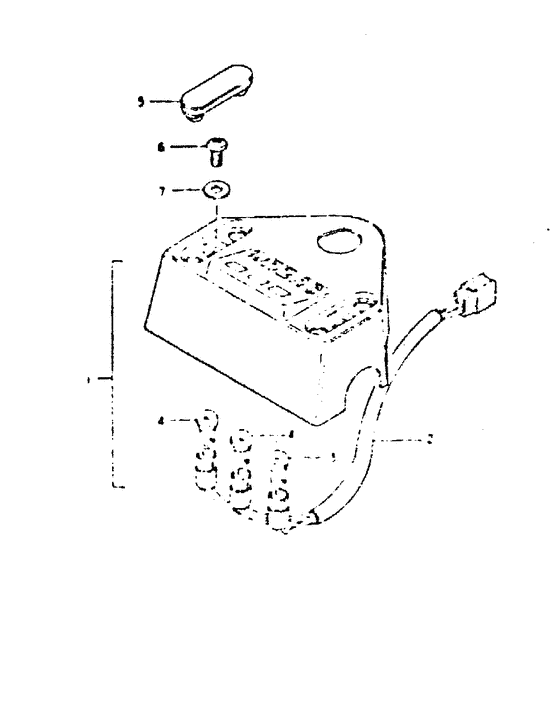

Pilot box Diagram Suzuki DR400
- Year
- 1999
- Model code
- DR400SX(T/X) X
- Engine Capacity
- 400
- Model
- DR400
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36380-48500-000
Pilot box assy
Model t, to 36380-48501 |
36380-48500-000 |
— | ||
| replacement | |||||
|
1
|
1
36380-48501-000
LAMP ASSY,PILOT
Model t, to 36380-48501 |
36380-48501-000 |
— | ||
|
1
|
1
36380-48501-000
LAMP ASSY,PILOT
Model x |
36380-48501-000 |
— | ||
|
2
|
2
36325-48500-000 SOCKET |
36325-48500-000 |
US $14.46 |
||
|
3
|
3
09471-06001-000 BULB(6V1.7W,STANLEY,A61A)Bulb Bulb (6v, 1.7w); |
09471-06001-000 |
from US $2.76 |
||
|
4
|
4
09471-06002-000 BULB(6V/3W)Bulb Bulb (8v, 3w); |
09471-06002-000 |
from US $2.21 |
||
|
5
|
5
36388-48500-000
Cap
|
36388-48500-000 |
— | ||
| replacement | |||||
|
5
|
5
36388-48501-000 CAP,PILOT LAMP BOLT |
36388-48501-000 |
from US $1.68 |
||
|
6
|
6
02112-06128-000
Screw
|
02112-06128-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-06127-000 SCREW |
02112-06127-000 |
from US $0.76 |
||
|
7
|
7
08322-21068-000
Washer
|
08322-21068-000 |
— | ||
| replacement | |||||
|
7
|
7
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.65 |
||
