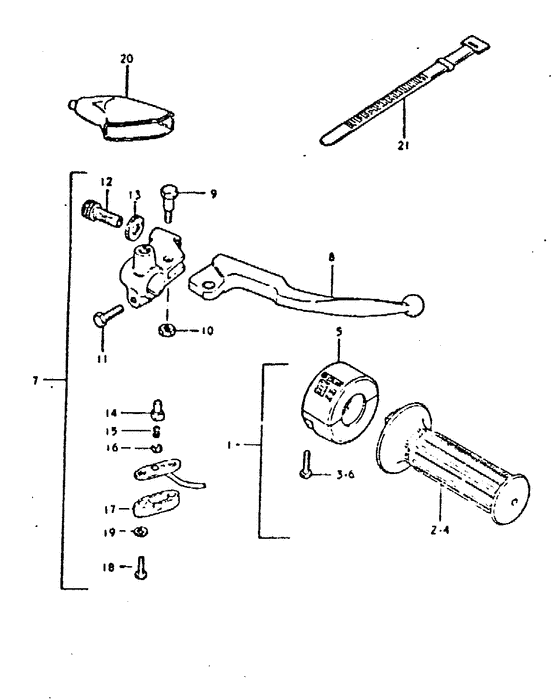

Right handle switch Diagram Suzuki DR400
- Year
- 1999
- Model code
- DR400SX(T/X) X
- Engine Capacity
- 400
- Model
- DR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57100-30500-000
Grip assy, throttle
Model t |
57100-30500-000 |
— | ||
| replacement | |||||
|
1
|
1
57110-30501-000 GRIP,THROTTLEGrip, throttle Model t |
57110-30501-000 |
from US $40.29 |
||
|
2
|
2
57110-30501-000 GRIP,THROTTLEGrip, throttle Model t |
57110-30501-000 |
from US $40.29 |
||
|
3
|
3
02112-05258-000
Screw
Model t |
02112-05258-000 |
— | ||
| replacement | |||||
|
3
|
3
02112-05257-000 SCREWModel t |
02112-05257-000 |
from US $0.77 |
||
|
4
|
4
57110-30501-000 GRIP,THROTTLEGrip, throttle Model x |
57110-30501-000 |
from US $40.29 |
||
|
5
|
5
57100-30530-000
Case assy,throt
Model x |
57100-30530-000 |
— | ||
|
6
|
6
02112-05258-000
Screw
Model x |
02112-05258-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-05257-000 SCREWModel x |
02112-05257-000 |
from US $0.77 |
||
|
7
|
7
57300-37100-000
Switch brake le
|
57300-37100-000 |
— | ||
|
8
|
8
57420-26500-000 LEVER,BRAKELever, brake; |
57420-26500-000 |
from US $27.60 |
||
|
9
|
9
57431-11011-000 Bolt |
57431-11011-000 |
US $6.32 |
||
| replacement | |||||
|
9
|
9
57431-11013-000 BOLT,LEVER PIVOT |
57431-11013-000 |
from US $2.72 |
||
|
10
|
10
08319-21068-000
U nut
Nut; |
08319-21068-000 |
— | ||
| replacement | |||||
|
10
|
10
08319-2106A-000 NUTNut; |
08319-2106A-000 |
from US $1.28 |
||
|
11
|
11
01107-06208-000
Bolt
|
01107-06208-000 |
— | ||
| replacement | |||||
|
11
|
11
01500-06207-000 Bolt |
01500-06207-000 |
from US $0.76 |
||
|
12
|
12
57441-11010-000 ADJUSTER,CABLEAdjuster, cable; |
57441-11010-000 |
from US $2.89 |
||
|
13
|
13
57442-11010-000 NUT,CABLE ADJUSTERNut Nut; |
57442-11010-000 |
from US $1.67 |
||
|
20
|
20
57341-40001-000
Lever dust cove
|
57341-40001-000 |
— | ||
| replacements | |||||
|
20
|
20
57341-40002-000
COVER,CLUTCH LEVER
|
57341-40002-000 |
— | ||
|
20
|
20
57341-40003-000 Cover,clutch Lever |
57341-40003-000 |
from US $7.92 |
||
|
21
|
21
09407-12402-000 CLAMP(L:120)Clamp, wiring harness Band (l:120); |
09407-12402-000 |
from US $2.24 |
||
