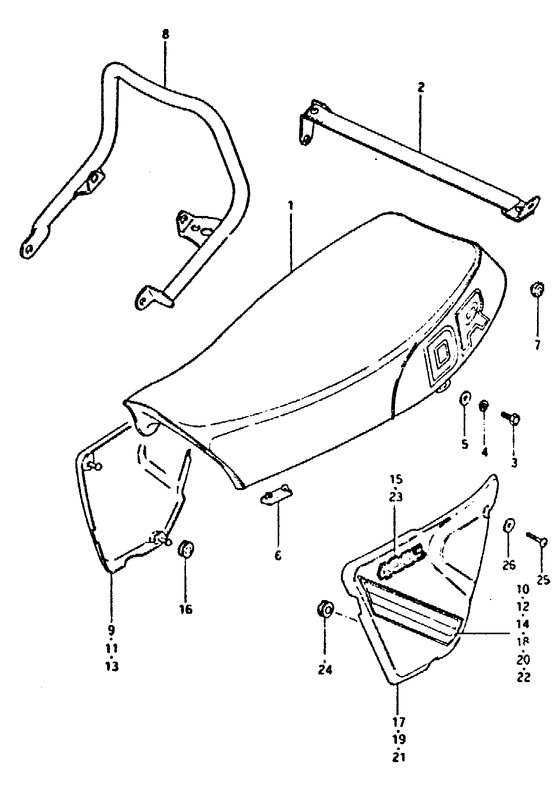

Seat - frame cover (Dr400sx) Diagram Suzuki DR400
- Year
- 1999
- Model code
- DR400SX(T/X) X
- Engine Capacity
- 400
- Model
- DR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-37211-865
Seat assy (black)
Seat assy (black); |
45100-37211-865 |
— | ||
|
2
|
2
45180-37210-000
Band, seat grip
|
45180-37210-000 |
— | ||
|
3
|
3
01107-08168-000
Bolt
|
01107-08168-000 |
— | ||
| replacement | |||||
|
3
|
3
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.96 |
||
|
4
|
4
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
4
|
4
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
5
|
5
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
5
|
5
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
6
|
6
09321-08009-000 CUSHIONCushion Cushion; |
09321-08009-000 |
from US $4.88 |
||
|
7
|
7
09321-10007-000 CUSHIONCushion, stopper Cushion, rear; |
09321-10007-000 |
from US $2.24 |
||
|
9
|
9
47111-37200-10V
Cover, frame rh (white)
|
47111-37200-10V |
— | ||
| replacement | |||||
|
9
|
9
47111-37200-000
New Genuine Part
|
47111-37200-000 |
— | ||
|
9
|
9
47111-37200-163
Cover, frame rh (yellow)
Cover, frame rh (yellow); |
47111-37200-163 |
— | ||
|
10
|
10
68136-37210-67H
Tape, rh
|
68136-37210-67H |
— | ||
|
11
|
11
47111-37200-08Y
Cover, frame rh (blue)
Cover, frame rh (blue); |
47111-37200-08Y |
— | ||
|
12
|
12
68136-37210-74U
Tape, rh
|
68136-37210-74U |
— | ||
|
13
|
13
47111-37200-07P
Cover, frame rh (red)
Cover, frame rh (red); |
47111-37200-07P |
— | ||
|
14
|
14
68136-37210-74T
Tape, rh
|
68136-37210-74T |
— | ||
|
15
|
15
68131-37220-77D
Emblem, rh
|
68131-37220-77D |
— | ||
|
16
|
16
09320-08018-000 CUSHIONCushion, lh Cushion, rh; |
09320-08018-000 |
from US $1.98 |
||
|
17
|
17
47211-37200-10V
Cover, frame lh (white)
|
47211-37200-10V |
— | ||
| replacement | |||||
|
17
|
17
47211-37200-000
Cover,frame lh
|
47211-37200-000 |
— | ||
|
17
|
17
47211-37200-163
Cover, frame lh (yellow)
Cover, frame lh (yellow); |
47211-37200-163 |
— | ||
|
18
|
18
68146-37210-67H
Tape, lh
|
68146-37210-67H |
— | ||
|
19
|
19
47211-37200-08Y
Cover, frame lh (blue)
Cover, frame lh (blue); |
47211-37200-08Y |
— | ||
|
20
|
20
68146-37210-74U
Tape, lh
|
68146-37210-74U |
— | ||
|
21
|
21
47211-37200-07P
Cover, frame lh (red)
Cover, frame lh (red); |
47211-37200-07P |
— | ||
|
22
|
22
68146-37210-74T
Tape, lh
|
68146-37210-74T |
— | ||
|
23
|
23
68131-37220-77D
Emblem, rh
|
68131-37220-77D |
— | ||
|
24
|
24
09320-08018-000 CUSHIONCushion, lh Cushion, lh; |
09320-08018-000 |
from US $1.98 |
||
|
25
|
25
02142-06308-000
Screw
|
02142-06308-000 |
— | ||
| replacement | |||||
|
25
|
25
02142-06307-000 SCREW |
02142-06307-000 |
from US $0.76 |
||
|
26
|
26
09160-06007-000
Washer
|
09160-06007-000 |
— | ||
| replacement | |||||
|
26
|
26
09160-06084-000 WASHER(6.5X18X1.6) |
09160-06084-000 |
from US $0.76 |
||
