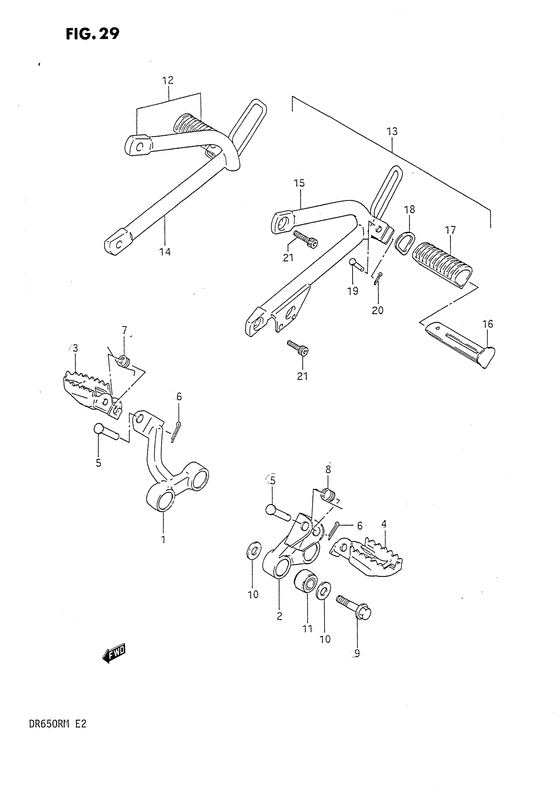

Footrest Diagram Suzuki DR650 DR650R
- Year
- 1990
- Model code
- DR650RL(E2) L
- Engine Capacity
- 650
- Model
- DR650R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43510-14A00-29F
Bar, footrest rh (brown)
Bar, footrest rh (brown); Model l |
43510-14A00-29F |
— | ||
| replacement | |||||
|
1
|
1
43510-14A00-019
Bar fr footrest
Bar, footrest rh (brown); Model l |
43510-14A00-019 |
— | ||
|
1
|
1
43510-14A00-34S
Bar, footrest rh (blue)
Bar, footrest rh (blue); Model l |
43510-14A00-34S |
— | ||
| replacement | |||||
|
1
|
1
43510-14A00-019
Bar fr footrest
Bar, footrest rh (blue); Model l |
43510-14A00-019 |
— | ||
|
1
|
1
43510-14A00-019
Bar fr footrest
Bar, footrest rh (black); Model m |
43510-14A00-019 |
— | ||
|
1
|
1
43510-14A00-0NF
Bar, footrest rh (blue)
Model m |
43510-14A00-0NF |
— | ||
| replacement | |||||
|
1
|
1
43510-14A00-019
Bar fr footrest
Model m |
43510-14A00-019 |
— | ||
|
2
|
2
43520-14A00-29F
Bar, footrest lh (brown)
Bar, footrest lh (brown); Model l |
43520-14A00-29F |
— | ||
|
2
|
2
43520-14A00-34S
Bar, footrest lh (blue)
Bar, footrest lh (blue); Model l |
43520-14A00-34S |
— | ||
|
2
|
2
43520-14A00-019
Bar,fr footrest
Bar, footrest lh (black); Model m |
43520-14A00-019 |
— | ||
|
2
|
2
43520-14A00-0NF
Bar, footrest lh (blue)
Model m |
43520-14A00-0NF |
— | ||
| replacement | |||||
|
2
|
2
43520-14A00-019
Bar,fr footrest
Model m |
43520-14A00-019 |
— | ||
|
3
|
3
43550-44B10-29F
Footrest, front rh (brown)
Footrest, front rh (brown); Model l |
43550-44B10-29F |
— | ||
| replacement | |||||
|
3
|
3
43550-44B10-019 FOOTREST,FR,RFootrest, front rh (black) Footrest, front rh (brown); Model l |
43550-44B10-019 |
from US $28.88 |
||
|
3
|
3
43550-44B10-34S
Footrest, front rh (blue)
Footrest, front rh (blue); Model l |
43550-44B10-34S |
— | ||
| replacement | |||||
|
3
|
3
43550-44B10-019 FOOTREST,FR,RFootrest, front rh (black) Footrest, front rh (blue); Model l |
43550-44B10-019 |
from US $28.88 |
||
|
3
|
3
43550-44B10-019 FOOTREST,FR,RFootrest, front rh (black) Footrest, front rh (black); Model m |
43550-44B10-019 |
from US $28.88 |
||
|
3
|
3
43550-44B10-0NF
Footrest, front rh (blue)
Model m |
43550-44B10-0NF |
— | ||
| replacement | |||||
|
3
|
3
43550-44B10-019 FOOTREST,FR,RFootrest, front rh (black) Model m |
43550-44B10-019 |
from US $28.88 |
||
|
4
|
4
43560-44B10-29F
Footrest, front lh (brown)
Footrest, front lh (brown); Model l |
43560-44B10-29F |
— | ||
| replacement | |||||
|
4
|
4
43560-44B10-019
FOOTREST,FR,L
Footrest, front lh (brown); Model l |
43560-44B10-019 |
— | ||
|
4
|
4
43560-44B10-34S
Footrest, front lh (blue)
Footrest, front lh (blue); Model l |
43560-44B10-34S |
— | ||
| replacement | |||||
|
4
|
4
43560-44B10-019
FOOTREST,FR,L
Footrest, front lh (blue); Model l |
43560-44B10-019 |
— | ||
|
4
|
4
43560-44B10-019
FOOTREST,FR,L
Footrest, front lh (black); Model m |
43560-44B10-019 |
— | ||
|
4
|
4
43560-44B10-0NF
Footrest,front,
Footrest, front lh (blue); Model m |
43560-44B10-0NF |
— | ||
| replacement | |||||
|
4
|
4
43560-44B10-019
FOOTREST,FR,L
Footrest, front lh (blue); Model m |
43560-44B10-019 |
— | ||
|
5
|
5
09200-10008-000 PINPin |
09200-10008-000 |
from US $4.13 |
||
|
6
|
6
04111-20208-000 20 x 20 cotterCotter pin Cotter pin; |
04111-20208-000 |
from US $0.80 |
||
| replacement | |||||
|
6
|
6
04111-2020A-000 PINCotter pin, rod end Cotter pin; |
04111-2020A-000 |
from US $0.76 |
||
|
7
|
7
09448-15008-000
Spring
|
09448-15008-000 |
— | ||
| replacement | |||||
|
7
|
7
09448-15008-XC0
SPRING
|
09448-15008-XC0 |
— | ||
|
8
|
8
09448-15004-000 SPRINGSpring, lh; |
09448-15004-000 |
from US $3.57 |
||
|
9
|
9
09103-10232-000 BOLT(10X50) |
09103-10232-000 |
from US $7.70 |
||
|
10
|
10
09160-10059-000 Washer pedal ar |
09160-10059-000 |
US $2.10 |
||
| replacement | |||||
|
10
|
10
09160-10124-000 WASHER(10.1X23X2.3)Washer |
09160-10124-000 |
from US $3.71 |
||
|
11
|
11
09319-10033-000 BUSH(10.2X25X19) |
09319-10033-000 |
from US $10.22 |
||
|
12
|
12
43600-14C00-29F
Footrest, pillion rh (brown)
Footrest, pillion rh (brown); Model l |
43600-14C00-29F |
— | ||
|
12
|
12
43600-14C00-34S
Footrest, pillion rh (blue)
Footrest, pillion rh (blue); Model l |
43600-14C00-34S |
— | ||
|
12
|
12
43600-14C00-28W
Footrest, pillion rh (white)
Footrest, pillion rh (white); Model m |
43600-14C00-28W |
— | ||
|
12
|
12
43600-14C00-0NF
Footrest assy,p
Footrest, pillion rh (blue); Model m |
43600-14C00-0NF |
— | ||
|
13
|
13
43700-14C00-29F
Footrest, pillion lh (brown)
Footrest, pillion lh (brown); Model l |
43700-14C00-29F |
— | ||
| replacement | |||||
|
13
|
13
43700-14C00-019
FOOTREST ASSY,PILLION,L
Footrest, pillion lh (brown); Model l |
43700-14C00-019 |
— | ||
|
13
|
13
43700-14C00-34S
Footrest, pillion lh (blue)
Footrest, pillion lh (blue); Model l |
43700-14C00-34S |
— | ||
| replacement | |||||
|
13
|
13
43700-14C00-019
FOOTREST ASSY,PILLION,L
Footrest, pillion lh (blue); Model l |
43700-14C00-019 |
— | ||
|
13
|
13
43700-14C00-28W
Footrest, pillion lh (white)
Footrest, pillion lh (white); Model m |
43700-14C00-28W |
— | ||
|
13
|
13
43700-14C00-0NF
Footrest assy,p
Footrest, pillion lh (blue); Model m |
43700-14C00-0NF |
— | ||
| replacement | |||||
|
13
|
13
43700-14C00-019
FOOTREST ASSY,PILLION,L
Footrest, pillion lh (blue); Model m |
43700-14C00-019 |
— | ||
|
14
|
14
43650-14C00-29F
Holder, rh (brown)
Holder, rh (brown); Model l |
43650-14C00-29F |
— | ||
|
14
|
14
43650-14C00-34S
Holder, rh (blue)
Holder, rh (blue); Model l |
43650-14C00-34S |
— | ||
|
14
|
14
43650-14C00-28W
Holder, rh (white)
Holder, rh (white); Model m |
43650-14C00-28W |
— | ||
|
14
|
14
43650-14C00-0NF
Holder,pillion
Holder, rh (blue); Model m |
43650-14C00-0NF |
— | ||
|
15
|
15
43750-14C00-29F
Holder, lh (brown)
Holder, lh (brown); Model l |
43750-14C00-29F |
— | ||
| replacement | |||||
|
15
|
15
43700-14C00-019
FOOTREST ASSY,PILLION,L
Holder, lh (brown); Model l |
43700-14C00-019 |
— | ||
|
15
|
15
43750-14C00-34S
Holder, lh (blue)
Holder, lh (blue); Model l |
43750-14C00-34S |
— | ||
| replacement | |||||
|
15
|
15
43700-14C00-019
FOOTREST ASSY,PILLION,L
Holder, lh (blue); Model l |
43700-14C00-019 |
— | ||
|
15
|
15
43750-14C00-28W
Holder, lh (white)
Holder, lh (white); Model m |
43750-14C00-28W |
— | ||
|
15
|
15
43750-14C00-0NF
Holder, lh (blue)
Model m |
43750-14C00-0NF |
— | ||
| replacement | |||||
|
15
|
15
43700-14C00-019
FOOTREST ASSY,PILLION,L
Model m |
43700-14C00-019 |
— | ||
|
16
|
16
43610-14A10-000
Bar comp,pillio
|
43610-14A10-000 |
— | ||
|
16
|
16
43620-14A10-000
Bar comp,pillio
|
43620-14A10-000 |
— | ||
|
17
|
17
43612-14A00-000 RUBBER,PILLION FOOTREST |
43612-14A00-000 |
US $6.11 |
||
|
18
|
18
43631-14A10-000 WASHER,PILLION FOOTREST |
43631-14A10-000 |
US $1.77 |
||
|
19
|
19
09200-06010-000 PINPin Pin; |
09200-06010-000 |
from US $1.12 |
||
|
20
|
20
04111-20158-000
20 x 15 cotter
Cotter pin; |
04111-20158-000 |
— | ||
| replacement | |||||
|
20
|
20
04111-2015A-000 PINCotter pin; |
04111-2015A-000 |
from US $0.76 |
||
|
21
|
21
07110-08207-000
Bolt
|
07110-08207-000 |
— | ||
| replacement | |||||
|
21
|
21
07130-08207-000 Bolt |
07130-08207-000 |
from US $5.88 |
||
