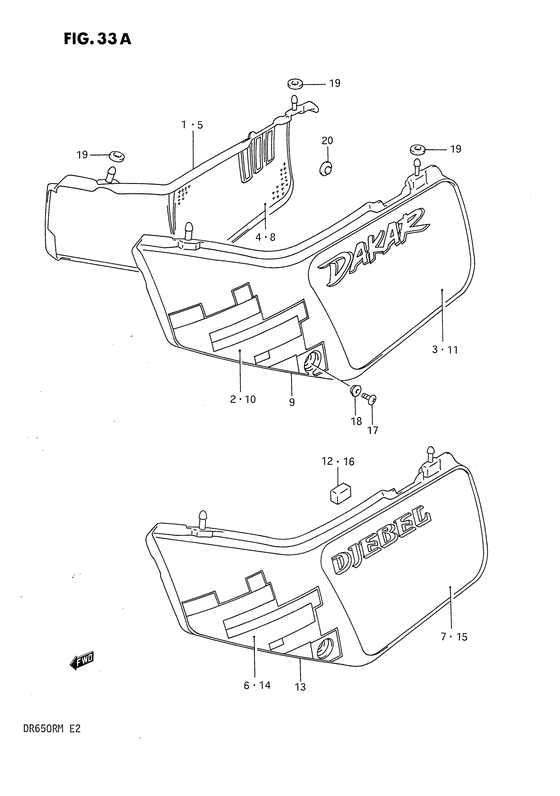

Frame cover (Model m) Diagram Suzuki DR650 DR650R
- Year
- 1990
- Model code
- DR650RL(E2) L
- Engine Capacity
- 650
- Model
- DR650R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47110-14C50-30H
Cover, frame rh (white)
Cover, frame rh (white); For 3ua |
47110-14C50-30H |
— | ||
|
1
|
1
47110-14C50-19X
Cover, frame rh (white)
Cover, frame rh (white); For g11 |
47110-14C50-19X |
— | ||
|
2
|
2
68135-15A20-3UE
Tape, front rh
For 30h |
68135-15A20-3UE |
— | ||
|
2
|
2
68135-15A20-E91
Tape, front rh
For 19x |
68135-15A20-E91 |
— | ||
|
3
|
3
68131-14A30-3UE
Emblem, rear rh
For 30h |
68131-14A30-3UE |
— | ||
|
3
|
3
68131-14A30-G09
Emblem, rear rh
For 19x |
68131-14A30-G09 |
— | ||
|
4
|
4
47166-14C00-000
Shield,frame co
|
47166-14C00-000 |
— | ||
|
5
|
5
47110-14C40-30H
Cover, frame rh (white)
Cover, frame rh (white); E4,e34,e53,for 3ua |
47110-14C40-30H |
— | ||
|
5
|
5
47110-14C40-19X
Cover, frame rh (white)
Cover, frame rh (white); E4,e34,e53,for g11 |
47110-14C40-19X |
— | ||
|
6
|
6
68135-15A20-3UE
Tape, front rh
E4,e34,e53,for 30h |
68135-15A20-3UE |
— | ||
|
6
|
6
68135-15A20-E91
Tape, front rh
E4,e34,e53,for 19x |
68135-15A20-E91 |
— | ||
|
7
|
7
68131-14A40-3UE
Emblem, rear rh
E4,e34,e53,for 30h |
68131-14A40-3UE |
— | ||
|
7
|
7
68131-14A40-G09
Emblem, rear rh
E4,e34,e53,for 19x |
68131-14A40-G09 |
— | ||
|
8
|
8
47166-14C00-000
Shield,frame co
|
47166-14C00-000 |
— | ||
|
9
|
9
47210-14C50-30H
Cover, frame lh (white)
Cover, frame lh (white); For 3ua |
47210-14C50-30H |
— | ||
|
9
|
9
47210-14C50-19X
Cover, frame lh (white)
Cover, frame lh (white); For g11 |
47210-14C50-19X |
— | ||
|
10
|
10
68145-15A20-3UE
Tape, front lh
For 30h |
68145-15A20-3UE |
— | ||
|
10
|
10
68145-15A20-E91
Tape, front lh
For 19x |
68145-15A20-E91 |
— | ||
|
11
|
11
68141-14A30-3UE
Emblem, rear lh
For 30h |
68141-14A30-3UE |
— | ||
|
11
|
11
68141-14A30-G09
Emblem, rear lh
For 19x |
68141-14A30-G09 |
— | ||
|
12
|
12
47165-48B10-000
Cushion
|
47165-48B10-000 |
— | ||
| replacement | |||||
|
12
|
12
47165-48B11-000 CUSHION |
47165-48B11-000 |
from US $2.36 |
||
|
13
|
13
47210-14C40-30H
Cover, frame lh (white)
Cover, frame lh (white); E4,e34,e53,for 3ua |
47210-14C40-30H |
— | ||
|
13
|
13
47210-14C40-19X
Cover, frame lh (white)
Cover, frame lh (white); E4,e34,e53,for g11 |
47210-14C40-19X |
— | ||
|
14
|
14
68145-15A20-3UE
Tape, front lh
E4,e34,e53,for 30h |
68145-15A20-3UE |
— | ||
|
14
|
14
68145-15A20-E91
Tape, front lh
E4,e34,e53,for 19x |
68145-15A20-E91 |
— | ||
|
15
|
15
68141-14A40-3UE
Emblem, rear lh
E4,e34,e53,for 30h |
68141-14A40-3UE |
— | ||
|
15
|
15
68141-14A40-G09
Emblem, rear lh
E4,e34,e53,for 19x |
68141-14A40-G09 |
— | ||
|
16
|
16
47165-48B10-000
Cushion
E4,e34,e53 |
47165-48B10-000 |
— | ||
| replacement | |||||
|
16
|
16
47165-48B11-000 CUSHIONE4,e34,e53 |
47165-48B11-000 |
from US $2.36 |
||
|
17
|
17
02142-06125-000
Screw
|
02142-06125-000 |
— | ||
| replacements | |||||
|
17
|
17
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
17
|
17
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
18
|
18
09169-06041-000 WASHER |
09169-06041-000 |
from US $0.76 |
||
|
19
|
19
47161-14A00-000 CUSHION,SIDE COVER BOSSCushion, boss |
47161-14A00-000 |
from US $1.32 |
||
|
20
|
20
09321-10018-000 CUSHIONCushion, muffler; |
09321-10018-000 |
from US $2.13 |
||
