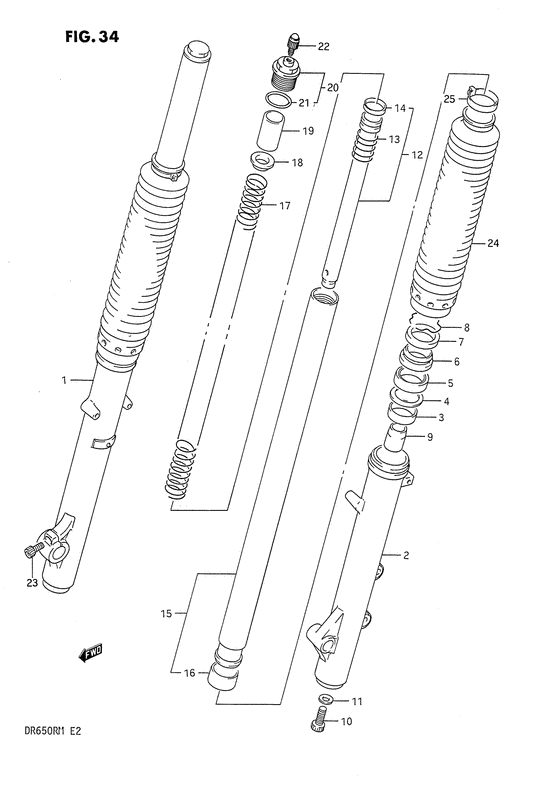

Front fork Diagram Suzuki DR650 DR650R
- Year
- 1990
- Model code
- DR650RL(E2) L
- Engine Capacity
- 650
- Model
- DR650R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
51103-14A20-000
Damper assy,rh
|
51103-14A20-000 |
— | ||
|
|
51104-14A20-000
Damper assy,lh
|
51104-14A20-000 |
— | ||
|
1
|
1
51130-12D00-000
Tube, outer rh
|
51130-12D00-000 |
— | ||
|
2
|
2
51140-12D00-000
Tube,outer lh
|
51140-12D00-000 |
— | ||
|
3
|
3
51167-28C00-000
Metal, slide
Metal, slide; |
51167-28C00-000 |
— | ||
| replacement | |||||
|
3
|
3
51167-26E10-000 METAL,SLIDEMetal, slide Metal, slide; |
51167-26E10-000 |
from US $6.84 |
||
|
4
|
4
51158-05A00-000 WASHER,FORK OIL SEALWasher, lower; |
51158-05A00-000 |
from US $2.43 |
||
|
5
|
5
51153-44B00-000 SEAL,OIL |
51153-44B00-000 |
from US $28 |
||
|
6
|
6
51173-44B00-000 SEAL,DUST |
51173-44B00-000 |
from US $22.40 |
||
|
7
|
7
51158-44B00-000 WASHERWasher, upper |
51158-44B00-000 |
US $3.75 |
||
|
8
|
8
51156-49440-000 RING,OIL SEAL STOPPERRing, snap Snap ring; |
51156-49440-000 |
from US $1.92 |
||
|
9
|
9
51195-12D00-000
Piece,oil lock
|
51195-12D00-000 |
— | ||
|
10
|
10
51147-14200-000
BOLT(14X25)
|
51147-14200-000 |
— | ||
|
11
|
11
51148-14200-000 GASKET |
51148-14200-000 |
from US $1.66 |
||
|
12
|
12
51190-14A20-000
Cylinder
|
51190-14A20-000 |
— | ||
|
13
|
13
51177-12D00-000
Spring
|
51177-12D00-000 |
— | ||
|
14
|
14
51196-24A00-000 RING,FR FORK PISTONRing, piston |
51196-24A00-000 |
US $7.14 |
||
|
15
|
15
51110-14A20-000
Tube, inner
|
51110-14A20-000 |
— | ||
|
16
|
16
51121-28C00-000
Piston
Piston; |
51121-28C00-000 |
— | ||
| replacement | |||||
|
16
|
16
51121-26E10-000 PISTONPiston; |
51121-26E10-000 |
from US $24.32 |
||
|
17
|
17
51171-14A20-000
Spring
|
51171-14A20-000 |
— | ||
|
18
|
18
51172-12D00-000
Guide,spring
|
51172-12D00-000 |
— | ||
|
19
|
19
51176-14A20-000 SPACER,SPRING |
51176-14A20-000 |
US $8.68 |
||
|
20
|
20
51351-14A20-000
CAP,FORK
|
51351-14A20-000 |
— | ||
|
21
|
21
51117-06C10-000
O ring
|
51117-06C10-000 |
— | ||
| replacement | |||||
|
21
|
21
09280-32001-000 O RING(D:3.5,ID:31.7) |
09280-32001-000 |
from US $2.58 |
||
|
22
|
22
51294-14400-000 Cap, valveModel l |
51294-14400-000 |
US $5.85 |
||
| replacement | |||||
|
22
|
22
51294-20400-000 CAPModel l |
51294-20400-000 |
from US $3.46 |
||
|
22
|
22
51294-20400-000 CAPCap, valve; Model m |
51294-20400-000 |
from US $3.46 |
||
|
23
|
23
51138-44B00-000 BOLT,SOCKET HEAD(8X22)Bolt, rh Bolt, rh; |
51138-44B00-000 |
from US $2.21 |
||
|
24
|
24
51571-12D00-39J
BOOT
Boot (red); Model l |
51571-12D00-39J |
— | ||
|
24
|
24
51571-12D00-28V
Boot (red)
Boot (red); Model m |
51571-12D00-28V |
— | ||
|
24
|
24
51571-12D00-34S
BOOT
Boot (blue); Model l |
51571-12D00-34S |
— | ||
|
24
|
24
51571-12D00-38K BOOT(BLUE)Boot (blue) Boot (blue); Model m |
51571-12D00-38K |
from US $55.57 |
||
|
25
|
25
51575-12D00-000
BAND,BOOT
|
51575-12D00-000 |
— | ||
