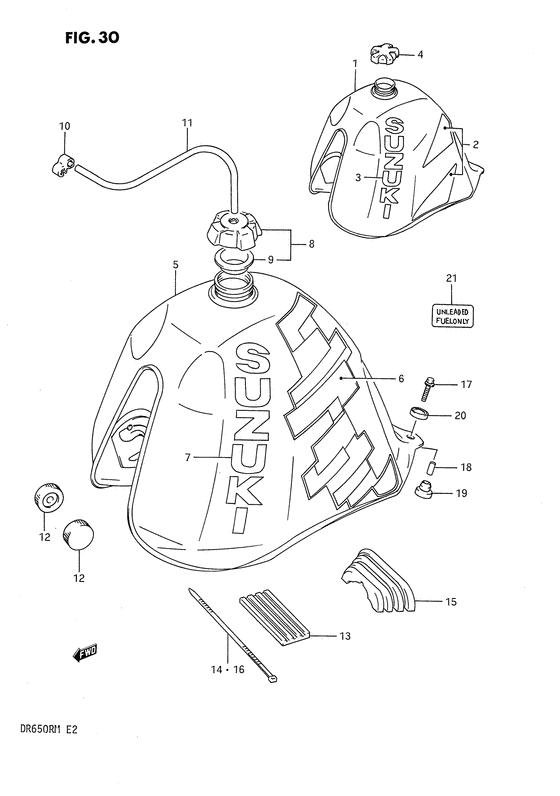

Fuel tank Diagram Suzuki DR650 DR650R
- Year
- 1990
- Model code
- DR650RL(E2) L
- Engine Capacity
- 650
- Model
- DR650R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49100-15A40-3UA
Tank assy, fuel
Model l |
49100-15A40-3UA |
— | ||
|
1
|
1
49100-15A50-3UA
Tank assy, fuel
Model l e22 |
49100-15A50-3UA |
— | ||
|
1
|
1
49100-15A40-3UB
Tank assy, fuel
Model l |
49100-15A40-3UB |
— | ||
|
1
|
1
49100-15A50-3UB
Tank assy, fuel
Model l e22 |
49100-15A50-3UB |
— | ||
|
2
|
2
68110-15A30-27J
Tape set, fuel tank
Model l for 3ua |
68110-15A30-27J |
— | ||
|
2
|
2
68110-15A30-14L
Tape set, fuel tank
Model l for 3ub |
68110-15A30-14L |
— | ||
|
3
|
3
68120-14A00-0NE
Emblem set, fuel tank
Model l for 3ua |
68120-14A00-0NE |
— | ||
|
3
|
3
68120-14A00-14L
Emblem set, fuel tank
Model l for 3ub |
68120-14A00-14L |
— | ||
|
4
|
4
44200-44B00-000
Cap assy,fuel t
Model l |
44200-44B00-000 |
— | ||
|
5
|
5
49200-15A20-3UA
Tank assy, fuel
Model m |
49200-15A20-3UA |
— | ||
|
5
|
5
49200-15A30-3UA
Tank assy, fuel
Model m e22 |
49200-15A30-3UA |
— | ||
|
5
|
5
49200-15A20-G11
Tank assy, fuel
Model m |
49200-15A20-G11 |
— | ||
|
5
|
5
49200-15A30-G11
Tank assy, fuel
Model m e22 |
49200-15A30-G11 |
— | ||
|
6
|
6
68110-15A50-3UE
Tape set, fuel tank
Model m for 3ua |
68110-15A50-3UE |
— | ||
|
6
|
6
68110-15A50-E91
Tape set, fuel tank
Model m for g11 |
68110-15A50-E91 |
— | ||
|
7
|
7
68111-14A20-30H
Emblem (white)
Emblem (white); Model m |
68111-14A20-30H |
— | ||
|
8
|
8
44200-01890-000
CAP SET,FUEL TANK
Cap set, fuel tank; Model m |
44200-01890-000 |
— | ||
|
9
|
9
44248-40400-000
Gasket fuel tank cap
Model m |
44248-40400-000 |
— | ||
| replacements | |||||
|
9
|
9
44248-05210-000
GASKET
Model m |
44248-05210-000 |
— | ||
|
9
|
9
44248-05211-000 GasketModel m |
44248-05211-000 |
from US $2.38 |
||
|
10
|
10
44486-32101-000 CLAMP,FUEL TANK BREATHER HOSEModel m |
44486-32101-000 |
from US $1.67 |
||
|
11
|
11
09352-50823-300
Hose, breather
|
09352-50823-300 |
— | ||
| replacements | |||||
|
11
|
11
44420-44AR0-000 HOSE SET,FUEL |
44420-44AR0-000 |
US $11.95 |
||
|
11
|
11
09352-50823-600
HOSE(5X8.2X600)
|
09352-50823-600 |
— | ||
|
11
|
11
09352-50005-600 Hose(5X8.2X600) |
09352-50005-600 |
US $4.10 |
||
|
12
|
12
09329-10016-000 CUSHIONCushion, front Cushion, front; |
09329-10016-000 |
from US $2.08 |
||
|
13
|
13
44541-14500-000 CUSHION,FUEL TANK UPR FRCushion, upper; |
44541-14500-000 |
from US $7.75 |
||
|
14
|
14
09407-20401-000
Clamp
|
09407-20401-000 |
— | ||
| replacement | |||||
|
14
|
14
09407-25402-000 CLAMP(L:250)Clamp, tilt sw |
09407-25402-000 |
from US $2.24 |
||
|
15
|
15
44542-14A00-000 CUSHION,FUEL TANK RRCushion, fuel tank rr Cushion, rear no.1; |
44542-14A00-000 |
from US $10.38 |
||
|
16
|
16
09407-30402-000 CLAMP(L:300) |
09407-30402-000 |
from US $6.58 |
||
|
17
|
17
01517-06356-000
Bolt, lever
|
01517-06356-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
17
|
17
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
18
|
18
09180-06072-000
Spacer (6.4x9x18)
|
09180-06072-000 |
— | ||
| replacement | |||||
|
18
|
18
09180-06271-000 SPACER(6.5X9X18)Spacer (6.5x9x18) |
09180-06271-000 |
from US $1.51 |
||
|
19
|
19
09320-10020-000
CUSHION
Cushion, rear; |
09320-10020-000 |
— | ||
| replacement | |||||
|
19
|
19
09320-10071-000 Cushion(9X24X18)Cushion, rear; |
09320-10071-000 |
from US $1.98 |
||
|
20
|
20
09320-14013-000 CUSHIONCushion, rear upper Cushion, rear; |
09320-14013-000 |
from US $2.08 |
||
|
21
|
21
86932-73060-000 LABEL,FUEL CAUTIONLabel, fuel caution Plate, fuel caution; E24 |
86932-73060-000 |
US $1.52 |
||
