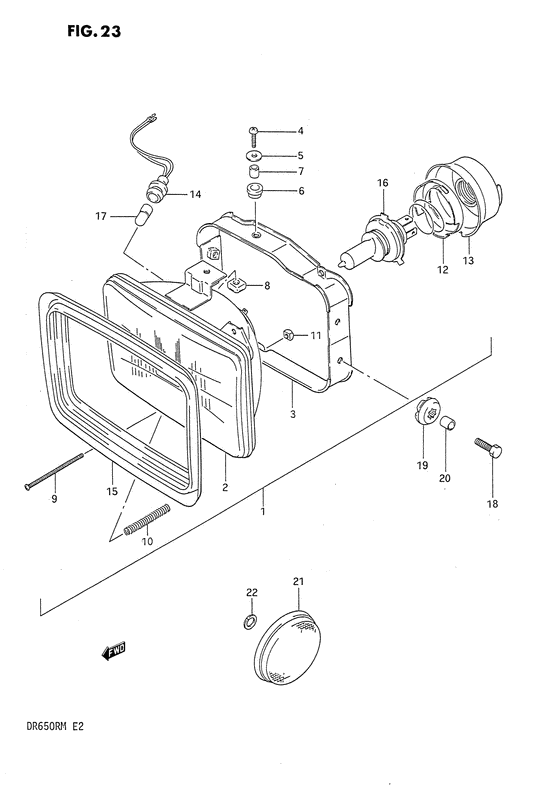

Headlamp Diagram Suzuki DR650 DR650R
- Year
- 1990
- Model code
- DR650RL(E2) L
- Engine Capacity
- 650
- Model
- DR650R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-14C00-999
Headlamp assy
|
35100-14C00-999 |
— | ||
| replacement | |||||
|
1
|
1
35100-14A00-999
HEADLAMP ASSY
|
35100-14A00-999 |
— | ||
|
1
|
1
35100-14C50-999
Headlamp assy
E4,e15,e16,e17,e18,e21,, e22,e25,e34,e39,e53 |
35100-14C50-999 |
— | ||
| replacement | |||||
|
1
|
1
35100-14A51-999
HEADLAMP ASSY
E4,e15,e16,e17,e18,e21,, e22,e25,e34,e39,e53 |
35100-14A51-999 |
— | ||
|
1
|
1
35100-14C30-999
Headlamp assy
E24 |
35100-14C30-999 |
— | ||
| replacements | |||||
|
1
|
1
35100-14A32-999
HEADLAMP ASSY
E24 |
35100-14A32-999 |
— | ||
|
1
|
1
35100-14A33-999 Headlamp AssyE24 |
35100-14A33-999 |
from US $242.37 |
||
|
2
|
2
35121-14C00-000
Unit
|
35121-14C00-000 |
— | ||
| replacement | |||||
|
2
|
2
35121-14A00-000
LAMP UNIT
|
35121-14A00-000 |
— | ||
|
2
|
2
35121-14C50-000
Unit
E4,e15,e16,e17,e18,e21,, e22,e25,e34,e39,e53 |
35121-14C50-000 |
— | ||
| replacements | |||||
|
2
|
2
35121-14A51-000 LAMP UNITE4,e15,e16,e17,e18,e21,, e22,e25,e34,e39,e53 |
35121-14A51-000 |
US $109.30 |
||
|
2
|
2
36116-22630-000 JOINT,RUBBERGrommet E4,e15,e16,e17,e18,e21,, e22,e25,e34,e39,e53 |
36116-22630-000 |
US $3.97 |
||
|
2
|
2
36118-49320-000 SOCKETE4,e15,e16,e17,e18,e21,, e22,e25,e34,e39,e53 |
36118-49320-000 |
US $8.13 |
||
|
2
|
2
35121-14C30-000
Unit
E24 |
35121-14C30-000 |
— | ||
| replacement | |||||
|
2
|
2
35121-14A31-000
LAMP UNIT
E24 |
35121-14A31-000 |
— | ||
|
3
|
3
35141-14A00-000 HOUSINGRing, mounting |
35141-14A00-000 |
from US $37.60 |
||
|
4
|
4
02112-05208-000
Screw
|
02112-05208-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-05207-000 SCREW |
02112-05207-000 |
from US $3.11 |
||
|
5
|
5
35138-45230-000
Washer
|
35138-45230-000 |
— | ||
| replacements | |||||
|
5
|
5
09160-05045-000 WASHER(5.5X18X1)Washer, vacuum sw valve |
09160-05045-000 |
from US $0.86 |
||
|
5
|
5
09160-05003-000
Washer
|
09160-05003-000 |
— | ||
|
6
|
6
35139-45230-000 CUSHION |
35139-45230-000 |
from US $0.96 |
||
|
7
|
7
35133-14A00-000 SPACER |
35133-14A00-000 |
US $2.36 |
||
|
8
|
8
35135-45900-000 NUT |
35135-45900-000 |
from US $1.60 |
||
|
9
|
9
35151-49200-000 Adjust screw,lowerScrew, adjusting; |
35151-49200-000 |
US $3.57 |
||
| replacement | |||||
|
9
|
9
35151-45900-000 SCREWScrew, adjusting; |
35151-45900-000 |
from US $2.83 |
||
|
10
|
10
35154-49200-000 SPRING |
35154-49200-000 |
from US $2.72 |
||
|
11
|
11
35135-45600-000 NUTNut Nut; |
35135-45600-000 |
from US $1.95 |
||
|
12
|
12
35136-01A00-000 HOLDER,BULBHolder, valve |
35136-01A00-000 |
US $7.26 |
||
|
13
|
13
35173-01440-000 COVER,SOCKETCover, socket; |
35173-01440-000 |
from US $8.46 |
||
|
14
|
14
36118-45900-000
Socket
|
36118-45900-000 |
— | ||
| replacement | |||||
|
14
|
14
36118-44B00-000
SOCKET
|
36118-44B00-000 |
— | ||
|
15
|
15
35129-14C00-000
Shade
|
35129-14C00-000 |
— | ||
|
16
|
16
09471-12060-000 BULB(12V60/55W,H4)Bulb (12v,60/55w,h4) Bulb (12v,60/55w,h4); |
09471-12060-000 |
from US $39.19 |
||
|
16
|
16
09471-12061-000
Bulb (12v, 60/55w, h4)
Bulb (12v,60/55w,h4); E4,executed locally |
09471-12061-000 |
— | ||
| replacement | |||||
|
16
|
16
09471-12144-000 BULB(12V60/55W ,YELLOW)Bulb (12v,60/55w,h4); E4,executed locally |
09471-12144-000 |
US $758.10 |
||
|
17
|
17
09471-12001-000 SPEEDOMETER BULB(12V3.4W,STANLEY,A72A)Bulb (12v,3.4w) Bulb (12v,3.4w); E2 |
09471-12001-000 |
from US $1.92 |
||
|
17
|
17
09471-12063-000 BULB(12V4W)Bulb (12v,4w); E4,e15,e16,e17,e18,e21,e22,, e25,e34,e39,e53 |
09471-12063-000 |
US $5.33 |
||
|
18
|
18
09116-06011-000
Bolt (6x20)
|
09116-06011-000 |
— | ||
| replacement | |||||
|
18
|
18
09116-06115-000 BOLT(6X20)Bolt (6x20) |
09116-06115-000 |
from US $1.37 |
||
|
19
|
19
09320-09009-000 CUSHION |
09320-09009-000 |
from US $1.67 |
||
|
20
|
20
09180-06114-000
Spacer
|
09180-06114-000 |
— | ||
| replacement | |||||
|
20
|
20
09180-06307-000 SPACER(6.5X9X10)Spacer (6.5x9x11) |
09180-06307-000 |
from US $1.67 |
||
|
21
|
21
35950-14A00-000 REFLECTOR,REFLEX FRReflex-reflector assy, fr Reflex reflector, fr side; E39 |
35950-14A00-000 |
from US $21.60 |
||
|
22
|
22
08321-21057-000 Washer lockLock washer E39 |
08321-21057-000 |
US $2.59 |
||
| replacement | |||||
|
22
|
22
08321-0105A-000 WASHER,LOCKE39 |
08321-0105A-000 |
from US $0.76 |
||
