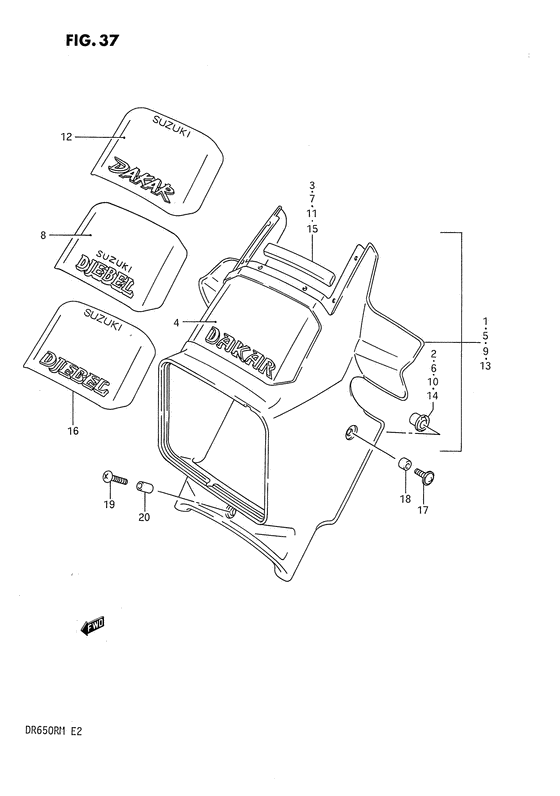

Headlamp housing Diagram Suzuki DR650 DR650R
- Year
- 1990
- Model code
- DR650RL(E2) L
- Engine Capacity
- 650
- Model
- DR650R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51800-15A60-19X
Cover, headlamp (white)
Cover, headlamp (white); Model l |
51800-15A60-19X |
— | ||
|
1
|
1
51800-15A60-14L
Cover, headlamp (white)
Cover, headlamp (white); Model l |
51800-15A60-14L |
— | ||
|
2
|
2
51821-15A00-30H
Bush,headlamp c
Bush, side (white); Model l |
51821-15A00-30H |
— | ||
|
2
|
2
51821-15A00-14L
Bush, side (white)
Bush, side (white); Model l |
51821-15A00-14L |
— | ||
|
3
|
3
51827-15A00-000
Cushion,headlam
Cushion, upper; Model l |
51827-15A00-000 |
— | ||
|
4
|
4
68725-14A30-3UE
Tape
Model l for 19x |
68725-14A30-3UE |
— | ||
|
4
|
4
68725-14A30-3UD
Tape
Model l for 14l |
68725-14A30-3UD |
— | ||
|
5
|
5
51800-15A50-19X
Cover, headlamp (white)
Cover, headlamp (white); Model l e4,e34,e53 |
51800-15A50-19X |
— | ||
|
5
|
5
51800-15A50-14L
Cover, headlamp (white)
Cover, headlamp (white); Model l e4,e34,e53 |
51800-15A50-14L |
— | ||
|
6
|
6
51821-15A00-30H
Bush,headlamp c
Bush, side (white); Model l e4,e34,e53 |
51821-15A00-30H |
— | ||
|
6
|
6
51821-15A00-14L
Bush, side (white)
Bush, side (white); Model l e4,e34,e53 |
51821-15A00-14L |
— | ||
|
7
|
7
51827-15A00-000
Cushion,headlam
Cushion, upper; Model l e4,e34,e53 |
51827-15A00-000 |
— | ||
|
8
|
8
68725-14A20-3UE
Tape
Model l e4,e34,e53,for 19x |
68725-14A20-3UE |
— | ||
|
8
|
8
68725-14A20-3UD
Tape
Model l e4,e34,e53,for 14l |
68725-14A20-3UD |
— | ||
|
9
|
9
51800-14A20-30H
Cover, headlamp (white)
Cover, headlamp (white); Model m for 3ua |
51800-14A20-30H |
— | ||
|
9
|
9
51800-14A20-19X
Cover, headlamp (white)
Cover, headlamp (white); Model m for g11 |
51800-14A20-19X |
— | ||
|
10
|
10
51821-15A00-30H
Bush,headlamp c
Bush, side (white); Model m |
51821-15A00-30H |
— | ||
|
11
|
11
51827-15A00-000
Cushion,headlam
Cushion, upper; Model m |
51827-15A00-000 |
— | ||
|
12
|
12
68725-14A70-3UE
TAPE,HEADLAMP COVER
Model m for 30h |
68725-14A70-3UE |
— | ||
|
12
|
12
68725-14A70-G09
Tape
Model m for 19x |
68725-14A70-G09 |
— | ||
|
13
|
13
51800-14A10-30H
Cover, headlamp (white)
Cover, headlamp (white); Model m e4,e34,e53,for 3ua |
51800-14A10-30H |
— | ||
|
13
|
13
51800-14A10-19X
Cover, headlamp (white)
Cover, headlamp (white); Model m e4,e34,e53,for g11 |
51800-14A10-19X |
— | ||
|
14
|
14
51821-15A00-30H
Bush,headlamp c
Bush,, side (white); Model m |
51821-15A00-30H |
— | ||
|
15
|
15
51827-15A00-000
Cushion,headlam
Cushion, upper; Model m |
51827-15A00-000 |
— | ||
|
16
|
16
68725-14A80-3UE
Tape
Model m e4,e34,e53,for 3ua |
68725-14A80-3UE |
— | ||
|
16
|
16
68725-14A80-G09
Tape
Model m e4,e34,e53,for 19x |
68725-14A80-G09 |
— | ||
|
17
|
17
09136-06061-000 SCREW(6X16)Screw, side; |
09136-06061-000 |
from US $3.86 |
||
|
18
|
18
09180-06152-000
Spacer
|
09180-06152-000 |
— | ||
| replacement | |||||
|
18
|
18
09180-06262-000 SPACER(6.5X9X8.5)Spacer (6.5x9x8.5) |
09180-06262-000 |
from US $1.52 |
||
|
19
|
19
02142-06405-000
Screw, cover lower
|
02142-06405-000 |
— | ||
| replacement | |||||
|
19
|
19
02142-0640B-000 SCREW |
02142-0640B-000 |
from US $3.71 |
||
|
20
|
20
09180-06170-000
Spacer (l:31.5)
|
09180-06170-000 |
— | ||
| replacement | |||||
|
20
|
20
09180-06277-000 SPACER(6.5X9X31.5)Spacer (l:31.5) |
09180-06277-000 |
from US $6.24 |
||
