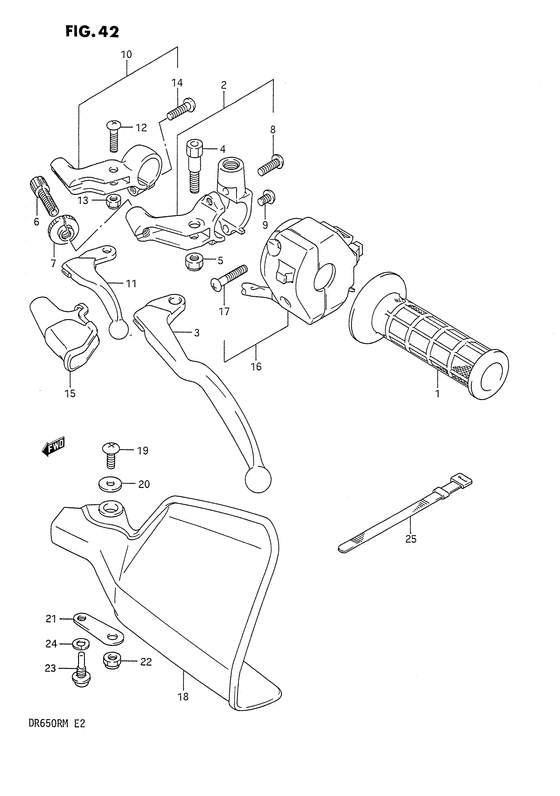

Left handle switch Diagram Suzuki DR650 DR650R
- Year
- 1990
- Model code
- DR650RL(E2) L
- Engine Capacity
- 650
- Model
- DR650R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57211-12D00-000 GRIP,LGrip, lh |
57211-12D00-000 |
from US $10.24 |
||
|
2
|
2
57500-12D00-000
Lever assy,clut
|
57500-12D00-000 |
— | ||
|
3
|
3
57620-14310-000 LEVER,CLUTCH |
57620-14310-000 |
from US $31.94 |
||
|
4
|
4
57631-05D00-000 BOLT,LEVER SET |
57631-05D00-000 |
from US $9.44 |
||
|
5
|
5
08319-21068-000
U nut
Nut; |
08319-21068-000 |
— | ||
| replacement | |||||
|
5
|
5
08319-2106A-000 NUTNut; |
08319-2106A-000 |
from US $1.12 |
||
|
6
|
6
57441-11010-000 ADJUSTER,CABLE |
57441-11010-000 |
from US $2.89 |
||
|
7
|
7
57442-05D00-000 NUT,LOCK |
57442-05D00-000 |
from US $2.72 |
||
|
8
|
8
02112-05164-000 SCREWScrew, rect & relay cover Screw, upper; |
02112-05164-000 |
from US $3.59 |
||
|
9
|
9
09125-05066-000 SCREW(5X25) |
09125-05066-000 |
from US $0.81 |
||
|
10
|
10
58700-38200-000
Lever assy deco
|
58700-38200-000 |
— | ||
| replacement | |||||
|
10
|
10
58700-38210-000 LEVER ASSY,DECOMP |
58700-38210-000 |
from US $147.20 |
||
|
11
|
11
58731-38200-000 LEVER,DECOMP |
58731-38200-000 |
from US $32.38 |
||
|
12
|
12
57431-01012-000 BOLT,LEVER PIVOT |
57431-01012-000 |
from US $2.24 |
||
|
13
|
13
57633-38200-000
NUT
|
57633-38200-000 |
— | ||
| replacement | |||||
|
13
|
13
08319-2105B-000 NUT |
08319-2105B-000 |
from US $4.22 |
||
|
14
|
14
02112-06205-000
Screw
|
02112-06205-000 |
— | ||
| replacements | |||||
|
14
|
14
02112-0620B-000 SCREW |
02112-0620B-000 |
US $0.80 |
||
|
14
|
14
02112-0620A-000 SCREWScrew, holder |
02112-0620A-000 |
from US $0.80 |
||
|
15
|
15
57342-37101-000 COVER,DECOMP LEVER DUSTCover, decomp lever Cover, decomp lever; |
57342-37101-000 |
from US $9.52 |
||
|
16
|
16
37400-14A50-000
Switch assy, handle lh
|
37400-14A50-000 |
— | ||
|
17
|
17
02112-05305-000
Screw
|
02112-05305-000 |
— | ||
| replacement | |||||
|
17
|
17
02112-0530B-000 SCREW |
02112-0530B-000 |
from US $0.80 |
||
|
18
|
18
57541-05D00-30H
Cover, knuckle,lh (white)
Model l for 3ua, model m for 8wl |
57541-05D00-30H |
— | ||
| replacement | |||||
|
18
|
18
57541-05D01-30H COVER,KNUCKLE,LCover, knuckle lh (white) Model l for 3ua, model m for 8wl |
57541-05D01-30H |
from US $28.80 |
||
|
18
|
18
57541-05D00-14L
Cover, knuckle, lh (white)
Cover, knuckle,lh (white); Model l for 3ub |
57541-05D00-14L |
— | ||
| replacement | |||||
|
18
|
18
57541-05D01-30H COVER,KNUCKLE,LCover, knuckle lh (white) Cover, knuckle,lh (white); Model l for 3ub |
57541-05D01-30H |
from US $28.80 |
||
|
18
|
18
57541-05D00-33N
Cover, knuckle,lh (blue)
Cover, knuckle,lh (blue); Model m for 3ua |
57541-05D00-33N |
— | ||
|
19
|
19
09125-05042-000 SCREW(5X10) |
09125-05042-000 |
from US $0.91 |
||
|
20
|
20
09160-05017-000
Washer
|
09160-05017-000 |
— | ||
| replacement | |||||
|
20
|
20
09160-05043-000 WASHER(5.5X16X1.2)Washer, 5.5x16x1.20 |
09160-05043-000 |
from US $0.91 |
||
|
21
|
21
57542-05D00-000 PLATE,KNUCKLE COVER,L LWRPlate, knuckle cover lh Plate, cover,lh; |
57542-05D00-000 |
from US $5.68 |
||
|
22
|
22
08319-21068-000
U nut
Nut; |
08319-21068-000 |
— | ||
| replacement | |||||
|
22
|
22
08319-2106A-000 NUTNut; |
08319-2106A-000 |
from US $1.12 |
||
|
23
|
23
09139-06010-000
Screw
|
09139-06010-000 |
— | ||
| replacement | |||||
|
23
|
23
09139-06086-000 SCREW(6X19) |
09139-06086-000 |
from US $4.28 |
||
|
24
|
24
08321-21067-000
Lock washer
|
08321-21067-000 |
— | ||
| replacement | |||||
|
24
|
24
08321-01067-000 WASHER,LOCK |
08321-01067-000 |
from US $0.76 |
||
|
25
|
25
09407-12402-000 CLAMP(L:120)Clamp, wiring harness |
09407-12402-000 |
from US $1.98 |
||
