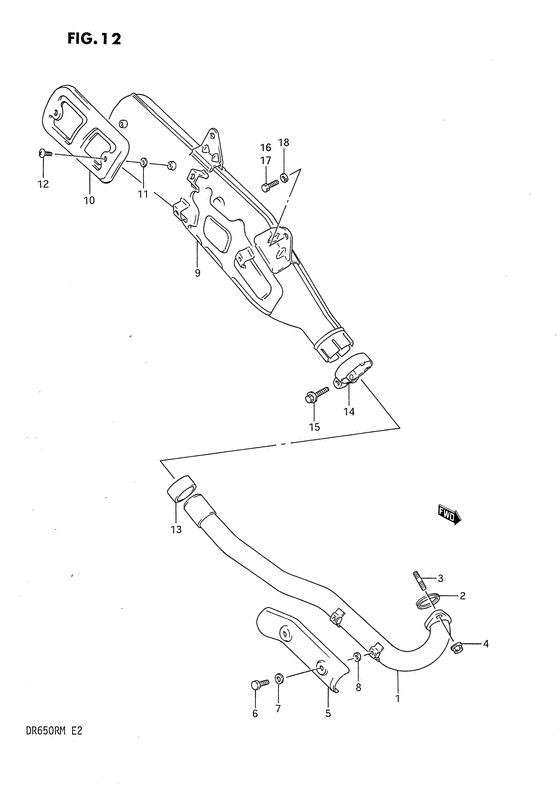

Muffler Diagram Suzuki DR650 DR650R
- Year
- 1990
- Model code
- DR650RL(E2) L
- Engine Capacity
- 650
- Model
- DR650R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14150-14A20-000
Pipe, exhaust
|
14150-14A20-000 |
— | ||
| replacement | |||||
|
1
|
1
14150-14A22-000
Pipe,exhaust
|
14150-14A22-000 |
— | ||
|
2
|
2
14181-01D00-000 GASKET,EXHAUST PIPEGasket, exhaust pipe (na); |
14181-01D00-000 |
from US $2.74 |
||
|
3
|
3
01421-08205-000
Stud 8x20
|
01421-08205-000 |
— | ||
| replacement | |||||
|
3
|
3
01421-0820A-000 BOLT,STUD |
01421-0820A-000 |
from US $3.03 |
||
|
4
|
4
08316-26086-000
Nut
Model l |
08316-26086-000 |
— | ||
| replacements | |||||
|
4
|
4
08316-2008A-000 NUTModel l |
08316-2008A-000 |
from US $0.80 |
||
|
4
|
4
08316-20087-000 NUTModel l |
08316-20087-000 |
from US $3.77 |
||
|
4
|
4
08316-26085-000
Nut
Model m |
08316-26085-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-2008A-000 NUTModel m |
08316-2008A-000 |
from US $0.80 |
||
|
5
|
5
14180-12D00-000
COVER,EXHAUST PIPE
|
14180-12D00-000 |
— | ||
|
6
|
6
09139-06041-000
Screw (6x10)
|
09139-06041-000 |
— | ||
| replacement | |||||
|
6
|
6
09139-06076-000 SCREW(6X10)Screw, muffler cover |
09139-06076-000 |
from US $3.20 |
||
|
7
|
7
09160-06056-000 WASHER(6.5X18X1)Washer (6.5x18x1); |
09160-06056-000 |
from US $0.76 |
||
|
8
|
8
09168-06122-000 GASKET(6X16X1.4)Gasket (5.8x16x1.4,na); |
09168-06122-000 |
from US $4.32 |
||
|
9
|
9
14310-15A10-000
BODY,MUFFLER
|
14310-15A10-000 |
— | ||
|
10
|
10
14781-14A10-000
Cover,muffler
|
14781-14A10-000 |
— | ||
|
11
|
11
14181-14A00-H17 Gasket (na) |
14181-14A00-H17 |
US $2.71 |
||
| replacement | |||||
|
11
|
11
09168-06121-000 GASKET(5.8X13X1.8)Gasket,heat guard |
09168-06121-000 |
from US $2.71 |
||
|
12
|
12
02142-06104-000
Screw
|
02142-06104-000 |
— | ||
| replacements | |||||
|
12
|
12
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
12
|
12
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
13
|
13
14771-44B10-000 Connector (na) |
14771-44B10-000 |
US $20.20 |
||
| replacement | |||||
|
13
|
13
14771-44B00-000 CONNECTOR,MUFFLERConnector,muffler |
14771-44B00-000 |
from US $19.69 |
||
|
14
|
14
14469-05A00-000
CLAMP,MUFFLER CONNECTOR LH
|
14469-05A00-000 |
— | ||
|
15
|
15
01517-08405-000
Bolt
|
01517-08405-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
16
|
16
09106-08107-000 BOLT(8X20)Bolt (8x20); Fr |
09106-08107-000 |
from US $3.20 |
||
|
17
|
17
09106-08106-000 BOLT(8X20)Bolt (8x20); Rr |
09106-08106-000 |
from US $4.13 |
||
|
18
|
18
09160-08053-000
Washer cylinder (Steel)
Washer (8.5x19x2.3); |
09160-08053-000 |
— | ||
| replacement | |||||
|
18
|
18
09160-08039-000 WASHER(8.5X19X2.3) STEELWasher (8.5x19x2.3); |
09160-08039-000 |
from US $1.12 |
||
