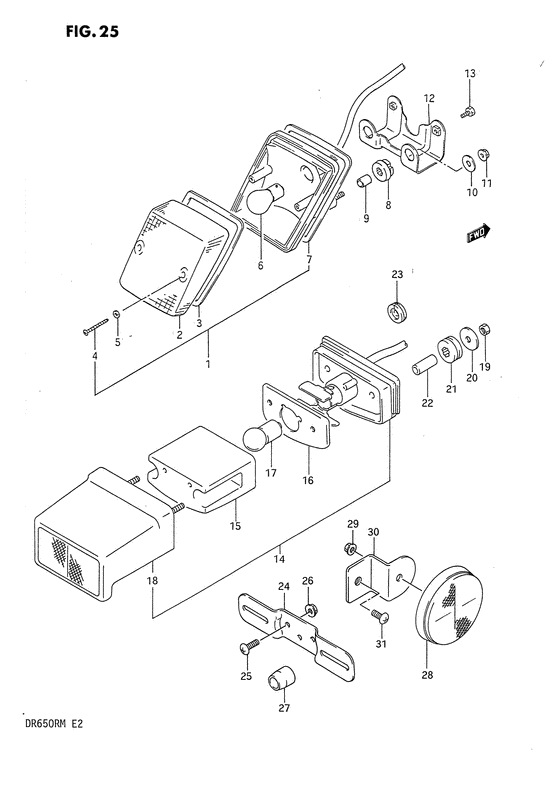

Rear combination lamp Diagram Suzuki DR650 DR650R
- Year
- 1990
- Model code
- DR650RL(E2) L
- Engine Capacity
- 650
- Model
- DR650R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35710-14A50-000
Lamp assy, rear combination
Model l |
35710-14A50-000 |
— | ||
| replacement | |||||
|
1
|
1
35710-28A20-999
LAMP ASSY,RR COMBINATION
Model l |
35710-28A20-999 |
— | ||
|
1
|
1
35710-14A51-000
Lamp assy, rear combination
Model m |
35710-14A51-000 |
— | ||
| replacement | |||||
|
1
|
1
35710-28A20-999
LAMP ASSY,RR COMBINATION
Model m |
35710-28A20-999 |
— | ||
|
2
|
2
35712-14A00-000 LENS |
35712-14A00-000 |
from US $30.73 |
||
|
3
|
3
35713-14A00-000
Gasket
|
35713-14A00-000 |
— | ||
| replacement | |||||
|
3
|
3
35713-31D00-000 GASKET |
35713-31D00-000 |
from US $4.42 |
||
|
4
|
4
03211-04258-000
Screw
|
03211-04258-000 |
— | ||
| replacement | |||||
|
4
|
4
03211-0425B-000 SCREW |
03211-0425B-000 |
from US $0.77 |
||
|
5
|
5
35627-43010-000 GASKETGasket Gasket; |
35627-43010-000 |
from US $1.68 |
||
|
6
|
6
09471-12083-000 BULB(12V21/5W) |
09471-12083-000 |
from US $4.75 |
||
| replacement | |||||
|
6
|
6
09471-12128-000 BULB(12V21/5W,BF141-49642A) |
09471-12128-000 |
from US $7.20 |
||
|
7
|
7
35733-14A00-000
Gasket
|
35733-14A00-000 |
— | ||
|
8
|
8
09320-09018-000 CUSHIONCushion, rr comb |
09320-09018-000 |
from US $3.35 |
||
|
9
|
9
09180-06030-000
Spacer, ignition coil lower
|
09180-06030-000 |
— | ||
| replacement | |||||
|
9
|
9
09180-06310-000 SPACER(6.5X10X10)Spacer (6.8x10x10) |
09180-06310-000 |
from US $1.67 |
||
|
10
|
10
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
10
|
10
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
11
|
11
08310-12066-000
Nut
|
08310-12066-000 |
— | ||
| replacements | |||||
|
11
|
11
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
11
|
11
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
12
|
12
35726-14A00-000
Bracket rr comb
|
35726-14A00-000 |
— | ||
|
13
|
13
01134-06126-000
Bolt
|
01134-06126-000 |
— | ||
| replacements | |||||
|
13
|
13
01570-0612B-000 BOLTBolt, upper |
01570-0612B-000 |
US $0.80 |
||
|
13
|
13
01570-0612A-000 BOLTBolt |
01570-0612A-000 |
from US $0.80 |
||
|
14
|
14
35910-03D20-000
Lamp assy, license
|
35910-03D20-000 |
— | ||
|
15
|
15
35912-38A20-000 LENS |
35912-38A20-000 |
US $10.71 |
||
|
16
|
16
35913-38A30-000 GASKET,LICENSE LAMP |
35913-38A30-000 |
from US $1.62 |
||
|
17
|
17
09471-12140-000 BULB(12V5W) |
09471-12140-000 |
from US $2.03 |
||
|
18
|
18
35917-03D20-000
REFLEX REFLECTOR & COVER
Reflector; |
35917-03D20-000 |
— | ||
|
19
|
19
09140-04002-000 NUT |
09140-04002-000 |
from US $1.75 |
||
|
20
|
20
09160-04018-000
WASHER(4.3X20X1.4)
|
09160-04018-000 |
— | ||
|
21
|
21
09320-09009-000 CUSHION |
09320-09009-000 |
from US $1.67 |
||
|
22
|
22
09180-04018-000
Spacer
|
09180-04018-000 |
— | ||
|
23
|
23
09308-07013-000
GROMMET
Grommet, lead wire; |
09308-07013-000 |
— | ||
|
24
|
24
35927-14C00-000
BRACKET,LICENSE PLATE
|
35927-14C00-000 |
— | ||
|
25
|
25
02142-06164-000
Screw
|
02142-06164-000 |
— | ||
| replacement | |||||
|
25
|
25
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
26
|
26
08316-16066-000
Nut
|
08316-16066-000 |
— | ||
| replacement | |||||
|
26
|
26
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
27
|
27
09320-08052-000
Cushion
|
09320-08052-000 |
— | ||
|
28
|
28
35950-14A10-000
Reflex reflector assy, fr side
Reflex reflector, rear side; E39 |
35950-14A10-000 |
— | ||
| replacement | |||||
|
28
|
28
35950-14A11-000 REFLEX REFLECTOR ASSY,FR SIDEReflex reflector, rear side; E39 |
35950-14A11-000 |
from US $9.58 |
||
|
29
|
29
08316-26055-000
Nut
E39 |
08316-26055-000 |
— | ||
| replacement | |||||
|
29
|
29
08316-2005A-000 NUTE39 |
08316-2005A-000 |
from US $0.80 |
||
|
30
|
30
35975-14C00-000
Bracket,rear si
E39 |
35975-14C00-000 |
— | ||
|
30
|
30
35976-14C00-000
Bracket,rear si
E39 |
35976-14C00-000 |
— | ||
|
31
|
31
02142-06104-000
Screw
E39 |
02142-06104-000 |
— | ||
| replacements | |||||
|
31
|
31
02142-0610B-000 SCREWStopper, cl rlse cam shaft E39 |
02142-0610B-000 |
from US $0.76 |
||
|
31
|
31
02142-0610A-000 SCREWE39 |
02142-0610A-000 |
from US $0.80 |
||
