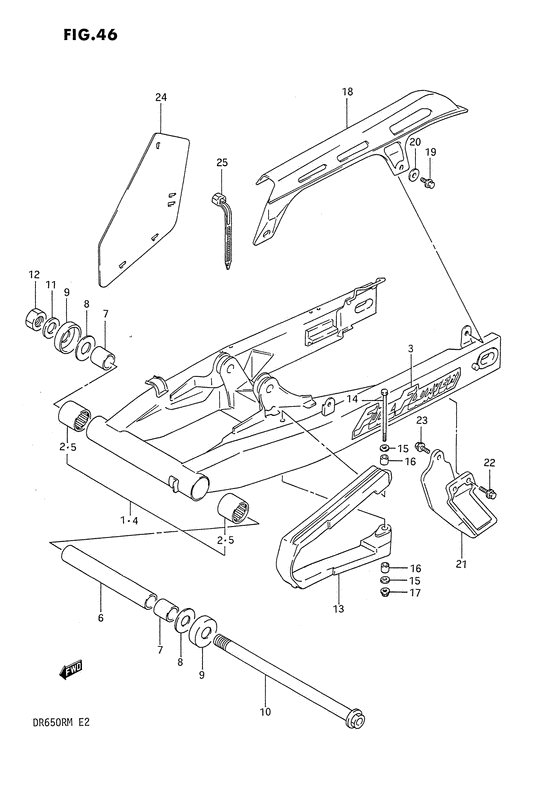

Rear swinging arm Diagram Suzuki DR650 DR650R
- Year
- 1990
- Model code
- DR650RL(E2) L
- Engine Capacity
- 650
- Model
- DR650R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61000-12D10-13L
Swinging arm assy, rear (silve
Swinging arm assy, rear (silver); Model l |
61000-12D10-13L |
— | ||
|
2
|
2
09263-22022-000 BEARING(22X29X20)Bearing, pivot Model l |
09263-22022-000 |
from US $28.12 |
||
|
3
|
3
68381-44B00-019
Emblem,swgarm
Emblem (black); Model l |
68381-44B00-019 |
— | ||
|
4
|
4
61000-14A70-13L
Swinging arm assy, rear (silver)
Model m |
61000-14A70-13L |
— | ||
| replacement | |||||
|
4
|
4
61000-12D31-13L
Swingingarm ass
Model m |
61000-12D31-13L |
— | ||
|
5
|
5
09263-22022-000 BEARING(22X29X20)Bearing, pivot Model m |
09263-22022-000 |
from US $28.12 |
||
|
6
|
6
61282-14A00-000
Spacer swg arm
|
61282-14A00-000 |
— | ||
|
7
|
7
61251-32410-000 SPACER,RR SWGARM PIVOTSpacer (16*22*22) |
61251-32410-000 |
from US $13.76 |
||
|
8
|
8
08211-16341-000 WASHERWasher; |
08211-16341-000 |
from US $1.52 |
||
|
9
|
9
61262-14A00-000
SEAL,RR SWGARM PIVOT DUST
Dust seat; |
61262-14A00-000 |
— | ||
| replacement | |||||
|
9
|
9
61262-14A01-000 SealDust seat; |
61262-14A01-000 |
from US $9.62 |
||
|
10
|
10
61211-12D00-000
Shaft
|
61211-12D00-000 |
— | ||
| replacement | |||||
|
10
|
10
61211-12D10-000
Shaft,rear swin
|
61211-12D10-000 |
— | ||
|
11
|
11
08322-11165-000
Washer
|
08322-11165-000 |
— | ||
| replacement | |||||
|
11
|
11
08322-0116A-000 WASHER |
08322-0116A-000 |
from US $0.80 |
||
|
12
|
12
08319-21165-000
Nut
|
08319-21165-000 |
— | ||
| replacement | |||||
|
12
|
12
08319-2116A-000 NUT |
08319-2116A-000 |
from US $7.83 |
||
|
13
|
13
61273-12D00-000
Buffer, chain touch defence
|
61273-12D00-000 |
— | ||
| replacements | |||||
|
13
|
13
61273-12D20-000
BUFFER,CHAIN TOUCH DEFENSE
|
61273-12D20-000 |
— | ||
|
13
|
13
61273-12D21-000 Buffer,chain Touch Defense |
61273-12D21-000 |
US $69.34 |
||
|
14
|
14
61275-44B00-000
BOLT,TOUCH DEFENSE FTG
|
61275-44B00-000 |
— | ||
|
15
|
15
09160-05036-000
Washer 5.5x14x1
|
09160-05036-000 |
— | ||
| replacement | |||||
|
15
|
15
09160-05048-000 WASHER(5.5X14X1.2) |
09160-05048-000 |
from US $0.76 |
||
|
16
|
16
09180-06165-000
Spacer (6.6x9x6.5)
|
09180-06165-000 |
— | ||
| replacement | |||||
|
16
|
16
09180-06257-000 SPACER(6.5X9X6.5) |
09180-06257-000 |
from US $3.86 |
||
|
17
|
17
08319-31056-000
Nut
|
08319-31056-000 |
— | ||
| replacement | |||||
|
17
|
17
08319-3105B-000 NUT |
08319-3105B-000 |
from US $1.37 |
||
|
18
|
18
61310-14A00-000
CASE,CHAIN
|
61310-14A00-000 |
— | ||
|
19
|
19
01517-06105-000
Plug, oil gallery
|
01517-06105-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
19
|
19
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
20
|
20
09169-06026-000 WASHERWasher; |
09169-06026-000 |
from US $1.12 |
||
|
21
|
21
61341-14A03-000 GUIDE,CHAIN |
61341-14A03-000 |
from US $36.21 |
||
|
22
|
22
01517-06128-000
Bolt
|
01517-06128-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
23
|
23
01517-06167-000
Bolt
|
01517-06167-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-06167-000 BOLT |
01550-06167-000 |
from US $0.68 |
||
|
24
|
24
61391-14A00-000
Guard, chain
E16 |
61391-14A00-000 |
— | ||
|
25
|
25
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap E16 |
09407-14403-000 |
from US $2.08 |
||
