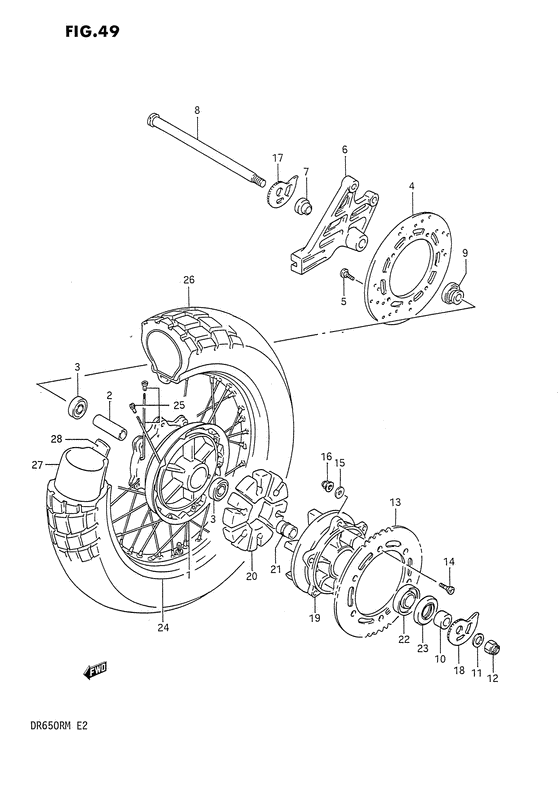

Rear wheel Diagram Suzuki DR650 DR650R
- Year
- 1990
- Model code
- DR650RL(E2) L
- Engine Capacity
- 650
- Model
- DR650R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64110-44B10-000
Hub,comp,rear w
|
64110-44B10-000 |
— | ||
|
2
|
2
09180-17071-000 SPACER(17.5X25X78) |
09180-17071-000 |
US $143.20 |
||
|
3
|
3
08124-63037-000 BEARINGBearing |
08124-63037-000 |
from US $10.80 |
||
|
4
|
4
69211-44B00-000 DISC,RR BRAKE |
69211-44B00-000 |
US $556.16 |
||
|
5
|
5
59421-03A01-000
Bolt,disc
|
59421-03A01-000 |
— | ||
| replacement | |||||
|
5
|
5
09106-08155-000 BOLT(8X20)Bolt, brake disc |
09106-08155-000 |
from US $1.33 |
||
|
6
|
6
69721-44B00-000
BRACKET,RR CALIPER
|
69721-44B00-000 |
— | ||
|
7
|
7
09180-17096-000
Spacer 17x21x10
|
09180-17096-000 |
— | ||
|
8
|
8
64711-44B10-000
Axle,rear
|
64711-44B10-000 |
— | ||
|
9
|
9
64750-38211-000
SPACER,RR AXLE,L
Spacer, rh; |
64750-38211-000 |
— | ||
|
10
|
10
09180-17090-000 SPACER(17X33X22.4)Spacer,lh |
09180-17090-000 |
from US $14.67 |
||
|
11
|
11
09160-17013-000 Washer (17x30x3.2) |
09160-17013-000 |
US $1.93 |
||
| replacement | |||||
|
11
|
11
09160-17050-000 WASHER(17X30X3.2) |
09160-17050-000 |
from US $3.35 |
||
|
12
|
12
09159-16002-000 NUT |
09159-16002-000 |
from US $6.49 |
||
|
13
|
13
64511-14A00-000 Sprocket, rear (nt:42) |
64511-14A00-000 |
US $83.20 |
||
| replacement | |||||
|
13
|
13
64511-14A01-000 SPROCKET,RR(NT:42)Sprocket, rear (nt:42) |
64511-14A01-000 |
from US $106.72 |
||
|
14
|
14
09120-08010-000 BOLT(8X30.5)Screw |
09120-08010-000 |
from US $1.52 |
||
|
15
|
15
08322-11088-000
Washer
|
08322-11088-000 |
— | ||
| replacement | |||||
|
15
|
15
08322-01087-000 WASHERLock washer |
08322-01087-000 |
from US $0.76 |
||
|
16
|
16
08319-31087-000 NUT |
08319-31087-000 |
from US $1.67 |
||
|
17
|
17
61411-12D00-000
Adjuster, chain, rh
|
61411-12D00-000 |
— | ||
| replacement | |||||
|
17
|
17
61411-31D00-000
ADJUSTER,CHAIN,R
|
61411-31D00-000 |
— | ||
|
18
|
18
61421-12D00-000
Adjuster, chain, lh
|
61421-12D00-000 |
— | ||
| replacement | |||||
|
18
|
18
61421-31D00-000
ADJUSTER,CHAIN,L
|
61421-31D00-000 |
— | ||
|
19
|
19
64611-44B10-000
Drum,rear sproc
Drum, sprocket; |
64611-44B10-000 |
— | ||
|
20
|
20
64651-44B01-000 ABSORBER,RR HUB SHOCK |
64651-44B01-000 |
from US $16.46 |
||
|
21
|
21
64733-31300-000 RETAINER,RR SPROCKET DRUM |
64733-31300-000 |
from US $15.52 |
||
|
22
|
22
09262-25073-000 BEARING(25X62X17)Bearing (25x62x17) |
09262-25073-000 |
from US $14.59 |
||
|
23
|
23
09285-33001-000 SEAL,OIL(33X62X7)Seal,dust Seal, dust; |
09285-33001-000 |
from US $20.91 |
||
|
24
|
24
65311-44B10-000
Rim,rear wheel,
Rim, rear wheel (mt2.50x17); |
65311-44B10-000 |
— | ||
| replacement | |||||
|
24
|
24
65311-44B30-000
Rim,rear wheel,
Rim, rear wheel (mt2.50x17); |
65311-44B30-000 |
— | ||
|
25
|
25
65320-44B10-000
SPOKE SET,RR
|
65320-44B10-000 |
— | ||
|
26
|
26
65100-14A20-000
Tire, rear (120/90-17 64s)
Bridgestone |
65100-14A20-000 |
— | ||
| replacement | |||||
|
26
|
26
65100-12E00-000
Tire,rear,120/9
Bridgestone |
65100-12E00-000 |
— | ||
|
27
|
27
65200-13A20-000
Tube
|
65200-13A20-000 |
— | ||
| replacement | |||||
|
27
|
27
65200-49030-000
TUBE ASSY,WHEEL INNER
|
65200-49030-000 |
— | ||
|
28
|
28
65261-44B10-000
PROTECTOR,WHL INR TUBE
|
65261-44B10-000 |
— | ||
