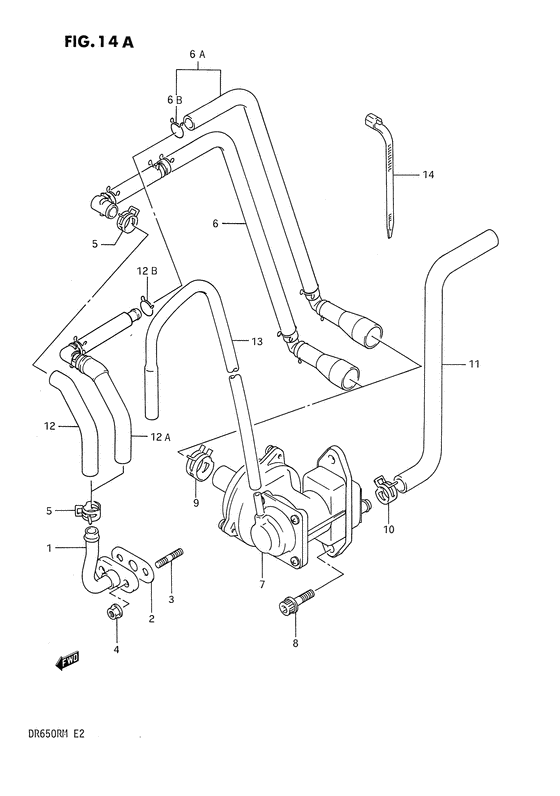

Second air (E18) Diagram Suzuki DR650 DR650R
- Year
- 1990
- Model code
- DR650RL(E2) L
- Engine Capacity
- 650
- Model
- DR650R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18420-14A10-000
Pipe,2nd air
|
18420-14A10-000 |
— | ||
|
2
|
2
18441-12D00-000
Gasket
|
18441-12D00-000 |
— | ||
| replacement | |||||
|
2
|
2
18441-45C01-000 GASKET,2ND AIR PIPE |
18441-45C01-000 |
from US $2.28 |
||
|
3
|
3
01421-06165-000
Stud 6x16
Stud bolt; |
01421-06165-000 |
— | ||
| replacement | |||||
|
3
|
3
01421-0616A-000 BOLT,STUDStud bolt; |
01421-0616A-000 |
from US $1.07 |
||
|
4
|
4
08316-16064-000
Nut
|
08316-16064-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
09401-13408-000
Clip
Model l |
09401-13408-000 |
— | ||
| replacement | |||||
|
5
|
5
09401-13417-000 CLIPModel l |
09401-13417-000 |
from US $1.60 |
||
|
5
|
5
09401-13408-000
Clip
Model m |
09401-13408-000 |
— | ||
| replacement | |||||
|
5
|
5
09401-13417-000 CLIPModel m |
09401-13417-000 |
from US $1.60 |
||
|
6
|
6
18440-14A10-000
Hose assy
Model l |
18440-14A10-000 |
— | ||
|
6A
|
6A
18440-14A11-000
Hose assy
Model m |
18440-14A11-000 |
— | ||
|
6B
|
6B
13828-00020-000 Clip, breatherModel m |
13828-00020-000 |
US $1.93 |
||
| replacement | |||||
|
6B
|
6B
09401-14401-000 CLIPModel m |
09401-14401-000 |
from US $3.47 |
||
|
7
|
7
18450-12D00-000
Valve assy,2nd air reed
|
18450-12D00-000 |
— | ||
|
8
|
8
07120-06205-000
Bolt, pillion
|
07120-06205-000 |
— | ||
| replacement | |||||
|
8
|
8
07120-0620B-000 BOLT |
07120-0620B-000 |
from US $0.96 |
||
|
9
|
9
09401-23403-000 CLIPClip, air hose no.5 |
09401-23403-000 |
US $28 |
||
|
10
|
10
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
11
|
11
18432-14A10-000
Hose,2nd air no.4
|
18432-14A10-000 |
— | ||
|
12
|
12
18431-14A10-000
Hose, 2nd air no.2
Model l |
18431-14A10-000 |
— | ||
|
12A
|
12A
18430-14A10-000
Hose, 2nd air no.2
Model m |
18430-14A10-000 |
— | ||
|
12B
|
12B
13828-00020-000 Clip, breatherModel m |
13828-00020-000 |
US $1.93 |
||
| replacement | |||||
|
12B
|
12B
09401-14401-000 CLIPModel m |
09401-14401-000 |
from US $3.47 |
||
|
13
|
13
09359-40701-300
Hose,2nd air no.3
L:300->50 |
09359-40701-300 |
— | ||
| replacements | |||||
|
13
|
13
09359-40701-600
HOSE(4X7X600)
L:300->50 |
09359-40701-600 |
— | ||
|
13
|
13
09359-40703-600 Hose(4X7X600)L:300->50 |
09359-40703-600 |
from US $7.03 |
||
|
14
|
14
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
