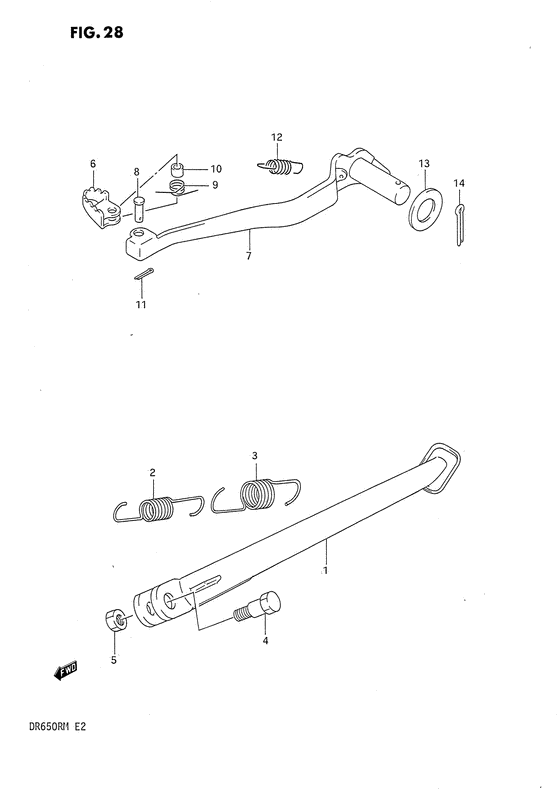

Stand - rear brake Diagram Suzuki DR650 DR650R
- Year
- 1990
- Model code
- DR650RL(E2) L
- Engine Capacity
- 650
- Model
- DR650R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42310-14A21-29F
Stand, prop (brown)
Stand, prop (brown); Model l |
42310-14A21-29F |
— | ||
| replacement | |||||
|
1
|
1
42310-14A21-019 STAND,PROP(BLACK)Stand, prop (black) Stand, prop (brown); Model l |
42310-14A21-019 |
US $506.88 |
||
|
1
|
1
42310-14A21-34S
Stand, prop (blue)
Stand, prop (blue); Model l |
42310-14A21-34S |
— | ||
| replacement | |||||
|
1
|
1
42310-14A21-019 STAND,PROP(BLACK)Stand, prop (black) Stand, prop (blue); Model l |
42310-14A21-019 |
US $506.88 |
||
|
1
|
1
42310-14A21-28W
Stand, prop (white)
Stand, prop (white); Model m |
42310-14A21-28W |
— | ||
|
1
|
1
42310-14A21-0NF
Stand, prop (blue)
Model m |
42310-14A21-0NF |
— | ||
| replacement | |||||
|
1
|
1
42310-14A21-019 STAND,PROP(BLACK)Stand, prop (black) Model m |
42310-14A21-019 |
US $506.88 |
||
|
2
|
2
09443-14030-000
Spring
|
09443-14030-000 |
— | ||
| replacement | |||||
|
2
|
2
09443-14030-XC0 SPRING |
09443-14030-XC0 |
from US $5.85 |
||
|
3
|
3
09443-22003-000 SPRING |
09443-22003-000 |
from US $5.85 |
||
|
4
|
4
09111-10047-000 BOLT(10X30) |
09111-10047-000 |
from US $1.76 |
||
|
5
|
5
08310-22107-000
Nut 10mm rh
Model l |
08310-22107-000 |
— | ||
| replacement | |||||
|
5
|
5
08310-00107-000 NUTModel l |
08310-00107-000 |
from US $0.80 |
||
|
5
|
5
08310-22105-000
Nut, tie rod rh thread
Model m |
08310-22105-000 |
— | ||
| replacement | |||||
|
5
|
5
09140-10043-000 NUTNut, tie rod rh thread Model m |
09140-10043-000 |
from US $0.91 |
||
|
6
|
6
43110-14130-000 PEDAL,BRAKEPedal, brake; |
43110-14130-000 |
from US $7.95 |
||
|
7
|
7
43120-12D00-000 ARM,BRAKE PEDALArm, pedal |
43120-12D00-000 |
from US $42.32 |
||
|
8
|
8
09200-06038-000 PIN |
09200-06038-000 |
from US $3.25 |
||
|
9
|
9
09444-11004-000
Spring
|
09444-11004-000 |
— | ||
| replacement | |||||
|
9
|
9
09444-11005-000 SPRING |
09444-11005-000 |
from US $4.34 |
||
|
10
|
10
09180-06137-000
SPACER(9.2X9X6.5)
|
09180-06137-000 |
— | ||
|
11
|
11
04111-20158-000
20 x 15 cotter
Cotter pin; |
04111-20158-000 |
— | ||
| replacement | |||||
|
11
|
11
04111-2015A-000 PINCotter pin; |
04111-2015A-000 |
from US $0.76 |
||
|
12
|
12
09443-10033-000 SPRINGSpring,return Spring, return; |
09443-10033-000 |
from US $5.17 |
||
|
13
|
13
09160-17021-000
Washer
|
09160-17021-000 |
— | ||
| replacement | |||||
|
13
|
13
09160-17501-XC0 WASHER(17.5X34X2) |
09160-17501-XC0 |
from US $1.92 |
||
|
14
|
14
04111-30308-000
30 x 30 cotter
Cotter pin; |
04111-30308-000 |
— | ||
| replacement | |||||
|
14
|
14
04111-3030A-000 PINCotter pin; |
04111-3030A-000 |
from US $0.76 |
||
