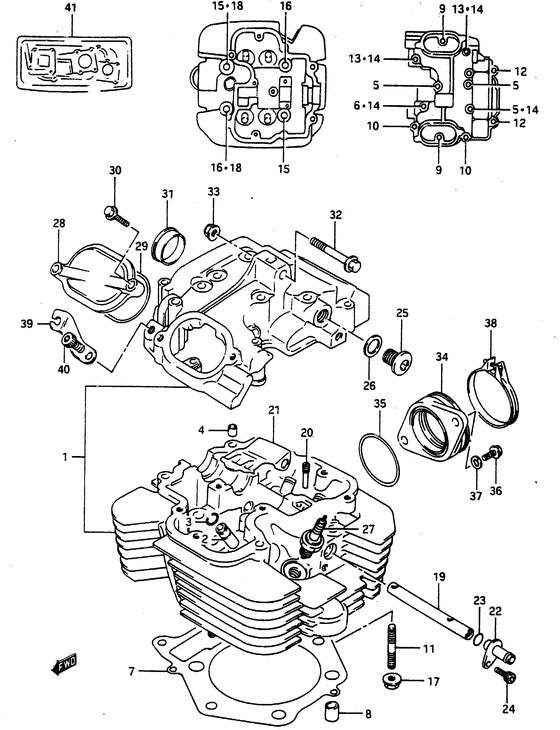

Cylinder head Diagram Suzuki DR650 DR650R
- Year
- 1990
- Model code
- DR650RUL(L) L
- Engine Capacity
- 650
- Model
- DR650R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-12D00-000
Head,cylinder
|
11100-12D00-000 |
— | ||
|
1
|
1
11100-12D10-000
Head assy, cylinder
E18 |
11100-12D10-000 |
— | ||
|
2
|
2
11115-37470-000 GUIDE,VALVE |
11115-37470-000 |
from US $19.20 |
||
|
3
|
3
09381-10003-000 RING,SNAPRing, valve guide Ring, valve guide; |
09381-10003-000 |
from US $1.76 |
||
|
4
|
4
09206-08001-000 PIN(8X11)Pin; |
09206-08001-000 |
from US $1.06 |
||
|
5
|
5
01517-06605-000
Bolt
|
01517-06605-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-0660A-000 Bolt |
01550-0660A-000 |
from US $0.96 |
||
|
6
|
6
09103-06040-000
Bolt cyl head c
Bolt (6x55); |
09103-06040-000 |
— | ||
| replacement | |||||
|
6
|
6
09103-06040-XC0
BOLT(6X55)
Bolt (6x55); |
09103-06040-XC0 |
— | ||
|
7
|
7
11141-12D00-000 GASKET,CYLINDER HEADGasket, cylinder head |
11141-12D00-000 |
from US $63.38 |
||
|
8
|
8
09206-13001-000
Pin
|
09206-13001-000 |
— | ||
| replacement | |||||
|
8
|
8
04211-13189-000 PIN |
04211-13189-000 |
from US $1.19 |
||
|
9
|
9
01517-06257-000
Bolt
|
01517-06257-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-06257-000 BOLT |
01550-06257-000 |
from US $0.96 |
||
|
10
|
10
01517-06404-000
Bolt
|
01517-06404-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0640B-000 Bolt |
01550-0640B-000 |
from US $0.96 |
||
|
10
|
10
01550-0640A-000 BoltBolt (l:40) |
01550-0640A-000 |
from US $3.83 |
||
|
11
|
11
09108-08161-000
Stud bolt (8x33)
|
09108-08161-000 |
— | ||
| replacement | |||||
|
11
|
11
09108-08220-000 BOLT,STUD |
09108-08220-000 |
from US $5.08 |
||
|
12
|
12
09103-06085-000 BOLT(6X130)Bolt (6x130); |
09103-06085-000 |
from US $6.26 |
||
|
13
|
13
01517-06605-000
Bolt
|
01517-06605-000 |
— | ||
| replacement | |||||
|
13
|
13
01550-0660A-000 Bolt |
01550-0660A-000 |
from US $0.96 |
||
|
14
|
14
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Washer; |
09168-06023-000 |
from US $1.51 |
||
|
15
|
15
09103-10179-000 BOLT(10X190)Bolt (10x190); |
09103-10179-000 |
from US $8.21 |
||
|
16
|
16
09103-10181-000 BOLT(10X215)Bolt (10x215) Bolt (10x215); |
09103-10181-000 |
US $118.90 |
||
|
17
|
17
08316-16085-000
Nut
|
08316-16085-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
18
|
18
09168-10017-000 GASKET(10.5X22X2) |
09168-10017-000 |
from US $1.76 |
||
|
19
|
19
11131-12D00-000 PIPE,CYLINDER HEAD OILPipe, head oil |
11131-12D00-000 |
US $9.57 |
||
|
20
|
20
09134-06012-000
Screw,l:19.5
|
09134-06012-000 |
— | ||
|
21
|
21
11135-12D00-000 PLATE,CYLINDER HEAD CHAMBERPlate, head chamber |
11135-12D00-000 |
US $3.24 |
||
|
22
|
22
11190-12D00-000
Union comp,cyli
|
11190-12D00-000 |
— | ||
| replacements | |||||
|
22
|
22
11143-06B00-000 O RING,HEAD GASKET |
11143-06B00-000 |
from US $3.80 |
||
|
22
|
22
07130-0616B-000 BOLT |
07130-0616B-000 |
from US $0.91 |
||
|
22
|
22
11190-12D01-000
Union,cylinder
|
11190-12D01-000 |
— | ||
|
22
|
22
07130-0616A-000 BOLTBolt, piston jet valve |
07130-0616A-000 |
from US $0.96 |
||
|
22
|
22
07110-06165-000
Bolt
|
07110-06165-000 |
— | ||
|
23
|
23
09230-10009-000
O ring
|
09230-10009-000 |
— | ||
|
24
|
24
07110-06105-000
Bolt
|
07110-06105-000 |
— | ||
| replacement | |||||
|
24
|
24
07130-0610B-000 Bolt |
07130-0610B-000 |
from US $0.96 |
||
|
25
|
25
09248-14010-000 PLUG |
09248-14010-000 |
from US $3.74 |
||
|
26
|
26
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket; |
09168-14004-000 |
from US $1.22 |
||
|
27
|
27
09482-00330-000 PLUG,SPARK(DPR9EA-9)Spark plug (ngk,dpr9ea-9) Spark plug (ngk, dpr9ea-9); |
09482-00330-000 |
from US $4.98 |
||
|
27
|
27
09482-00331-111
Spark plug x27e
Spark plug (nd, x27epr-u9); |
09482-00331-111 |
— | ||
| replacement | |||||
|
27
|
27
09482-00331-000 PLUG,SPARK(X27EPR-U9)Spark plug (denso,x27epr-u9) Spark plug (nd, x27epr-u9); |
09482-00331-000 |
from US $5.63 |
||
|
27
|
27
09482-00328-000
Spark plug (ngk,dp9ea-9)
Spark plug (ngk, dp9ea-9); E34 |
09482-00328-000 |
— | ||
| replacement | |||||
|
27
|
27
09482-00330-000 PLUG,SPARK(DPR9EA-9)Spark plug (ngk,dpr9ea-9) Spark plug (ngk, dp9ea-9); E34 |
09482-00330-000 |
from US $4.98 |
||
|
27
|
27
09482-00329-111
Spark plug (nd,x27ep-u9)
Spark plug (nd, x27ep-u9); E34 |
09482-00329-111 |
— | ||
|
28
|
28
11175-12D00-000
Cap, inspection
|
11175-12D00-000 |
— | ||
| replacement | |||||
|
28
|
28
11175-12D10-000
Cap,inspection
|
11175-12D10-000 |
— | ||
|
29
|
29
09280-60004-000 O RING(D:2.4,ID:23) |
09280-60004-000 |
from US $2.89 |
||
|
30
|
30
01517-06205-000
Bolt,lower
|
01517-06205-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
30
|
30
01550-0620A-000 BOLT |
01550-0620A-000 |
from US $0.76 |
||
|
31
|
31
09241-30004-000 PLUG(OD:30)Plug, head Plug, head; |
09241-30004-000 |
from US $4.56 |
||
|
32
|
32
09103-08257-000
Bolt, rear
|
09103-08257-000 |
— | ||
| replacement | |||||
|
32
|
32
09103-08332-000 BOLT(8X53)Bolt, rear |
09103-08332-000 |
from US $6.26 |
||
|
33
|
33
08319-31085-000
Nut
|
08319-31085-000 |
— | ||
| replacement | |||||
|
33
|
33
08319-3108A-000 NUT |
08319-3108A-000 |
from US $1.67 |
||
|
34
|
34
13110-12D00-000
PIPE,INTAKE
|
13110-12D00-000 |
— | ||
|
35
|
35
09280-46002-000 O RING(D:2.4,ID:46.0) |
09280-46002-000 |
from US $14.16 |
||
|
36
|
36
07120-06205-000
Bolt, pillion
|
07120-06205-000 |
— | ||
| replacement | |||||
|
36
|
36
07120-0620B-000 BOLT |
07120-0620B-000 |
from US $0.96 |
||
|
37
|
37
08321-31064-000
Lock washer
|
08321-31064-000 |
— | ||
| replacement | |||||
|
37
|
37
08321-0106A-000 WASHER,LOCK |
08321-0106A-000 |
from US $0.76 |
||
|
38
|
38
09402-58208-000 CLAMP |
09402-58208-000 |
from US $2.29 |
||
|
39
|
39
12944-14A00-000
LEVER,DECOMP SHAFT RH
|
12944-14A00-000 |
— | ||
|
40
|
40
07110-08165-000
Bolt
|
07110-08165-000 |
— | ||
| replacement | |||||
|
40
|
40
07130-0816A-000 BOLT |
07130-0816A-000 |
from US $1.06 |
||
|
41
|
41
11400-12890-000
Gasket set
Opt |
11400-12890-000 |
— | ||
| replacement | |||||
|
41
|
41
11400-12895-000
GASKET SET
Opt |
11400-12895-000 |
— | ||
