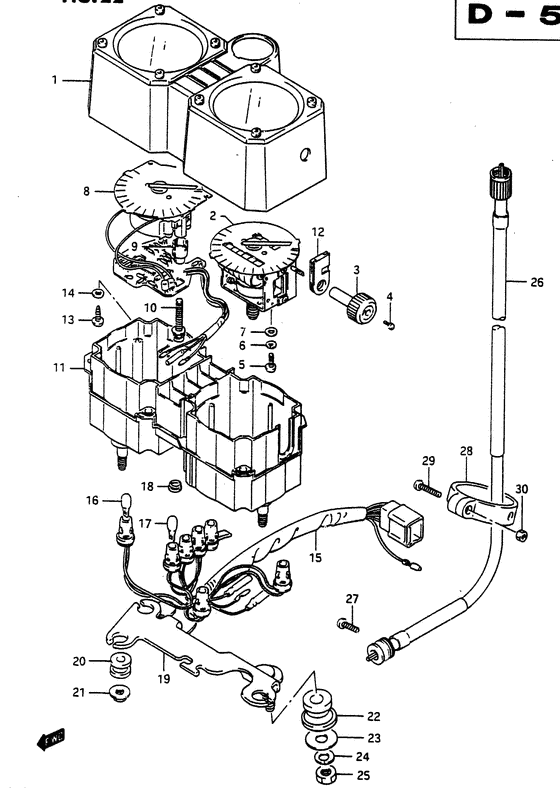

Speedometer Diagram Suzuki DR650 DR650R
- Year
- 1990
- Model code
- DR650RUL(L) L
- Engine Capacity
- 650
- Model
- DR650R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34150-44B30-000
Hood, meter
|
34150-44B30-000 |
— | ||
| replacements | |||||
|
1
|
1
34150-14D20-000
CASE ASSY
|
34150-14D20-000 |
— | ||
|
1
|
1
34150-14C10-000
HOOD,METER
|
34150-14C10-000 |
— | ||
|
2
|
2
34120-14A50-000
Speedometer (mile/kilo)
E2 |
34120-14A50-000 |
— | ||
| replacement | |||||
|
2
|
2
34120-12D00-000
Speedometer(mph
E2 |
34120-12D00-000 |
— | ||
|
3
|
3
34124-44B30-000 KNOB,TRIPKnob, speedometer Knob, trip; |
34124-44B30-000 |
from US $5.26 |
||
|
4
|
4
34184-14A00-000
Screw
|
34184-14A00-000 |
— | ||
| replacement | |||||
|
4
|
4
34184-12D00-000 SCREW,TRIP KNOBScrew, trip knob |
34184-12D00-000 |
from US $1.44 |
||
|
5
|
5
02112-03106-000
Screw
|
02112-03106-000 |
— | ||
| replacements | |||||
|
5
|
5
02112-0310A-000 SCREW |
02112-0310A-000 |
US $9.90 |
||
|
5
|
5
02112-0310B-000 SCREW |
02112-0310B-000 |
from US $3.71 |
||
|
6
|
6
08321-21036-000
Lock washer
|
08321-21036-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-2103B-000 WASHER,LOCK |
08321-2103B-000 |
from US $7.70 |
||
|
7
|
7
08322-21036-000
Washer
|
08322-21036-000 |
— | ||
| replacement | |||||
|
7
|
7
08322-0103B-000 WASHER |
08322-0103B-000 |
from US $3.86 |
||
|
8
|
8
34220-14A00-000
Tachometer
|
34220-14A00-000 |
— | ||
|
9
|
9
34187-14A00-000 SPACER |
34187-14A00-000 |
US $4.01 |
||
|
10
|
10
34283-14A00-000
Screw
|
34283-14A00-000 |
— | ||
| replacements | |||||
|
10
|
10
02112-74253-000
SCREW
|
02112-74253-000 |
— | ||
|
10
|
10
32642-80G10-000 SCREW |
32642-80G10-000 |
US $1.69 |
||
|
11
|
11
34111-14A01-000
Case, meter
|
34111-14A01-000 |
— | ||
| replacement | |||||
|
11
|
11
34111-44B10-000
CASE,METER
|
34111-44B10-000 |
— | ||
|
12
|
12
34196-14A00-000 CUSHION,METERGrommet Grommet; |
34196-14A00-000 |
from US $8.02 |
||
|
13
|
13
03112-05129-000
Screw
|
03112-05129-000 |
— | ||
| replacement | |||||
|
13
|
13
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
14
|
14
08321-21057-000 Washer lockLock washer |
08321-21057-000 |
US $2.59 |
||
| replacement | |||||
|
14
|
14
08321-0105A-000 WASHER,LOCK |
08321-0105A-000 |
from US $0.76 |
||
|
15
|
15
34170-14A00-000
Socket, meter
|
34170-14A00-000 |
— | ||
|
16
|
16
09471-12100-000 BULB(12V1.7W,WB372,T7)Bulb (12v,1.7w) Bulb (12v, 3w); |
09471-12100-000 |
from US $6.61 |
||
|
17
|
17
09471-12085-000 BULB(12V3W,WB371,T7)Bulb (12v,3.4w) Bulb (12v, 1.7w); |
09471-12085-000 |
US $8.01 |
||
|
18
|
18
34194-14A00-000
CAP
|
34194-14A00-000 |
— | ||
|
19
|
19
34950-14A00-000
Reflector, front side
|
34950-14A00-000 |
— | ||
| replacements | |||||
|
19
|
19
09160-10097-000 WASHER(10.5X22X2.5) |
09160-10097-000 |
from US $3.57 |
||
|
19
|
19
34950-14C00-000
BRACKET ASSY,METER
|
34950-14C00-000 |
— | ||
|
20
|
20
34996-43410-000 CUSHION,METER |
34996-43410-000 |
from US $1.60 |
||
|
21
|
21
34185-14A00-000 Nut |
34185-14A00-000 |
US $1.87 |
||
| replacements | |||||
|
21
|
21
09160-05037-000 WASHER(5.5X16X1.2) |
09160-05037-000 |
from US $0.91 |
||
|
21
|
21
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.80 |
||
|
21
|
21
08310-00053-000
Nut
|
08310-00053-000 |
— | ||
|
22
|
22
34956-31001-000 CUSHION,METER BRACKET |
34956-31001-000 |
from US $5.28 |
||
|
23
|
23
09160-08057-000 Washer ex support |
09160-08057-000 |
US $2.71 |
||
| replacement | |||||
|
23
|
23
09160-08135-000 WASHER(8.5X28X1.6)Washer, exhaust support |
09160-08135-000 |
from US $0.95 |
||
|
24
|
24
08321-21084-000
Lock washer
|
08321-21084-000 |
— | ||
| replacements | |||||
|
24
|
24
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
24
|
24
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
25
|
25
08310-12085-000
Nut
|
08310-12085-000 |
— | ||
| replacements | |||||
|
25
|
25
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
25
|
25
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
26
|
26
34910-14A11-000
Cable assy, speedometer
|
34910-14A11-000 |
— | ||
| replacements | |||||
|
26
|
26
34910-29E20-000
CABLE ASSY,SPEEDOMETER
|
34910-29E20-000 |
— | ||
|
26
|
26
34910-29E21-000 Cable Assy,speedometer |
34910-29E21-000 |
US $58.14 |
||
|
27
|
27
02112-05168-000
Screw
|
02112-05168-000 |
— | ||
| replacement | |||||
|
27
|
27
02112-05167-000 SCREW |
02112-05167-000 |
from US $0.76 |
||
|
28
|
28
34938-44B01-14L
Clamp, meter cable
For 3ub |
34938-44B01-14L |
— | ||
|
28
|
28
34938-44B01-30H
Clamp,speedo ca
For 3ua |
34938-44B01-30H |
— | ||
| replacement | |||||
|
28
|
28
34938-44B01-019
New Genuine Part
For 3ua |
34938-44B01-019 |
— | ||
|
29
|
29
02112-05257-000 SCREW |
02112-05257-000 |
from US $0.77 |
||
|
30
|
30
08310-11058-000
Nut
|
08310-11058-000 |
— | ||
| replacement | |||||
|
30
|
30
08310-00057-000 NUT |
08310-00057-000 |
from US $0.76 |
||
