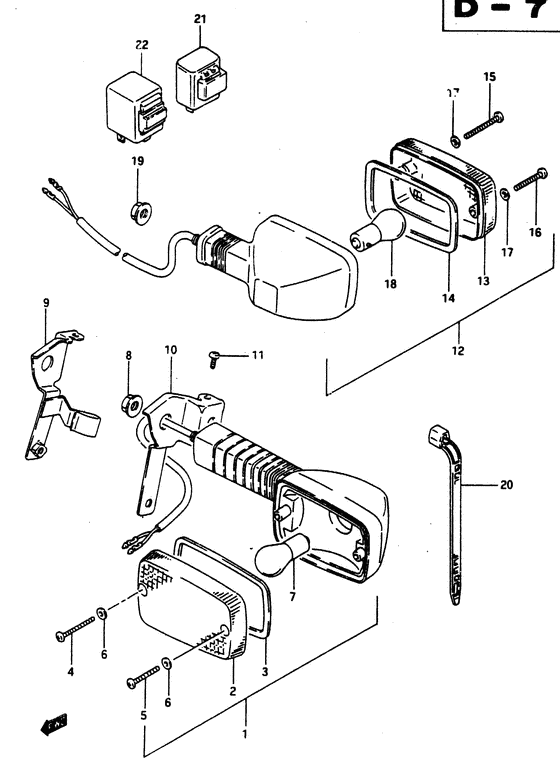

Turn signal lamp Diagram Suzuki DR650 DR650R
- Year
- 1990
- Model code
- DR650RUL(L) L
- Engine Capacity
- 650
- Model
- DR650R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35601-14A53-999
Lamp assy, front turn signal
|
35601-14A53-999 |
— | ||
| replacement | |||||
|
1
|
1
35603-44A31-999
LAMP ASSY,RR TURNSIGNAL
|
35603-44A31-999 |
— | ||
|
1
|
1
35601-14A23-999
Lamp assy, front turn signal
E4, e24 |
35601-14A23-999 |
— | ||
| replacement | |||||
|
1
|
1
35603-06B30-999 LAMP ASSY,RR TURNSIGNALE4, e24 |
35603-06B30-999 |
from US $81.24 |
||
|
2
|
2
35612-02181-000 LENS,FR |
35612-02181-000 |
from US $7.25 |
||
|
3
|
3
35613-48700-000 GASKET |
35613-48700-000 |
from US $2.91 |
||
|
4
|
4
35623-02180-000
Screw
Screw (4x38); |
35623-02180-000 |
— | ||
|
5
|
5
03211-04308-000
Screw
|
03211-04308-000 |
— | ||
| replacement | |||||
|
5
|
5
03211-04306-000 SCREW |
03211-04306-000 |
from US $2.82 |
||
|
6
|
6
35627-43010-000 GASKETGasket Gasket; |
35627-43010-000 |
from US $1.68 |
||
|
7
|
7
09471-12045-000 BULB(12V21W)Bulb (12v, 21w); |
09471-12045-000 |
from US $2.54 |
||
|
7
|
7
09471-12006-000 BULB(12V23W,STANLEY,A4577A)Bulb (12v,23w) Bulb (12v, 23w); E4, e24 |
09471-12006-000 |
from US $6.36 |
||
|
8
|
8
08316-26105-000
Nut
|
08316-26105-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-2010B-000 NUT |
08316-2010B-000 |
from US $0.76 |
||
|
9
|
9
35670-14A00-000
Bracket fr sign
|
35670-14A00-000 |
— | ||
|
10
|
10
35680-14A00-000
Bracket fr sign
|
35680-14A00-000 |
— | ||
|
11
|
11
02112-35106-000
Screw
|
02112-35106-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-3510B-000 SCREW |
02112-3510B-000 |
from US $0.76 |
||
|
12
|
12
35603-14A22-999
Lamp assy,rr tu
|
35603-14A22-999 |
— | ||
| replacement | |||||
|
12
|
12
35603-44A51-999
LAMP ASSY,RR TURNSIGNAL
|
35603-44A51-999 |
— | ||
|
12
|
12
35603-14A52-000
Lamp assy, rear turn signal
E15, e16, e18, e22, e39 |
35603-14A52-000 |
— | ||
| replacement | |||||
|
12
|
12
35603-44A21-000
Lamp assy,rear turn signal
E15, e16, e18, e22, e39 |
35603-44A21-000 |
— | ||
|
13
|
13
35652-02181-000 LENS,RR |
35652-02181-000 |
from US $7.25 |
||
|
14
|
14
35613-48700-000 GASKET |
35613-48700-000 |
from US $2.91 |
||
|
15
|
15
35623-02180-000
Screw
Screw (4x38); |
35623-02180-000 |
— | ||
|
16
|
16
03211-04308-000
Screw
|
03211-04308-000 |
— | ||
| replacement | |||||
|
16
|
16
03211-04306-000 SCREW |
03211-04306-000 |
from US $2.82 |
||
|
17
|
17
35627-43010-000 GASKETGasket Gasket; |
35627-43010-000 |
from US $1.68 |
||
|
18
|
18
09471-12045-000 BULB(12V21W)Bulb (12v, 21w); |
09471-12045-000 |
from US $2.54 |
||
|
18
|
18
09471-12006-000 BULB(12V23W,STANLEY,A4577A)Bulb (12v,23w) Bulb (12v, 23w); E4, e24 |
09471-12006-000 |
from US $6.36 |
||
|
19
|
19
08316-26105-000
Nut
|
08316-26105-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-2010B-000 NUT |
08316-2010B-000 |
from US $0.76 |
||
|
20
|
20
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
21
|
21
38610-31310-000 Relay, turn signal |
38610-31310-000 |
US $68.55 |
||
| replacement | |||||
|
21
|
21
38610-31X50-000 RELAY ASSY,TURNSIGNALRelay assy, turn signal |
38610-31X50-000 |
from US $26.40 |
||
|
22
|
22
38610-45091-000
Relay, turn signal
E22 |
38610-45091-000 |
— | ||
| replacements | |||||
|
22
|
22
38610-06F00-000
RELAY ASSY,TURNSIGNAL
E22 |
38610-06F00-000 |
— | ||
|
22
|
22
38610-06F01-000 Relay Assy,turnsignal LampE22 |
38610-06F01-000 |
from US $51.15 |
||
