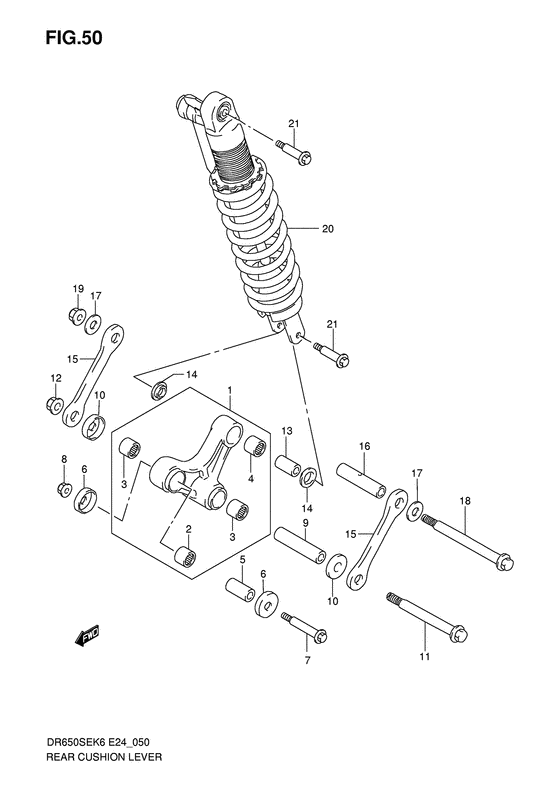

Rear cushion lever Diagram Suzuki DR650 DR650SE
- Year
- 2008
- Model code
- DR650SEK8(E24) K8
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62600-32840-000 LEVER SET,RR CUSHIONLever set, rear cushion |
62600-32840-000 |
US $288.88 |
||
|
2
|
2
09263-20073-000
BEARING(20X27X30)
Bearing, front (20x27x30); |
09263-20073-000 |
— | ||
| replacement | |||||
|
2
|
2
09263-20121-000 BearingBearing, front (20x27x30); |
09263-20121-000 |
from US $14.90 |
||
|
3
|
3
09263-21012-000 BEARING(21X27X20)Bearing (21x27x20) Bearing (21x27x20); |
09263-21012-000 |
from US $11.55 |
||
|
4
|
4
09263-17027-000 BEARING(17X24X20)Bearing, center (17x24x20) Bearing, rear (17x24x20); |
09263-17027-000 |
from US $10.80 |
||
|
5
|
5
62317-27C10-000 SPACER,RR CUSHION LEVER FRSpacer, front Spacer, front (12x20x34); |
62317-27C10-000 |
from US $10.38 |
||
|
6
|
6
62162-28E00-000
SEAL,RR CUSHION LEVER FR DUST
Seal, front dust; |
62162-28E00-000 |
— | ||
| replacement | |||||
|
6
|
6
62162-28E01-000 Seal,dustSeal, front dust; |
62162-28E01-000 |
from US $5.60 |
||
|
7
|
7
62658-01C60-000 BOLT,RR CUSHION LEVER FRBolt, front Bolt, front (12x65); |
62658-01C60-000 |
from US $6.40 |
||
|
8
|
8
08319-31128-000
Nut 12mm
Nut; Model k6 |
08319-31128-000 |
— | ||
| replacement | |||||
|
8
|
8
08319-3112A-000 NUTNut; Model k6 |
08319-3112A-000 |
from US $1.98 |
||
|
8
|
8
08319-3112A-000 NUTModel k7/k8/k9/l0 |
08319-3112A-000 |
from US $1.98 |
||
|
9
|
9
62626-13E00-000 SPACER,RR CUSHION LEVER CTRSpacer, center (15x21x74) Spacer, center (15x21x74); |
62626-13E00-000 |
from US $9.88 |
||
|
10
|
10
62682-13E00-000 SEAL,RR CUSHION LEVER CTRSeal, center dust |
62682-13E00-000 |
from US $5.17 |
||
|
11
|
11
62621-27C20-000 BOLT,RR CUSHION LEVER CTRBolt, center (14x109) Bolt, center (14x109); |
62621-27C20-000 |
from US $22.82 |
||
|
12
|
12
08319-3114A-000 NUT |
08319-3114A-000 |
from US $6.08 |
||
|
13
|
13
62684-40A10-000 SPACER,RR CUSHION LEVERSpacer, front (10x17x30) Spacer, rear (10x17x30); |
62684-40A10-000 |
from US $6.84 |
||
|
14
|
14
62624-13E00-000 SEAL,RR CUSHION LEVER RR DUSTSeal, rear dust; |
62624-13E00-000 |
from US $5.92 |
||
|
15
|
15
62641-32E00-000 ROD,RR CUSHION LEVERRod, rear cushion lever |
62641-32E00-000 |
from US $30.54 |
||
|
16
|
16
62626-14D00-000 SPACER,RR CUSHION LEVER CTRSpacer, center Spacer, rod (14x20x74); |
62626-14D00-000 |
from US $15.46 |
||
|
17
|
17
08211-14321-000 WASHERWasher; |
08211-14321-000 |
from US $1.52 |
||
|
18
|
18
62621-17C00-000 SHAFT,RR CUSHION LEVER FRBolt, rod (14x112) Bolt, rod (14x112); |
62621-17C00-000 |
from US $10.82 |
||
|
19
|
19
08319-3114A-000 NUT |
08319-3114A-000 |
from US $6.08 |
||
|
20
|
20
62100-32E01-YKS
ABSORBER ASSY,RR SHOCK
Absorber assy, rear shock (red); Model k6 for yu1 |
62100-32E01-YKS |
— | ||
|
20
|
20
62100-32E01-28W
ABSORBER ASSY,RR SHOCK
Absorber assy, rear shock (white); Model k6 for n9j, model k7/k8/k9/l0 |
62100-32E01-28W |
— | ||
| replacement | |||||
|
20
|
20
62100-32E02-28W Absorber Assy,rr ShockAbsorber assy, rear shock (white); Model k6 for n9j, model k7/k8/k9/l0 |
62100-32E02-28W |
US $1,017.28 |
||
|
21
|
21
62648-14500-000 BOLT,RR CUSHION ROD UPRBolt,shock absorber Bolt (10x48); |
62648-14500-000 |
from US $6.56 |
||
