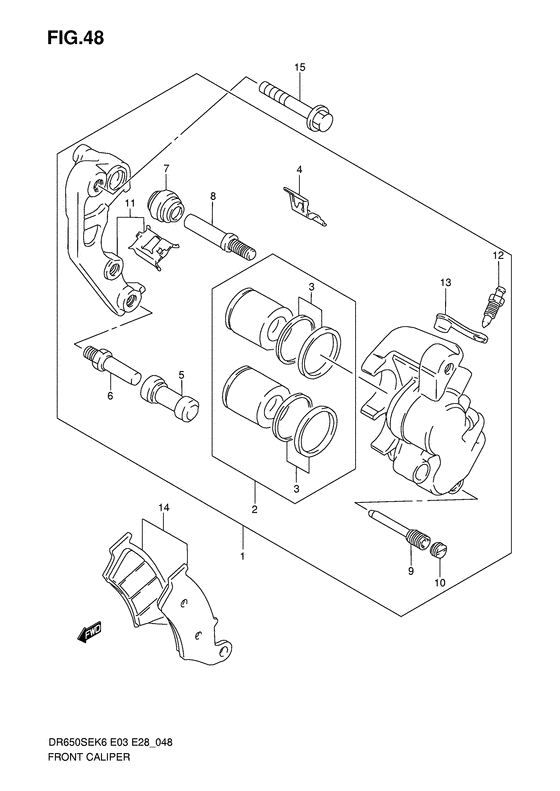

Front caliper Diagram Suzuki DR650 DR650SE
- Year
- 2008
- Model code
- DR650SEK8(E3/E28) K8
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
59300-13E01-999 CALIPER ASSY,FR,L |
59300-13E01-999 |
from US $249.60 |
||
2
|
2
59300-27840-000 PISTON SET |
59300-27840-000 |
from US $53.15 |
||
3
|
3
59300-13820-000 SEAL SET,PISTON |
59300-13820-000 |
from US $17.55 |
||
4
|
4
59315-13E00-000 SPRING,PAD |
59315-13E00-000 |
from US $5.32 |
||
5
|
5
59386-13A00-000 BOOT |
59386-13A00-000 |
from US $3.65 |
||
6
|
6
59382-27C30-000 BoltBolt Pin; |
59382-27C30-000 |
from US $2.89 |
||
7
|
7
59303-14500-000 BOOTBoot; |
59303-14500-000 |
from US $2.89 |
||
8
|
8
59305-27C00-000 PINPin; |
59305-27C00-000 |
from US $8.21 |
||
9
|
9
59345-13E00-000 PIN,HANGER |
59345-13E00-000 |
from US $7.36 |
||
10
|
10
59146-21E10-000 PLUG,PINPlug, pin |
59146-21E10-000 |
from US $3.65 |
||
11
|
11
59350-13E00-000 BRACKET |
59350-13E00-000 |
from US $68.45 |
||
12
|
12
59121-01A00-000 BLEEDER |
59121-01A00-000 |
US $10.66 |
||
13
|
13
59122-01A00-000 CAP,BLEEDER |
59122-01A00-000 |
from US $1.76 |
||
14
|
14
59300-13830-000 PAD SET |
59300-13830-000 |
from US $53.17 |
||
15
|
15
09103-08338-000 BOLT(8X40)Bolt (8x40) Bolt (8x41); |
09103-08338-000 |
from US $4.22 |
