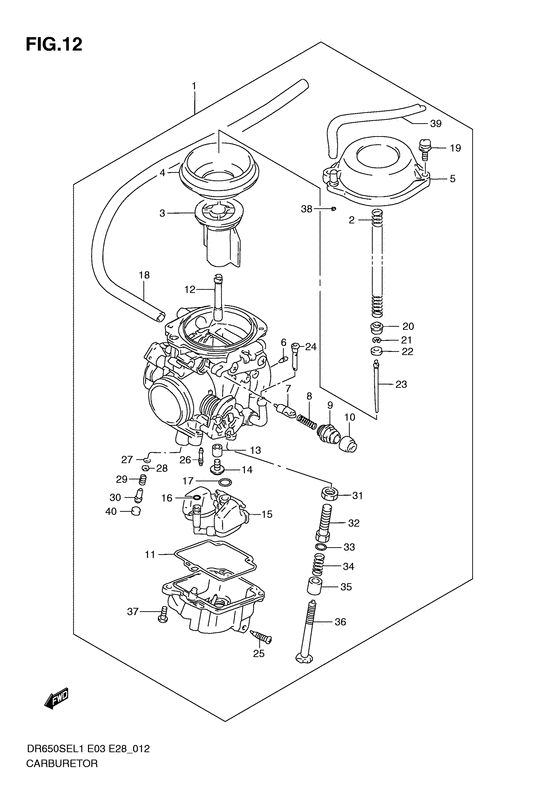

Carburetor (Dr650sel1 e28) Diagram Suzuki DR650 DR650SE
- Year
- 2011
- Model code
- DR650SEL1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13200-32E12-000 CARBURETOR ASSY |
13200-32E12-000 |
US $1,104.72 |
||
|
2
|
2
13417-17D00-000 SPRING |
13417-17D00-000 |
from US $5.32 |
||
|
3
|
3
13501-32E00-000 VALVE,PISTON |
13501-32E00-000 |
from US $43.79 |
||
|
4
|
4
13507-07D01-000
DIAPHRAGM
|
13507-07D01-000 |
— | ||
| replacement | |||||
|
4
|
4
13507-07D02-000 Diaphragm |
13507-07D02-000 |
from US $32.80 |
||
|
5
|
5
13502-41C00-000 COVER,DIAPHRAGMCover, diaphragm |
13502-41C00-000 |
from US $24.29 |
||
|
6
|
6
09493-20007-000 JET,AIR(1.0)Jet, pilot air (1.0) Jet, pilot air (1.0); |
09493-20007-000 |
from US $6.66 |
||
|
7
|
7
13411-12D00-000 PLUNGERPlunger assy Plunger assy; |
13411-12D00-000 |
from US $13.14 |
||
|
8
|
8
13417-22010-000 SPRINGSpring |
13417-22010-000 |
from US $1.92 |
||
|
9
|
9
13418-43410-000 HOLDER,GUIDEHolder, guide Holder, guide; |
13418-43410-000 |
from US $8.36 |
||
|
10
|
10
13681-04010-000
CAP
Cap; |
13681-04010-000 |
— | ||
| replacement | |||||
|
10
|
10
13681-04011-000 CAPCap; |
13681-04011-000 |
US $7.89 |
||
|
11
|
11
13258-44B00-000 GASKET,FLOAT CAHMBERGasket, float chamber; |
13258-44B00-000 |
from US $6.23 |
||
|
12
|
12
09494-00884-000 JET,NEEDLE(Y-5M)Jet, needle (y-5m) Jet, needle (y-5m); |
09494-00884-000 |
from US $25.58 |
||
|
13
|
13
13331-07D00-000 RING |
13331-07D00-000 |
from US $9.03 |
||
|
14
|
14
09491-28010-000 JET,MAIN(140)Jet, main (140) Jet, main (140); |
09491-28010-000 |
from US $6.38 |
||
|
15
|
15
13250-12EH0-000 FLOAT/NEEDLE VALVE ASSYFloat/needle valve assy |
13250-12EH0-000 |
from US $51.10 |
||
|
16
|
16
13374-46710-000 O RINGO ring |
13374-46710-000 |
from US $2.72 |
||
|
17
|
17
13374-35C00-000 O RING,NEEDLE VALVE SEATO ring |
13374-35C00-000 |
from US $2.58 |
||
|
18
|
18
13683-32E00-000 HOSE(6.5X10.5X275)Hose (6.5x10.5x275) Hose (6.5x10.5x275); |
13683-32E00-000 |
from US $9.02 |
||
|
19
|
19
02112-7516B-000 SCREW |
02112-7516B-000 |
from US $0.96 |
||
|
20
|
20
13331-12D00-000 RINGRing; |
13331-12D00-000 |
from US $2.46 |
||
|
21
|
21
13394-31210-000 CLIP,NEEDLEE ring; |
13394-31210-000 |
from US $2.24 |
||
|
22
|
22
13387-07D00-000 RING |
13387-07D00-000 |
from US $4.75 |
||
|
23
|
23
13383-32E10-000 NEEDLE,JET(6F23-1)Needle, jet (6f23-1); |
13383-32E10-000 |
US $21.15 |
||
|
24
|
24
13236-12C00-000 FILTER |
13236-12C00-000 |
from US $7.84 |
||
|
25
|
25
13247-13A00-000 SCREW,DRAINScrew, drain; |
13247-13A00-000 |
from US $2.99 |
||
| replacement | |||||
|
25
|
25
13247-02340-000 PLUG,DRAINScrew, drain; |
13247-02340-000 |
from US $2.43 |
||
|
26
|
26
09492-42010-000 JET,PILOT(42.5)Jet, pilot (42.5); |
09492-42010-000 |
from US $6.69 |
||
|
27
|
27
13295-29900-000
O RING,PILOT AIR SCREW
|
13295-29900-000 |
— | ||
| replacement | |||||
|
27
|
27
13295-29901-000 O-Ring, Pilot Air Screw |
13295-29901-000 |
from US $1.98 |
||
|
28
|
28
13291-29900-000 WASHERGasket Washer; |
13291-29900-000 |
from US $1.51 |
||
|
29
|
29
13268-47070-000 SPRING |
13268-47070-000 |
from US $2.82 |
||
|
30
|
30
13279-47070-000 SCREW,PILOTScrew, pilot (2 7/8) Screw, pilot (1,1/2); |
13279-47070-000 |
from US $9.15 |
||
|
31
|
31
13607-37010-000 NUT |
13607-37010-000 |
from US $1.69 |
||
|
32
|
32
13267-31D00-000 ADJUSTER |
13267-31D00-000 |
from US $16.08 |
||
|
33
|
33
13615-43010-000 WASHER,STARTER SHAFT |
13615-43010-000 |
from US $1.60 |
||
|
34
|
34
13271-33C00-000 SPRING |
13271-33C00-000 |
from US $2.24 |
||
|
35
|
35
13432-95210-000 RING |
13432-95210-000 |
from US $4.96 |
||
|
36
|
36
13267-31D10-000 ADJUSTER |
13267-31D10-000 |
from US $8.72 |
||
|
37
|
37
13601-05148-XC0 SCREW(5X14) |
13601-05148-XC0 |
from US $1.98 |
||
|
38
|
38
13278-02340-000 O RINGO ring |
13278-02340-000 |
from US $1.52 |
||
|
39
|
39
09355-45855-600
HOSE(4.5X8.5X600)
Hose (4.5x8.5x600); |
09355-45855-600 |
— | ||
| replacement | |||||
|
39
|
39
09355-45001-600 Hose(4.5X8.5X600)Hose (4.5x8.5x600); |
09355-45001-600 |
from US $10.79 |
||
|
40
|
40
13281-05A00-000 PLUG |
13281-05A00-000 |
from US $1.60 |
||
