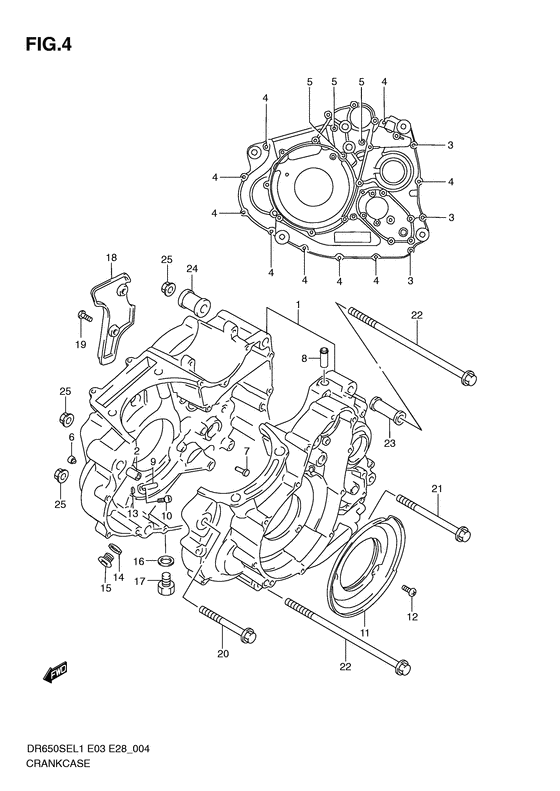

Crankcase Diagram Suzuki DR650 DR650SE
- Year
- 2011
- Model code
- DR650SEL1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11300-32881-000 CRANKCASE SET |
11300-32881-000 |
from US $911.68 |
||
|
2
|
2
09202-10006-000 PINPin, idle gear no.2 (l:27) |
09202-10006-000 |
US $49.70 |
||
|
3
|
3
09103-06261-000 BOLT(6X60)Bolt (l:60) Bolt (6x60); |
09103-06261-000 |
from US $1.38 |
||
|
4
|
4
09103-06215-000 BOLT(6X40)Bolt (6x40) Bolt (6x40); |
09103-06215-000 |
from US $1.22 |
||
|
5
|
5
01547-0680A-000 BOLTBolt (6x80) |
01547-0680A-000 |
from US $4.49 |
||
|
6
|
6
11180-43410-000 JET,OIL GALLERYJet, oil gallery Jet, oil gallery; |
11180-43410-000 |
from US $7.04 |
||
|
7
|
7
09223-04001-000 RIVETPin Rivet; |
09223-04001-000 |
from US $2.30 |
||
|
8
|
8
09364-12001-000 UNION |
09364-12001-000 |
from US $2.66 |
||
|
9
|
9
11390-04F00-000 JET,PISTON COOLINGJet, piston cooling |
11390-04F00-000 |
from US $10.34 |
||
|
10
|
10
09106-06075-000 BOLT(6X12)Bolt (6x12); |
09106-06075-000 |
from US $2.99 |
||
|
11
|
11
11323-32E00-000 SEPARATOR,CRANKCASE OILSeparator, oil breather Separator, oil breather; |
11323-32E00-000 |
from US $6.84 |
||
|
12
|
12
02112-0612A-000 SCREWScrew; |
02112-0612A-000 |
from US $0.76 |
||
|
13
|
13
09280-04004-000 O RING(D:1.2,ID:4)O ring, oil gallery jet O ring (d:1.2,id:4); |
09280-04004-000 |
from US $1.82 |
||
|
14
|
14
09168-14002-000
GASKET(13.8X18.8X4.8)
Gasket (13.8x18.8x4.8); |
09168-14002-000 |
— | ||
| replacement | |||||
|
14
|
14
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket (13.8x18.8x4.8); |
09168-14004-000 |
from US $1.22 |
||
|
15
|
15
09248-14012-000
PLUG(14X12)
|
09248-14012-000 |
— | ||
| replacements | |||||
|
15
|
15
09248-14005-000
PLUG(14X12)
|
09248-14005-000 |
— | ||
|
15
|
15
09248-14011-000 PLUG |
09248-14011-000 |
from US $2.13 |
||
|
16
|
16
09168-14002-000
GASKET(13.8X18.8X4.8)
Gasket (13.8x18.8x4.8); |
09168-14002-000 |
— | ||
| replacement | |||||
|
16
|
16
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket (13.8x18.8x4.8); |
09168-14004-000 |
from US $1.22 |
||
|
17
|
17
09247-14026-000 PLUG(14X12)Plug, drain |
09247-14026-000 |
from US $2.72 |
||
|
18
|
18
11317-32E00-000 COVER,BREATHERCover, breather |
11317-32E00-000 |
from US $6.59 |
||
|
19
|
19
02112-0612A-000 SCREWScrew; |
02112-0612A-000 |
from US $0.76 |
||
|
20
|
20
09103-10110-000 BOLT(10X100)Bolt, lh outer (10x100) Bolt (10x100); |
09103-10110-000 |
from US $3.95 |
||
|
21
|
21
09103-10237-000 BOLT(10X130)Bolt (10x130) Bolt (10x130); |
09103-10237-000 |
from US $4.42 |
||
|
22
|
22
09103-10239-000 BOLT(10X235)Bolt (10x235) Bolt (10x235); |
09103-10239-000 |
from US $9.42 |
||
|
23
|
23
11610-45410-000 SPACER,ENGINE MOUNT(L:65)Spacer (l:65) Spacer (l:65); |
11610-45410-000 |
from US $8.16 |
||
|
24
|
24
11610-20C00-000 SPACER,ENGINE MOUNT(L27)Spacer (l:27) Spacer (l:27); |
11610-20C00-000 |
from US $8.64 |
||
|
25
|
25
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
