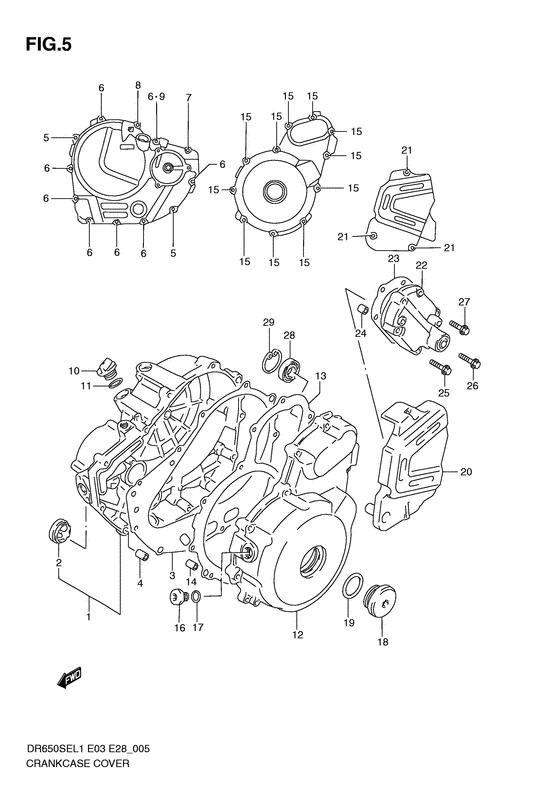

Crankcase cover Diagram Suzuki DR650 DR650SE
- Year
- 2011
- Model code
- DR650SEL1(E3/E28) L1
- Sales region
- USA/ Canada
- Engine Capacity
- 650
- Model
- DR650SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11340-32E00-000 Cover,clutchCover, clutch |
11340-32E00-000 |
from US $193.20 |
||
|
2
|
2
11971-33210-000 LENS,OIL LEVEL CHECKLens, oil check Lens, oil level; |
11971-33210-000 |
from US $11.97 |
||
|
3
|
3
11482-32E00-000 GASKET,CLUTCH COVERGasket, clutch cover |
11482-32E00-000 |
from US $13.98 |
||
|
4
|
4
04211-09149-000 PINDowel pin |
04211-09149-000 |
from US $0.91 |
||
|
5
|
5
09103-06224-000 BOLT(6X45)Bolt (6x45); |
09103-06224-000 |
from US $4.11 |
||
|
6
|
6
09103-06214-000 BOLT(6X35)Bolt (6x35) Bolt (6x35); |
09103-06214-000 |
from US $1.08 |
||
|
7
|
7
09103-06213-000 BOLT(6X30)Bolt (6x30); |
09103-06213-000 |
from US $0.91 |
||
|
8
|
8
09103-06212-000 BOLT(6X25)Bolt (6x25); |
09103-06212-000 |
from US $0.91 |
||
|
9
|
9
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Gasket (5.8x13x1.2); |
09168-06023-000 |
from US $1.51 |
||
|
10
|
10
09259-20019-000 PLUG |
09259-20019-000 |
from US $6.56 |
||
|
11
|
11
09280-17003-000 O RING(D:3.1,ID:16.8)O ring, oil filler cap O ring (d:3.1,id:16.8); |
09280-17003-000 |
from US $1.51 |
||
|
12
|
12
11351-32E01-000 COVER,MAGNETOCover, magneto |
11351-32E01-000 |
from US $146.68 |
||
|
13
|
13
11483-32E00-000 GASKET,MAGNETO COVERGasket |
11483-32E00-000 |
from US $10.34 |
||
|
14
|
14
04211-09149-000 PINDowel pin |
04211-09149-000 |
from US $0.91 |
||
|
15
|
15
09103-06213-000 BOLT(6X30)Bolt (6x30); |
09103-06213-000 |
from US $0.91 |
||
|
16
|
16
09248-14012-000
PLUG(14X12)
|
09248-14012-000 |
— | ||
| replacements | |||||
|
16
|
16
09248-14005-000
PLUG(14X12)
|
09248-14005-000 |
— | ||
|
16
|
16
09248-14011-000 PLUG |
09248-14011-000 |
from US $2.13 |
||
|
17
|
17
09168-14002-000
GASKET(13.8X18.8X4.8)
Gasket (13.8x18.8x4.8); |
09168-14002-000 |
— | ||
| replacement | |||||
|
17
|
17
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket (13.8x18.8x4.8); |
09168-14004-000 |
from US $1.22 |
||
|
18
|
18
09259-36016-20H PLUG(SILVER)Plug (silver); |
09259-36016-20H |
from US $7.30 |
||
|
19
|
19
09280-33004-000 O RING(D:3.1,ID:32.7)O ring (d:3.1,id:32.7); |
09280-33004-000 |
from US $1.67 |
||
|
20
|
20
11361-32E00-000 COVER,ENGINE SPROCKETCover, engine sprocket |
11361-32E00-000 |
from US $44.16 |
||
|
21
|
21
09103-06214-000 BOLT(6X35)Bolt (6x35) Bolt (6x35); |
09103-06214-000 |
from US $1.08 |
||
|
22
|
22
11371-12D30-000 COVER,GEAR SHIFTCover, gear shift |
11371-12D30-000 |
from US $41.58 |
||
|
23
|
23
11485-12D01-000 GASKET,GEAR SHIFT COVERGasket, gear shift cover |
11485-12D01-000 |
from US $4.56 |
||
|
24
|
24
04211-09149-000 PINDowel pin |
04211-09149-000 |
from US $0.91 |
||
|
25
|
25
01547-0635A-000 BOLTBolt; |
01547-0635A-000 |
from US $0.96 |
||
|
26
|
26
01547-0630A-000 BOLT |
01547-0630A-000 |
from US $0.96 |
||
|
27
|
27
01547-0620A-000 Bolt |
01547-0620A-000 |
from US $0.76 |
||
|
28
|
28
09262-12001-000 BEARING(12X28X8)Bearing (12x28x8); |
09262-12001-000 |
from US $10.64 |
||
|
29
|
29
08331-4128A-000
Circlip
|
08331-4128A-000 |
— | ||
| replacement | |||||
|
29
|
29
08331-41289-000 CIRCLIP |
08331-41289-000 |
from US $1.52 |
||
